Features

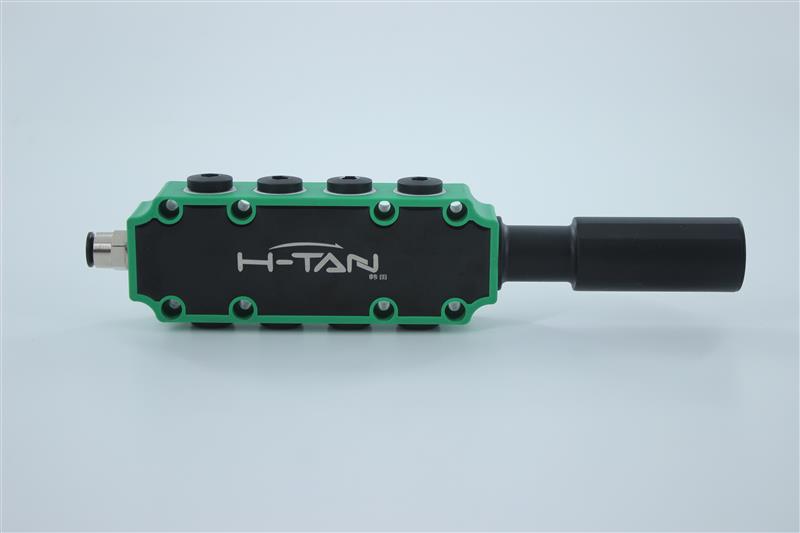

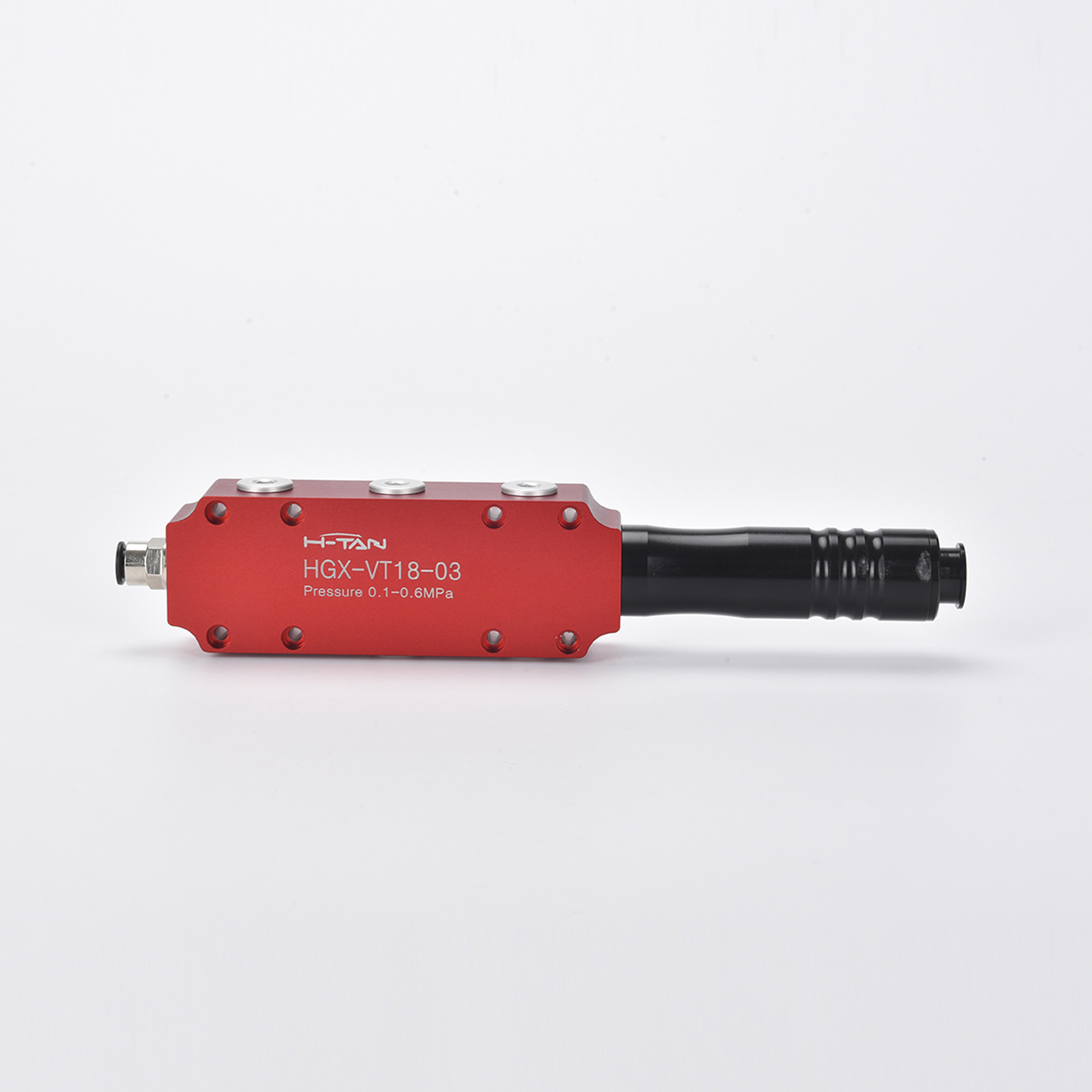

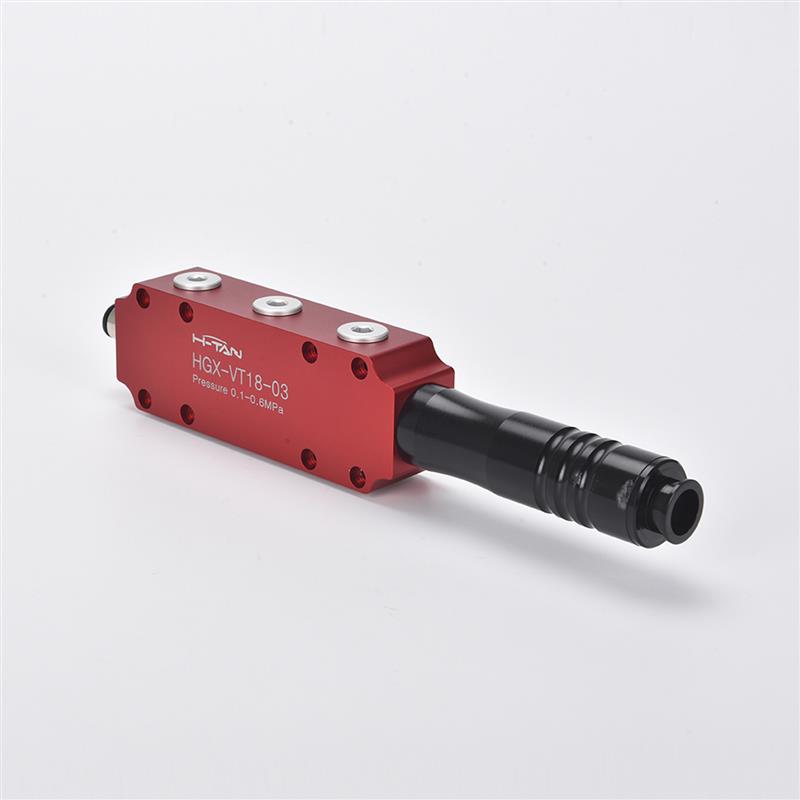

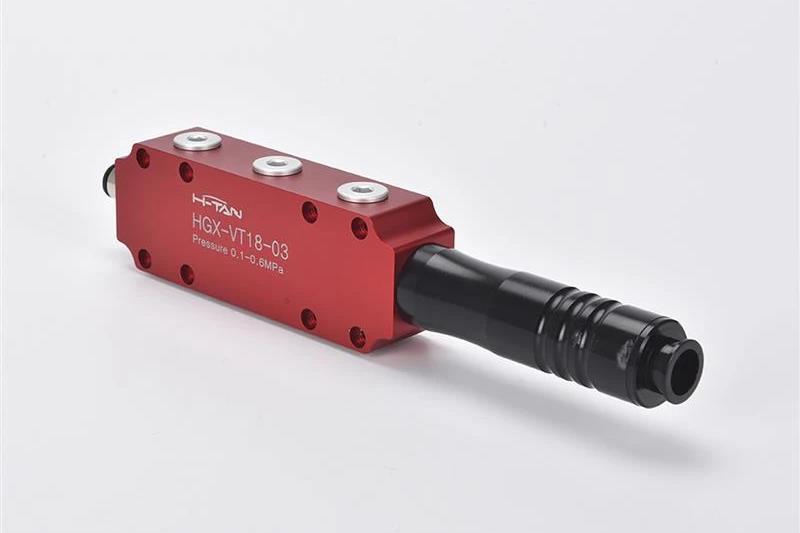

VACUUM GENERATOR
●level Fast evacuation, high vacuum, low air consumption
●Built-in vacuum cartridge
●Small size, simple structure, groove type installation structure
●There are a variety of ports specifications（06-2*G1/8,4*G1/4 08-2*G1/8,6*G1/4 10-10*G1/4)
Selection Guide
HGX SERIES MULTISTAGE VACUUM GENERATOR
HGX VT18 -2 -10 -□ -□
① ② ③ ④ ⑤ ⑥
| ①Series | ②Specification | ③Nozzle | ④Vacuum port | ⑤Non-return valve | ⑥Control device |
|
HGX |
VT18 - -94kPa | 2 - Two stage nozzle | 06 - 2×G1/8.4×G1/4 | Default - Without non-return valve A - With non-return valve |
Default - Without control device RE - RE supply control valve |
| VT19 - -90kPa | 3 - Three stage nozzle | 08 - 2×G1/8.6×G1/4 | |||
| VT20 - -85kPa | 10 - 10×G1/4 |
Technical parameters
Vacuum Generator
●Technical parameters
| Model |
Optimal |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
| HGX-VT18-2 | 4.5 | 94 | 190 | 132 |
| HGX-VT19-2 | 3.5 | 90 | 180 | 123 |
| HGX-VT20-2 | 6.0 | 85 | 200 | 105 |
| HGX-VT18-3 | 4.5 | 94 | 360 | 132 |
| HGX-VT19-3 | 3.5 | 90 | 336 | 123 |
| HGX-VT20-3 | 6.0 | 85 | 355 | 105 |

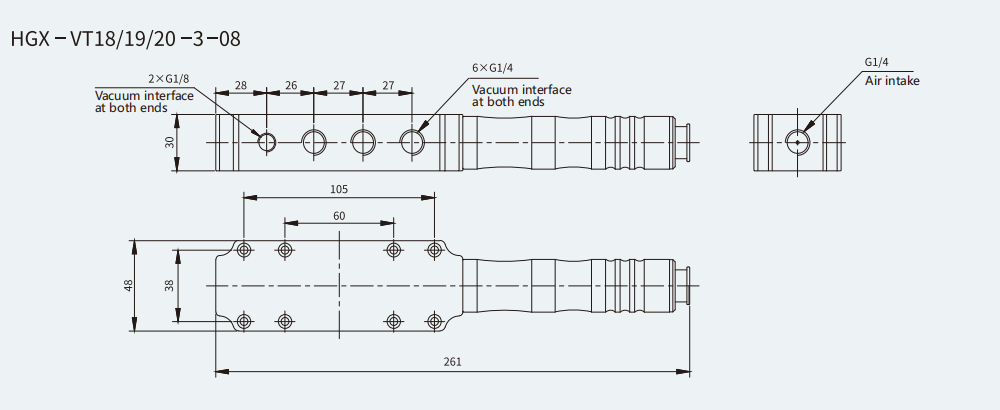

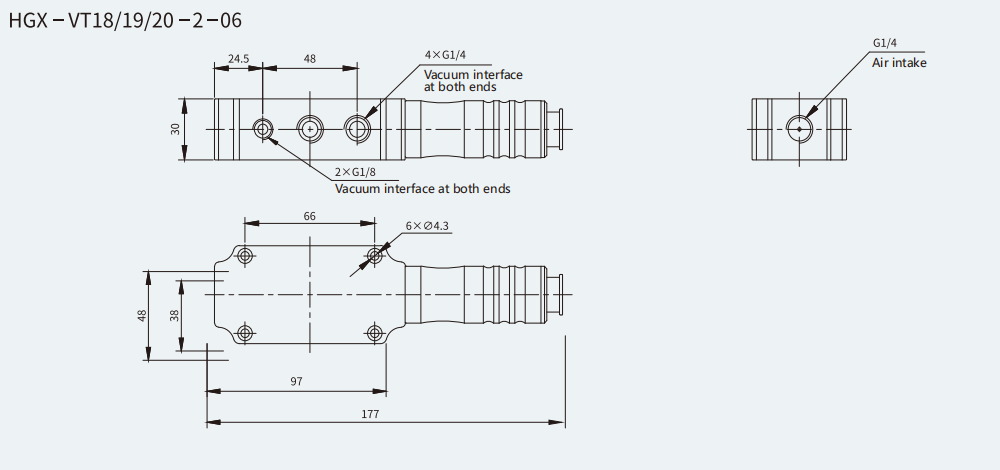

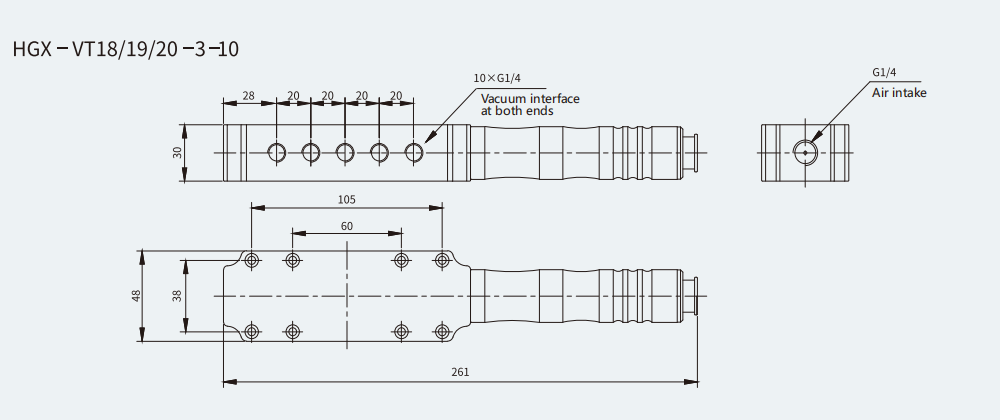

Dimensions
Vacuum Generator

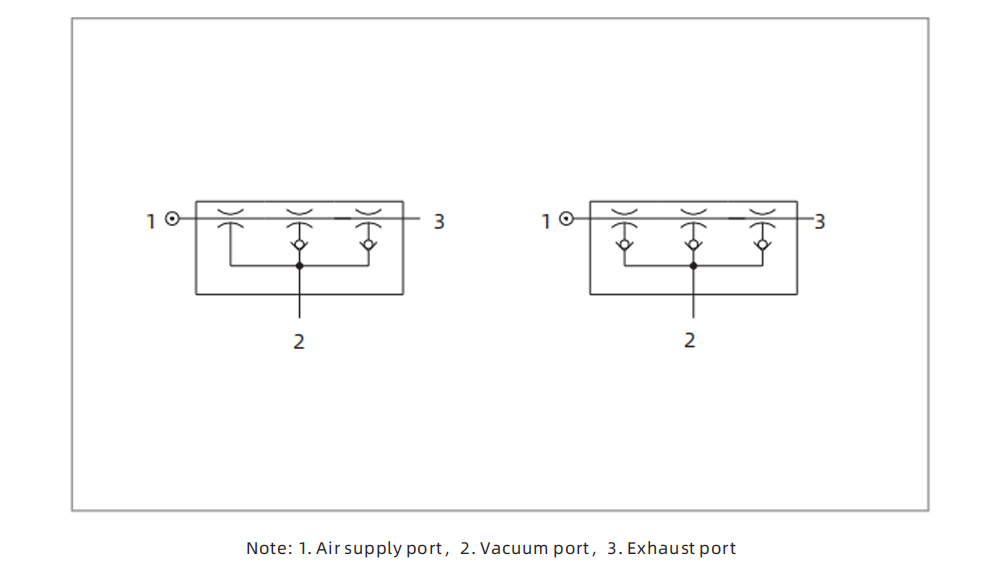

Air Circuit Schematic Diagram
Multistage Vacuum Generator
