Features

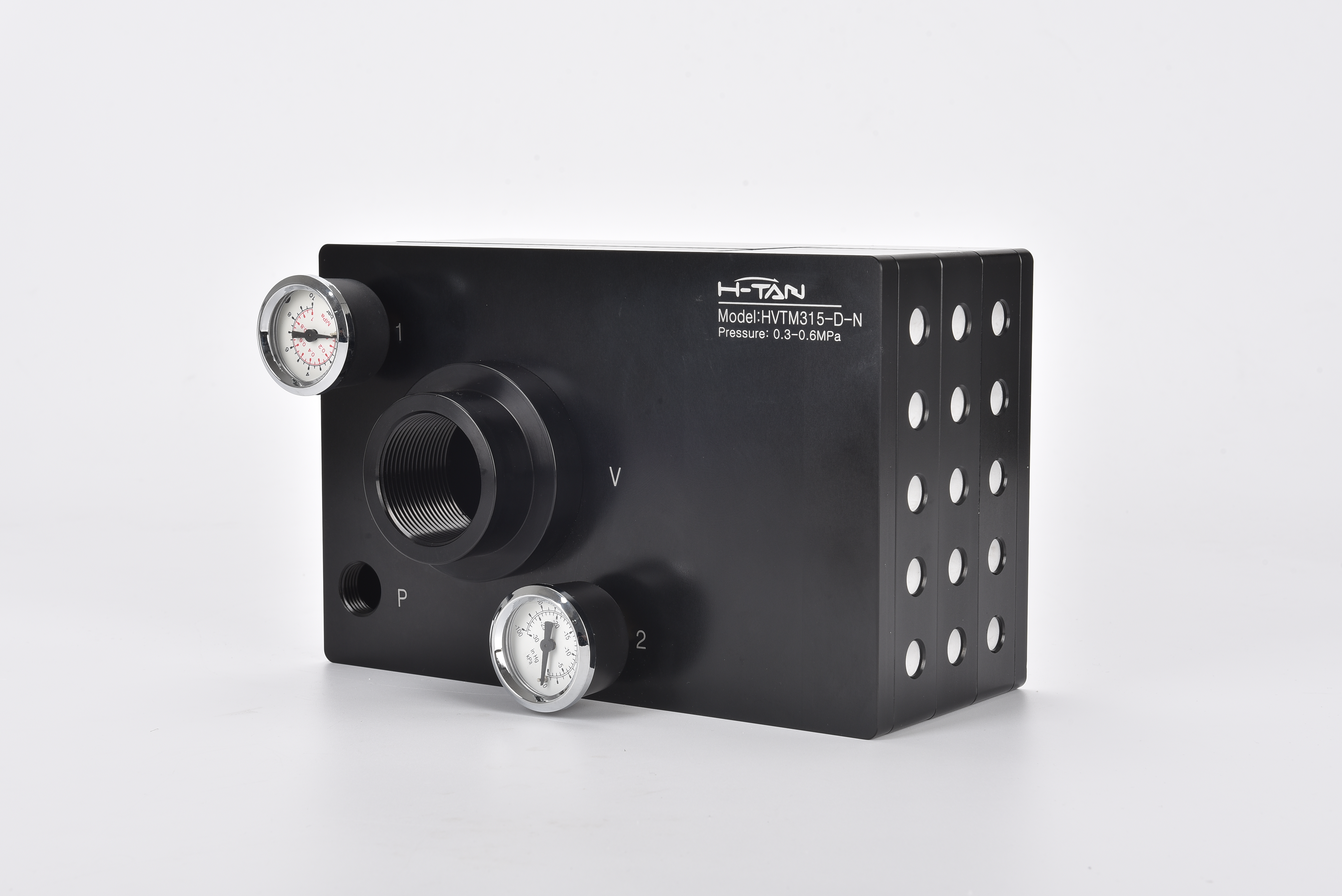

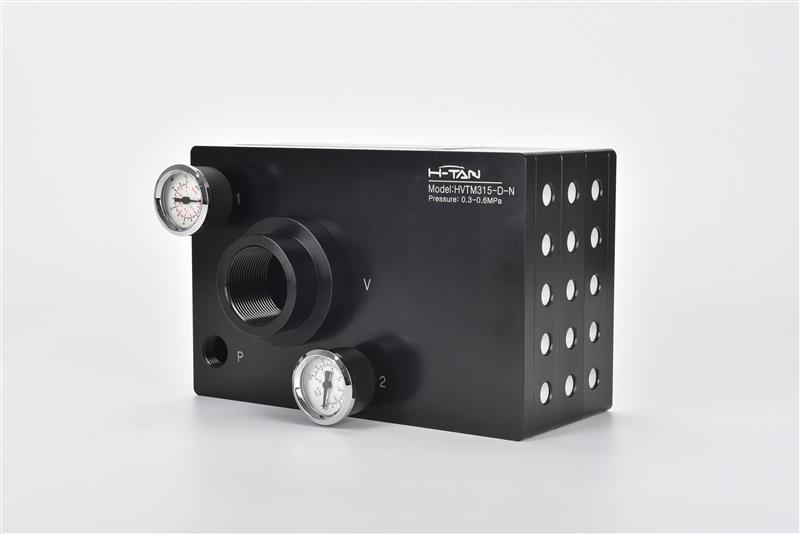

Combined Type Multistage Vacuum Generator
●Energy-efficient multistage nozzle design
●It has a very strong suction capacity
●With mounting bracket
●Built-in silencer
Selection Guide
VT SERIES MULTISTAGE VACUUM GENERATOR
HVTM 315 -04 -N -A -□
① ② ③ ④ ⑤ ⑥
| ①Series | ②Specification | ③Connection plate |
④Sealing | ⑤Non-return valve | ⑥Vacuum gauge | ||
|
HVTM-High vacuum level (-94kPa) |
310 | 04 - 311~315 | Supply port | Vacuum port | N - NBR | / - Default,without non-return valve | / - Default,Mechanical gauge |
| 311 | G1/2 | G1 1/2 | |||||
|
HVTL-Large vacuum fellow (-85kPa) |
312 | ||||||
| 313 | 06 - 311~315 | G3/4 | G1 1/2 | V - Fluorine rubber | A - With non-return valve | C - Digital display gauge | |
|
HVTS-Low air supply (-90kPa) |
314 | ||||||
| 315 | |||||||
Specific
Combined Type Multistage Vacuum Generator
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTM310 | 4.5 |
1350 | 3600 | 2185 | 1440 | 948 | 514 | 348 | 258 | 192 | 108 | 18 | 94 |
| HVTM311 | 1485 | 3960 | 2464 | 1623 | 1069 | 580 | 382.8 | 283.8 | 211.2 | 118.8 | 19.8 | ||
| HVTM312 | 1620 | 4320 | 2712 | 1786 | 1176 | 637 | 417.6 | 309.6 | 230.4 | 129.6 | 21.6 | ||
| HVTM313 | 1755 | 4680 | 2930 | 1913 | 1260 | 683 | 452.4 | 335.4 | 249.6 | 140.4 | 23.4 | ||
| HVTM314 | 1890 | 5040 | 3115 | 2050 | 1350 | 732 | 487.2 | 361.2 | 268.8 | 151.2 | 25.2 | ||
| HVTM315 | 2025 | 5400 | 3278 | 2159 | 1422 | 771 | 522 | 387 | 288 | 162 | 27 |
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTL310 | 6 | 1050 | 3550 | 2400 | 1600 | 978 | 660 | 445 | 340 | 200 | 80 | 32 | 85 |
| HVTL311 | 1155 | 3905 | 2460 | 1760 | 1094 | 738 | 500 | 374 | 220 | 88 | 35.2 | ||
| HVTL312 | 1260 | 4260 | 2880 | 1920 | 1197 | 808 | 545 | 408 | 240 | 96 | 38.4 | ||
| HVTL313 | 1365 | 4615 | 3120 | 2080 | 1292 | 872 | 588 | 442 | 260 | 104 | 41.6 | ||
| HVTL314 | 1470 | 4970 | 3360 | 2240 | 1380 | 931 | 629 | 476 | 280 | 112 | 44.8 | ||
| HVTL315 | 1575 | 5325 | 3600 | 2400 | 1468 | 991 | 669 | 510 | 300 | 120 | 48 |
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTS310 | 3.5 | 1200 | 3306 | 1950 | 1320 | 890 | 600 | 405 | 225 | 155 | 75 | - | 90 |
| HVTS311 | 1320 | 3696 | 2180 | 1470 | 990 | 670 | 450 | 247 | 170 | 82 | - | ||
| HVTS312 | 1440 | 4032 | 2390 | 1610 | 1090 | 740 | 496 | 270 | 186 | 90 | - | ||
| HVTS313 | 1560 | 4368 | 2590 | 1740 | 1180 | 780 | 540 | 292 | 201 | 97 | - | ||
| HVTS314 | 1680 | 4704 | 2760 | 1870 | 1260 | 850 | 575 | 315 | 217 | 105 | - | ||
| HVTS315 | 1800 | 5040 | 2930 | 1980 | 1340 | 900 | 610 | 337 | 232 | 112 | - |

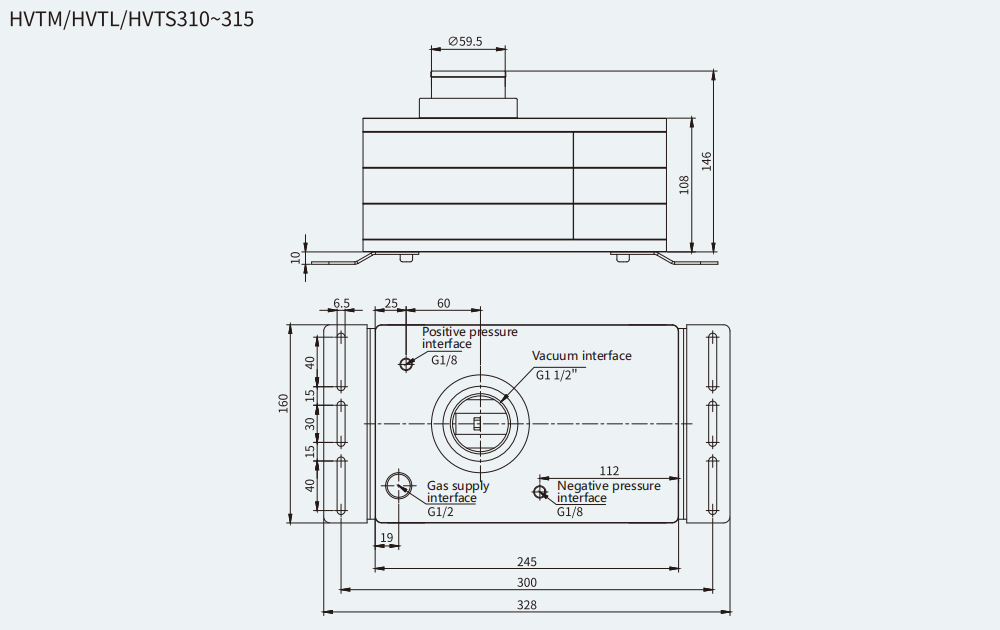

Dimensions
Combined Type Multistage Vacuum Generator
