Features
Non-contact Suction Cup
●No air goes through the workpiece
●Low vacuum level, large vacuum flow

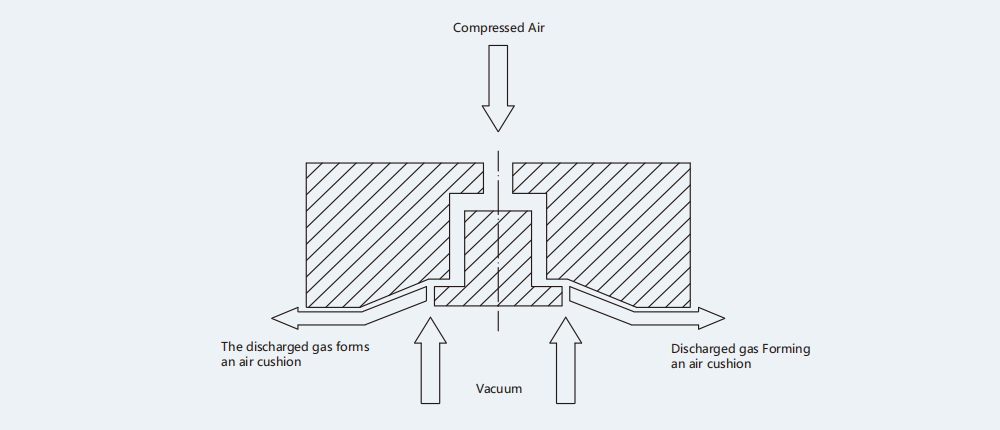

●The vacuum was created based on the Bernoulli principle
●The suction cup "floats" on the air cushion during the gripping
Selection Guide

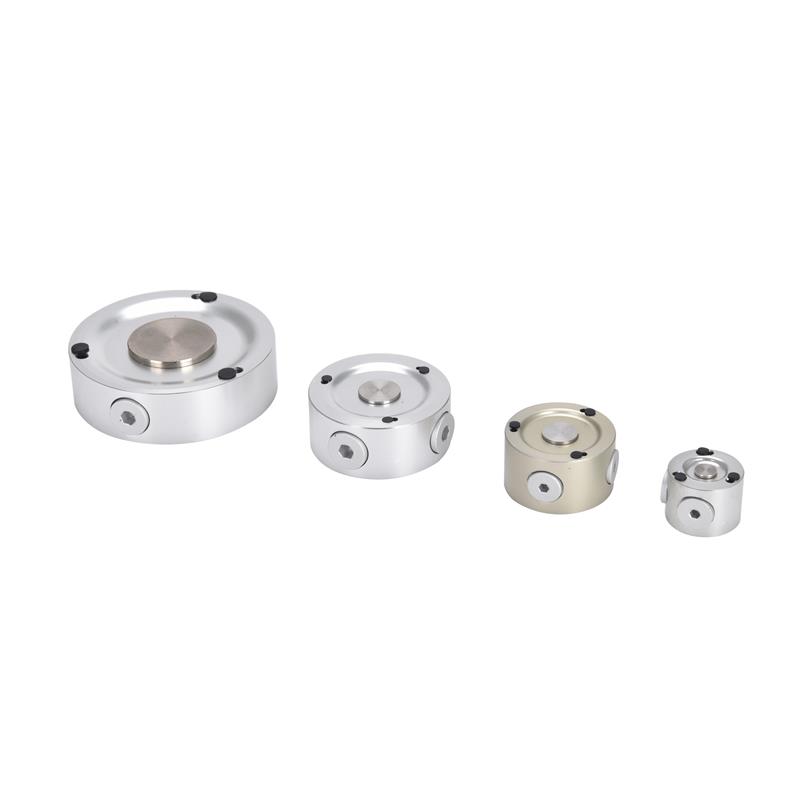

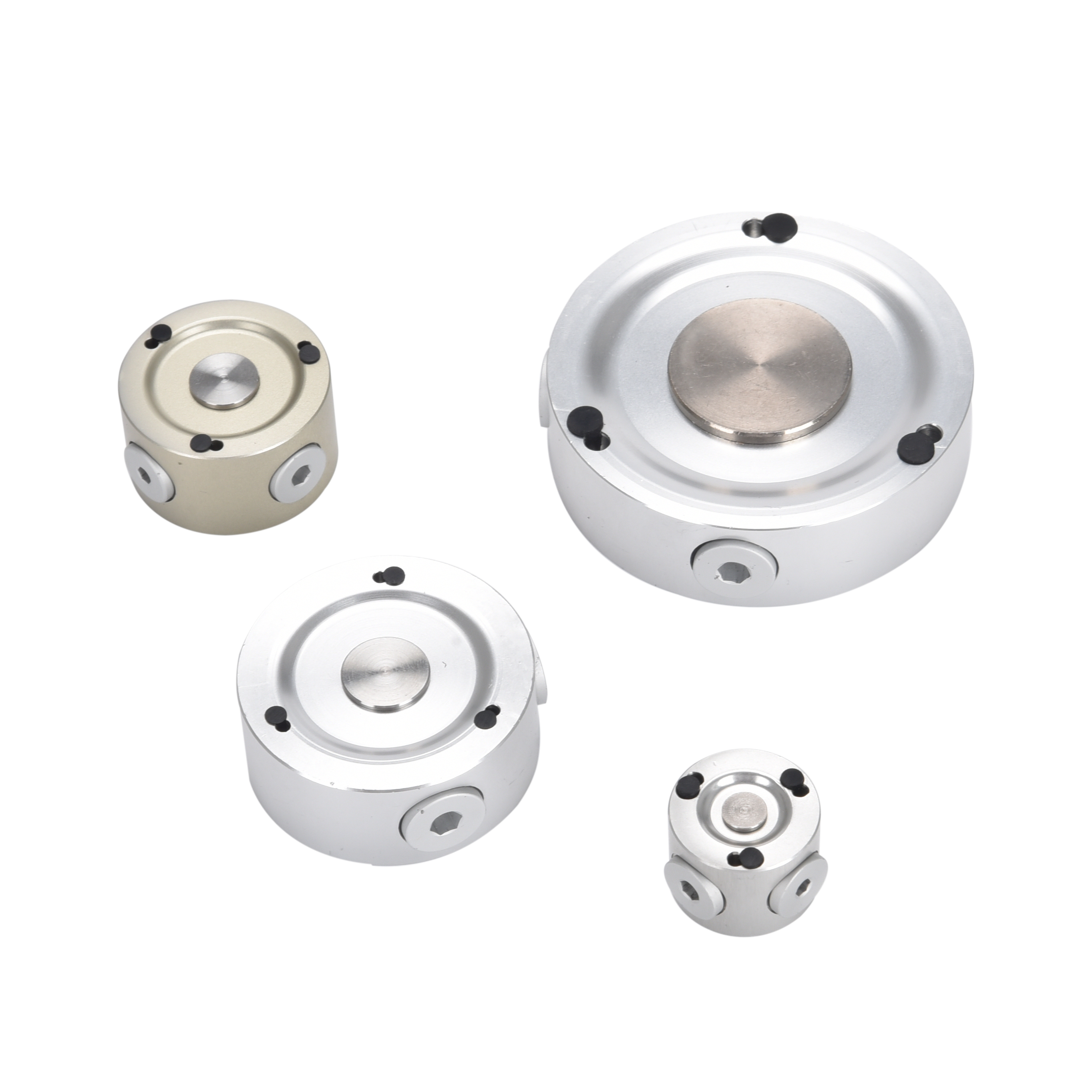

HNT Series Special Vacuum Gripper
HNT 20 -□ -S -N
① ② ③ ④ ⑤
| ① Series | ② Diameter |
③ Material | ④ Flow type | ⑤ Cushion material |
| HNT |
20 - φ20mm | / - Default,aluminum alloy | S - Standard flow | N - NBR |
| 30 - φ30mm | S - Silica gel | |||
| 40 - φ40mm | PK - PEEK | |||
| 60 - φ60mm | ||||
| 80 - φ80mm | ||||
| 100 - φ100mm | ||||
| 120 - φ120mm |
Specific
HNT Series Special Vacuum Gripper
PERFORMANCE PARAMETER
| Model | Air supply pressure bar | Pull-out force N | Air consumption NL/min | Operating temperature ℃ | Weight g |
| HNT20 | 5 | 2 | 80 | 0~60 | 16 |
| HNT30 | 3 | 100 | 29.8 | ||
| HNT40 | 6.5 | 140 | 48.4 | ||
| HNT60 | 13 | 200 | 128 | ||
| HNT80 | 26 | 260 | 246 | ||
| HNT100 | 46 | 350 | 366 | ||
| HNT120 | 89 | 420 | 510 |
※Note: The test workpiece is a non breathable rigid load, with a gas supply pressure range of 1-6 bar and vertical movement. The above pull-out force data does not include the safety factor.

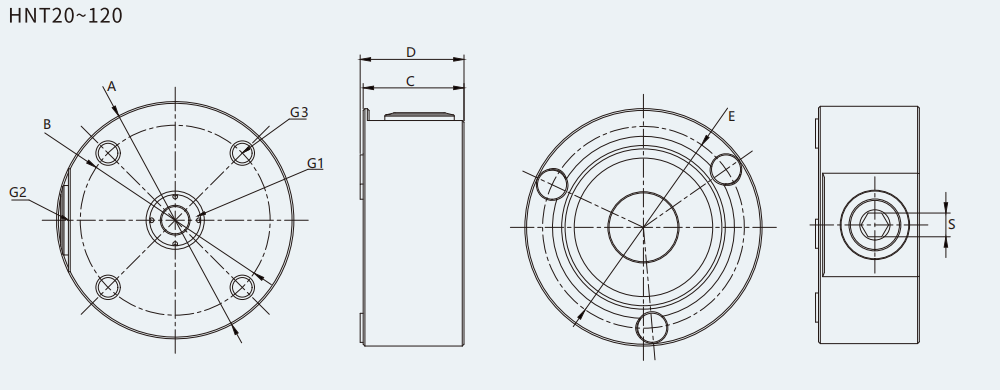

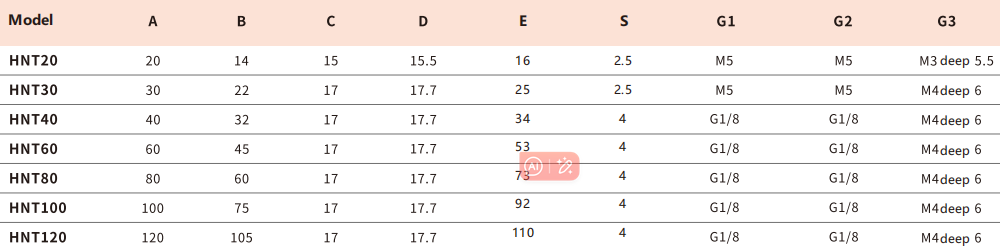

Dimensions
HNT Series Special Vacuum Gripper
