Features

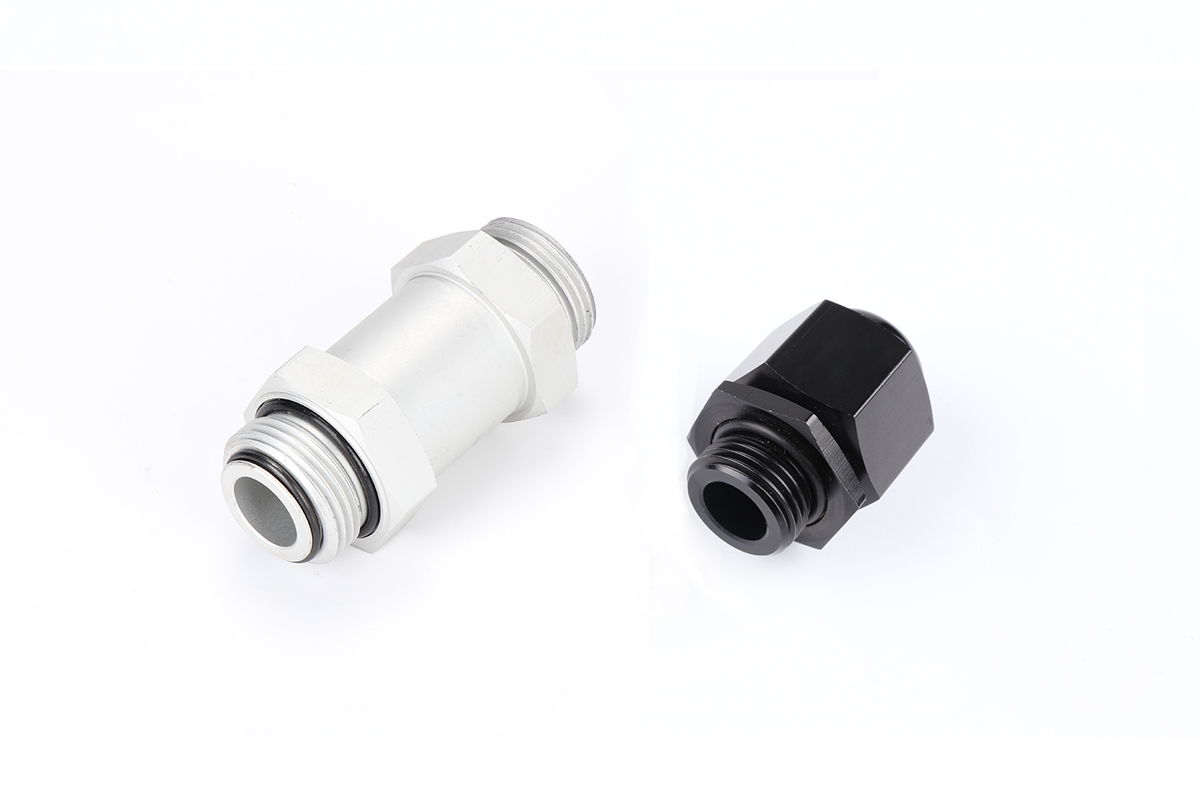

Vacuum port mounting parts Rotatable joint
●It can be used for vacuum ports
●Rotatable
●Multiple specifications
●O-ring seal
Selection Guide
Vacuum port mounting parts
JG -04M -02F -01F
① ② ③ ④
| ① Series | ② Connection specifications |
③ Connection specifications | ④ Connection specifications |
| JG |
01F - G1/8 female thread | 01M - PT1/8 male thread | / - None |
| 02F - G1/4 female thread | 02M - PT1/4 male thread | 01F - Rp1/8 female thread | |
| 03F - G3/8 female thread | 03M - PT3/8 male thread | ||
| 04F - G1/2 female thread | 04M - GPT1/2 male thread | ||
| 06M - G3/4 male thread | 06M - G3/4 male thread | ||
| 04M - G3/4 male thread | 02F - RP1/4 male thread |
Selection
| Model | Model | Model | Model |
| JG06M-06M | JM-06M-06M | JG04M-02F-01F | JG-01F-01M |
| JM-04M-04M | JG-02F-02M |

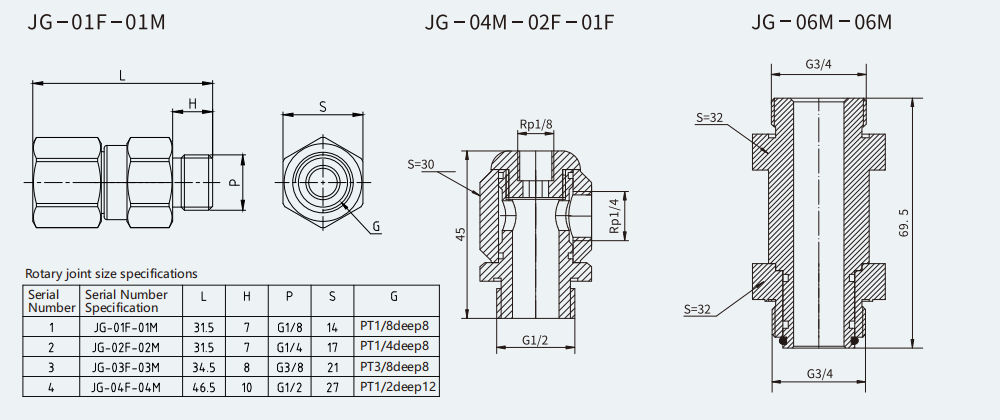

Dimensions
Vacuum port mounting parts Rotatable joint
