Features
Silencer
●The silencers which are fitted to various standard vacuum generators can be ordered separately as replacements.
●They significantly reduce noise level on all exhaust applications
Selection Guide
RS Series Vacuum Silencer
RS 02 -P
① ② ③
| ① Series | ② Connection specifications | ③ Material |
| RS |
02 - G1/4 male thread |
P - Default,plastic |
| 03 - G3/8 male thread | / - Aluminum | |
| 04 - G1/2 male thread | ||
| 06 - G3/4 male thread | ||
| 10 - G1 male thread |
Selection
Model/ Material
| Model | Material | Model | Material |
| RS02-P | Plastic | RS04 | Aluminum |
| RS03-P | Plastic | RS06 | Aluminum |
| RS04-P | Plastic | RS10 | Aluminum |
| RS06-P | Plastic | / | / |
| RS10-P | Plastic | / | / |

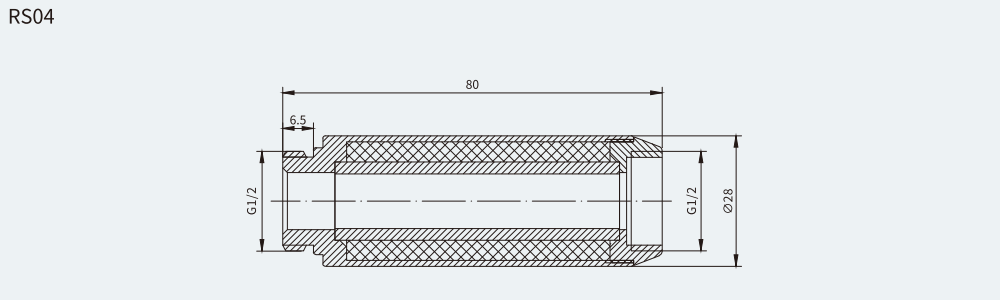

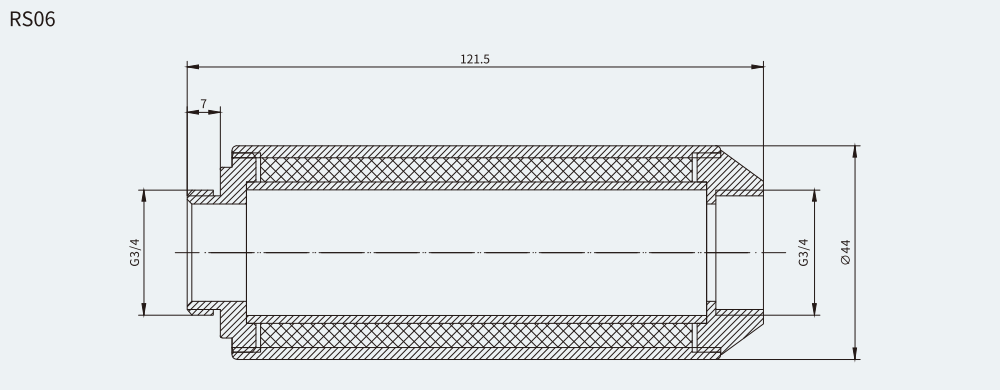

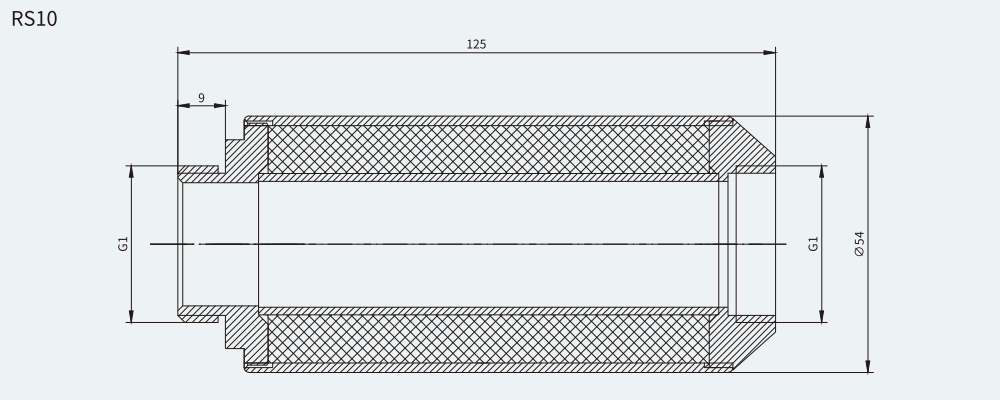

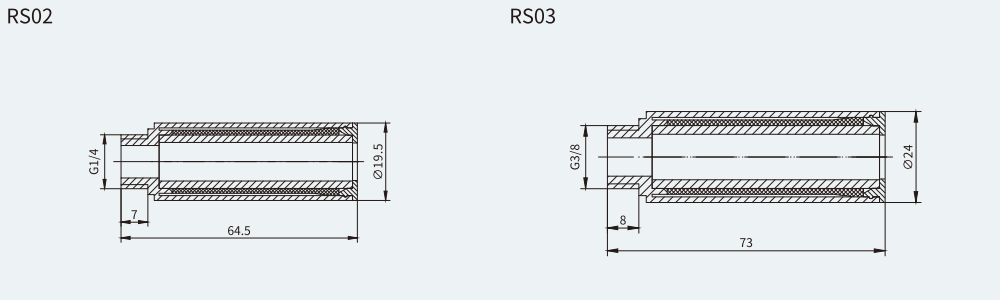

Dimensions
Silencer
