Features

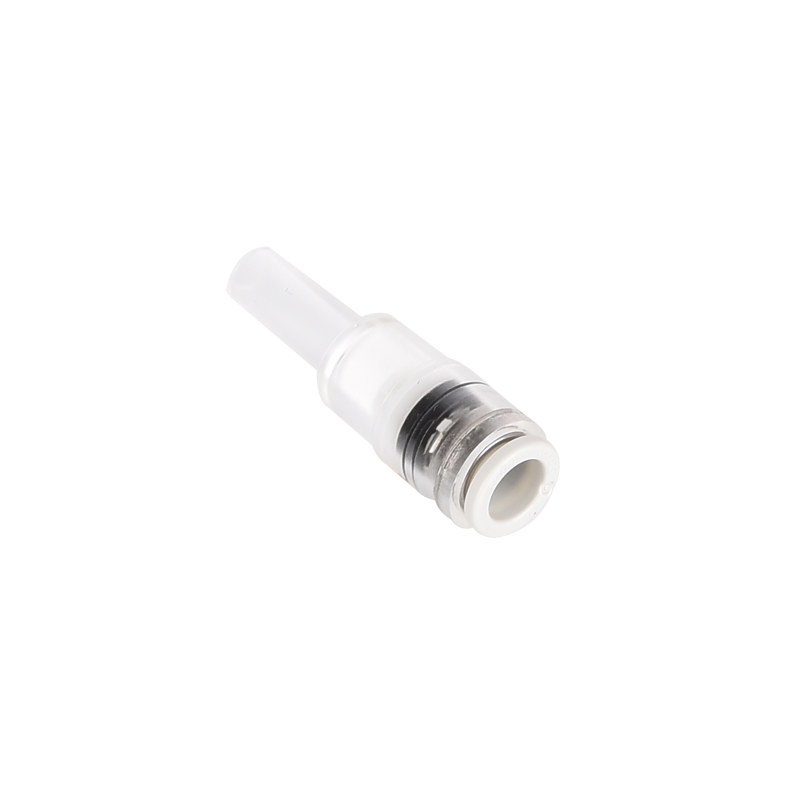

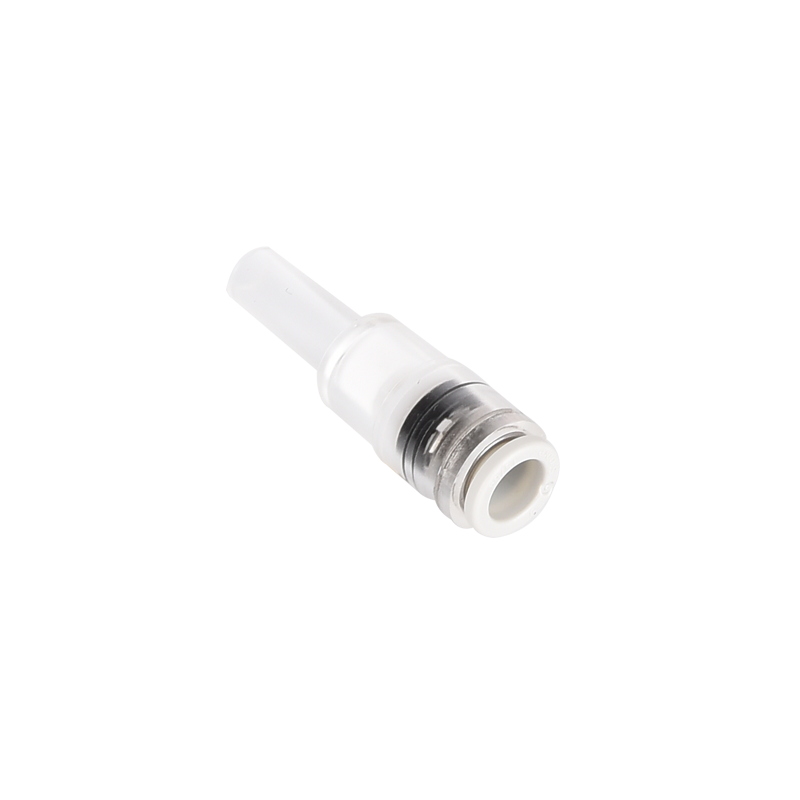

Mini Type Vacuum Filter
●Pipe type design, connect to hose directly
●Filter dust and other particles from the vacuum port
●Directly connect to vacuum port of vacuum generator, eg. HVY,VK,HZK2 series
●Transparent housing, easy to check the degree of contamination
●Compact structure and small size, light weight, economy and environmental protection
Selection Guide
HVYF Series Vacuum Accessories
VYF 44M
① ②
| ① Series | ② Specifications |
| VYF |
44M - φ4mm |
| 66M - φ6mm |
Technical parameters
| Model | Intubation diameter mm | Ambient and fluid temperature ℃ | Safety pressure range kPa | Removal efficiency μm |
| VYF44M | φ4 |
5~50 |
-100~0 |
10 |
| VYF66M | φ6 |

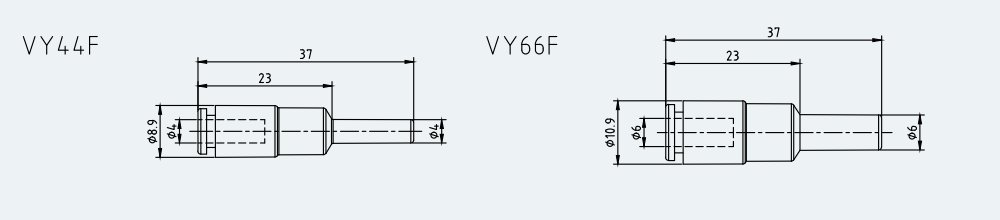

Dimensions
Mini Type Vacuum Filter
