Features

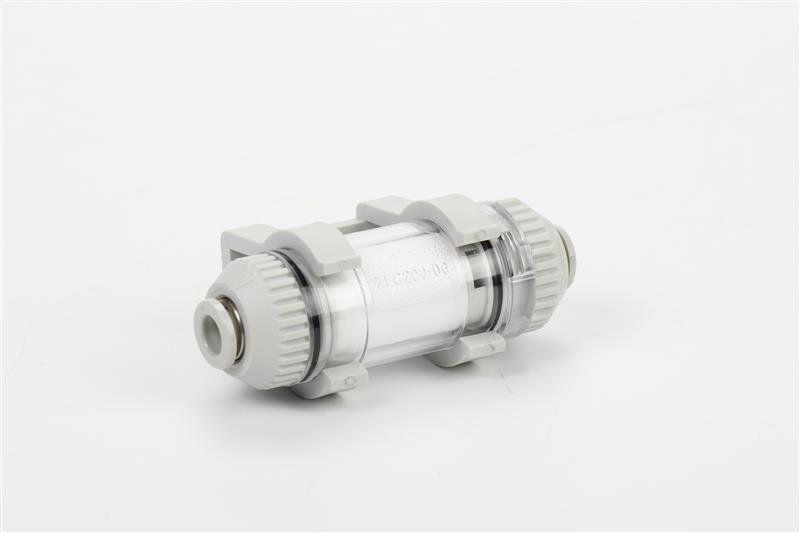

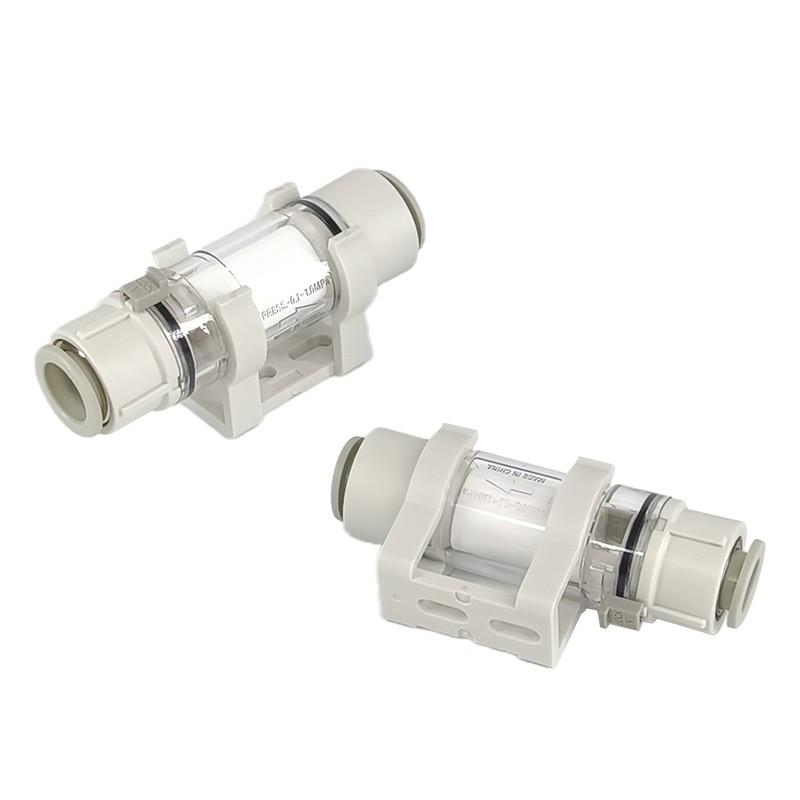

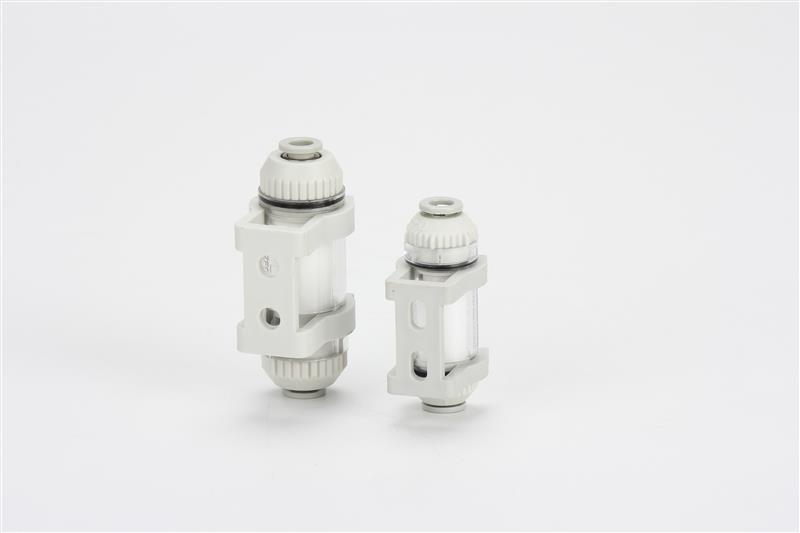

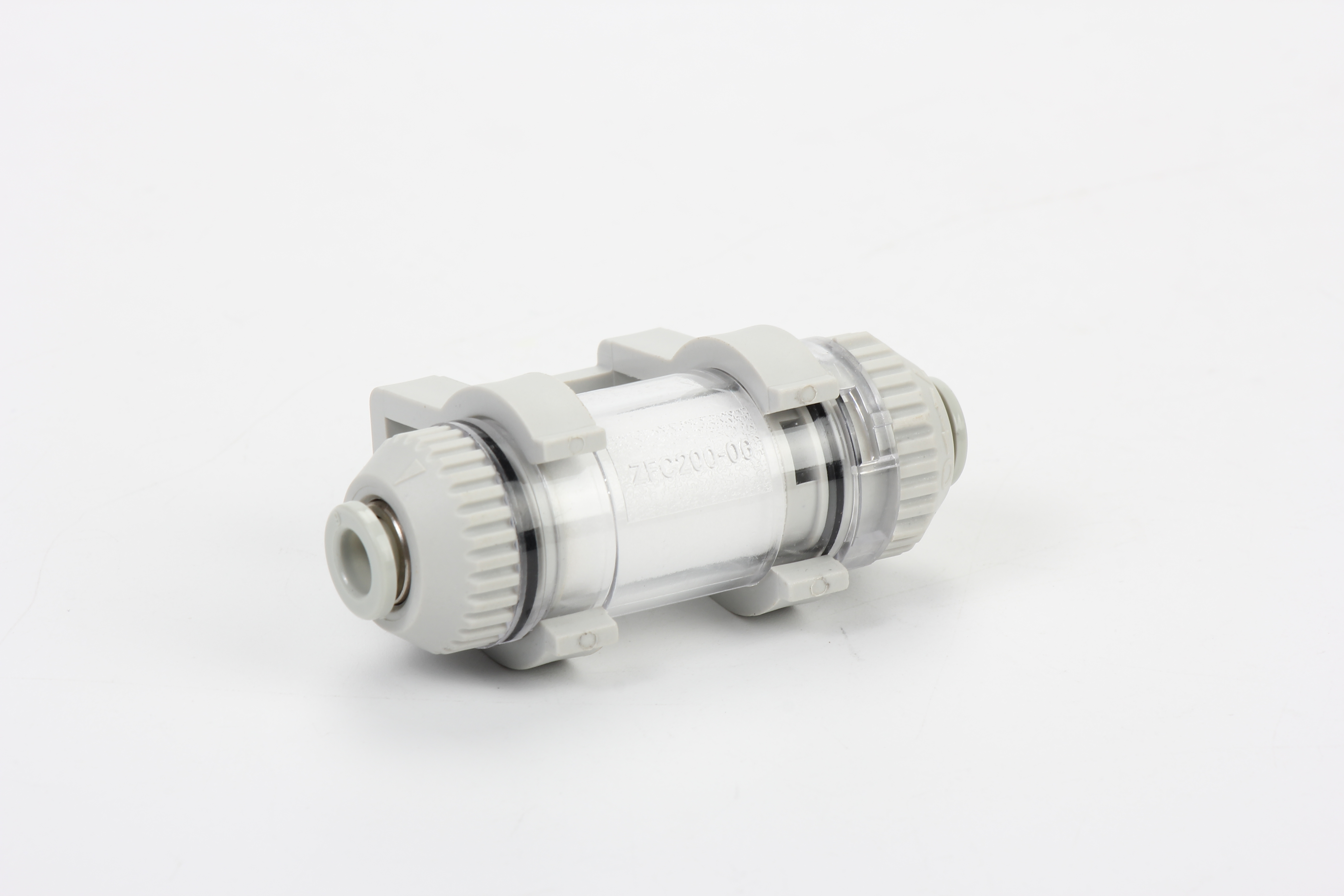

Universal Vacuum Filter
●Small size and lightweight
●Filter elements could be replaced
●Straight through design, one-touch fitting, with bracket, easy to mount
●Suitable for vacuum and positive pressure systems with light or medium pollution level
Selection Guide
HZFC Series Vacuum Accessories
HZFC 100 -4 □
HZFC 5 4 -B
① ② ③ ④
| ① Series | ② Specifications |
③ Hose diameter | ④ Bracket |
| HZFC |
100 - Max. 20NL/min 200 - Max. 50NL/min |
04 - φ4(ZFC100) | / - Default,without bracket |
| 06 - φ6(ZFC100) | B - With bracket | ||
| 06 - φ6(ZFC200) | |||
| 08 - φ8(ZFC200) | |||
| 5 - Filter area 750mm² 7 - Filter area 1260mm² |
3 - φ4 | ||
| 4 - φ6 | |||
| 5 - φ8 | |||
| 6 - φ10 | |||
| 7 - φ12 |
Technical parameters
| Model | HZFC100-04B | HZFC100-06B | HZFC200-06B | HZFC200-08B |
| Hose dia. mm | φ4 |
φ6 |
φ6 | φ8 |
| Flow rate NL/min | 10 |
20 |
30 | 50 |
| Fluid | Air, Nitrogen | |||
| Operating temperature ℃ | 0~60(Unfrozen) | |||
| Removal efficiency μm | 10 | |||
| safety range kPa | -100~0 | |||
| Applicable materials of hose | Nylon,PU | |||
| Filter element | HZFC-100 | HZFC-200 |
||
| Model | HZFC53-B | HZFC54-B | HZFC74-B | HZFC75-B | HZFC76-B | HZFC77-B |
| Hose dia. mm | φ4 |
φ6 |
φ6 | φ8 | φ10 | φ12 |
| Positive pressure flow rate NL/min | 40 |
130 |
140 | 280 | 320 | 370 |
| Vacuum flow rate NL/min | 10 |
75 |
80 | 110 | 120 | 140 |
| Fluid | Air, Nitrogen |
|||||
| Operating temperature ℃ | 0~60(Unfrozen) |
|||||
| Removal efficiency μm | 10 |
|||||
| safety range MPa | -0.1~1 |
|||||
| Applicable materials of hose | Nylon,PU |
|||||
| Filter element | HZFC-5 |
HZFC-7 |
||||

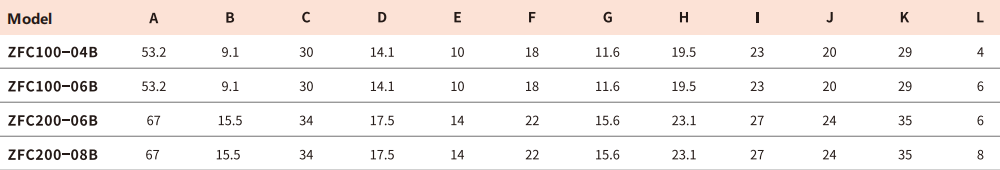

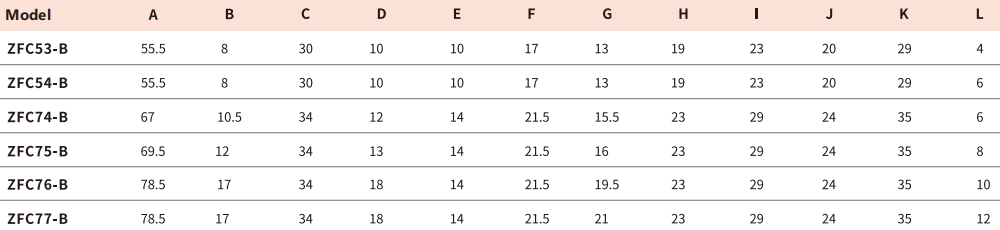

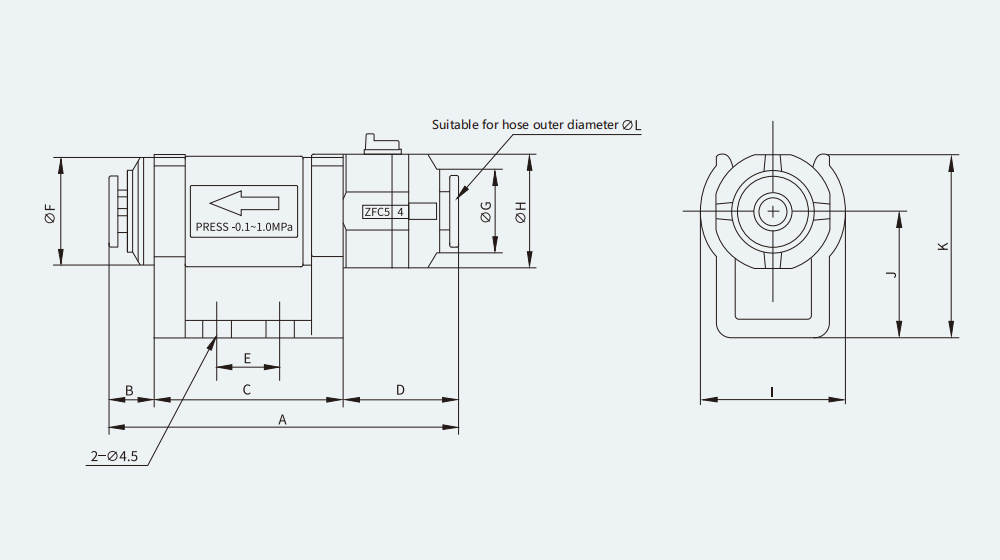

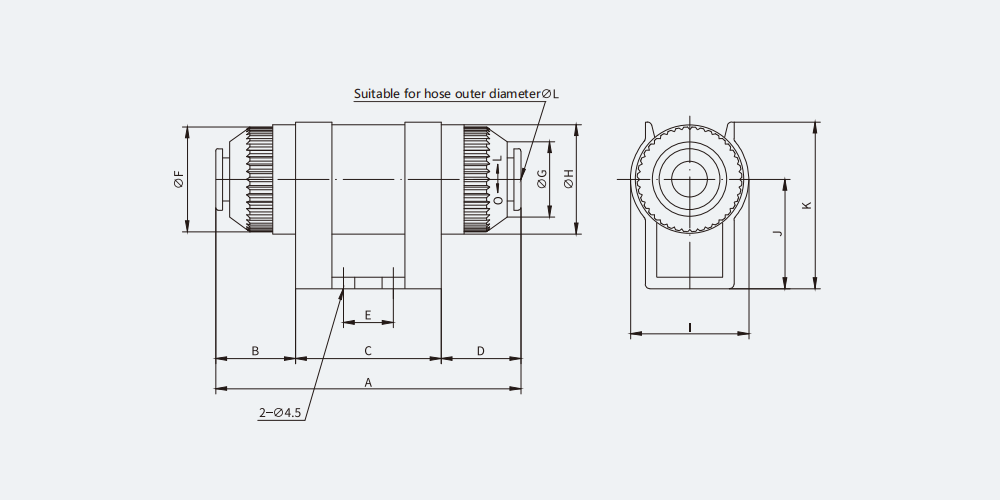

Dimensions
Universal Vacuum Filter

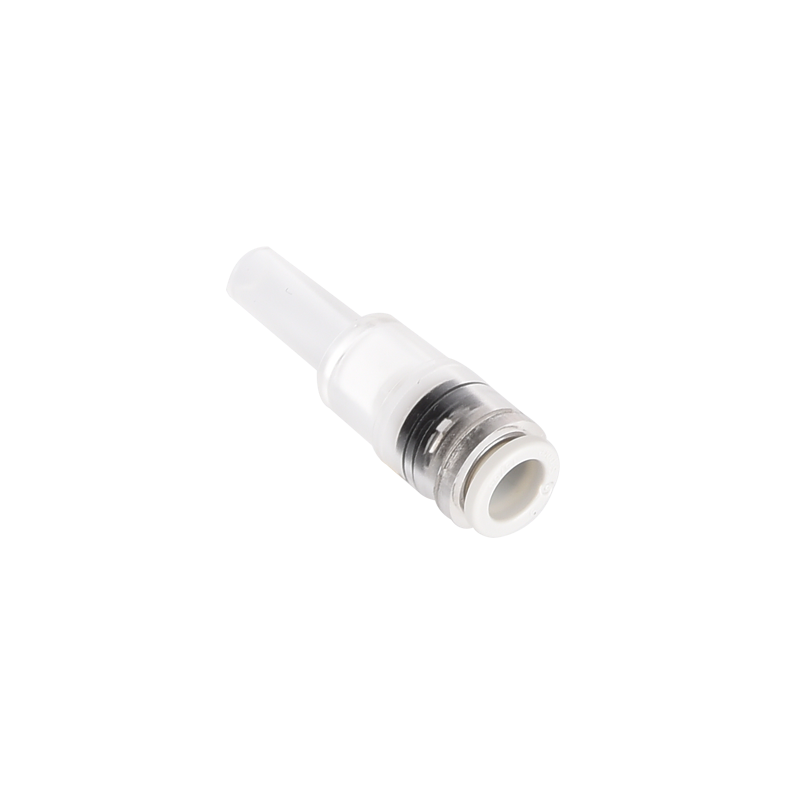

Mounting Accessory
Universal Vacuum Filter

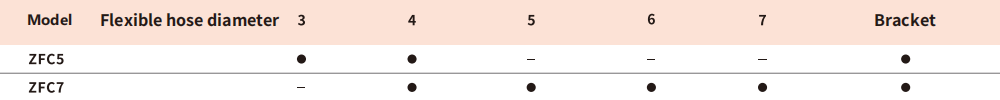

Mounting accessory selection

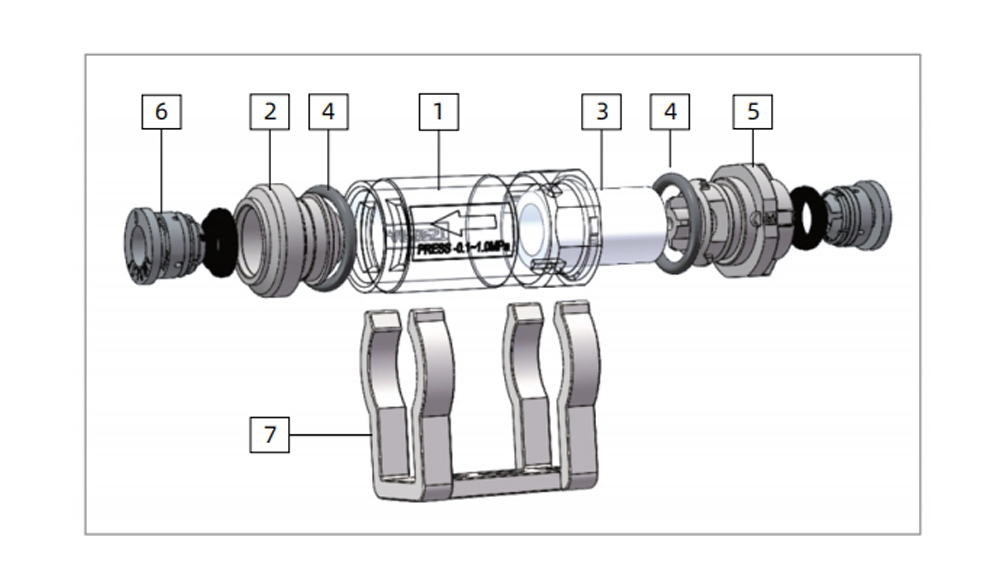

| NO | Item | Material | Q'ty |
| 1 | Housing | PC | 1 |
| 2 | Rear cap | PBT | 1 |
| 3 | Filter element | PE | 1 |
| 4 | O-ring | NBR | 2 |
| 5 | Front cap | PBT | 1 |
| 6 | One-touch fitting | - | 2 |
| 7 | Bracket | PBT | 1 |
