Features

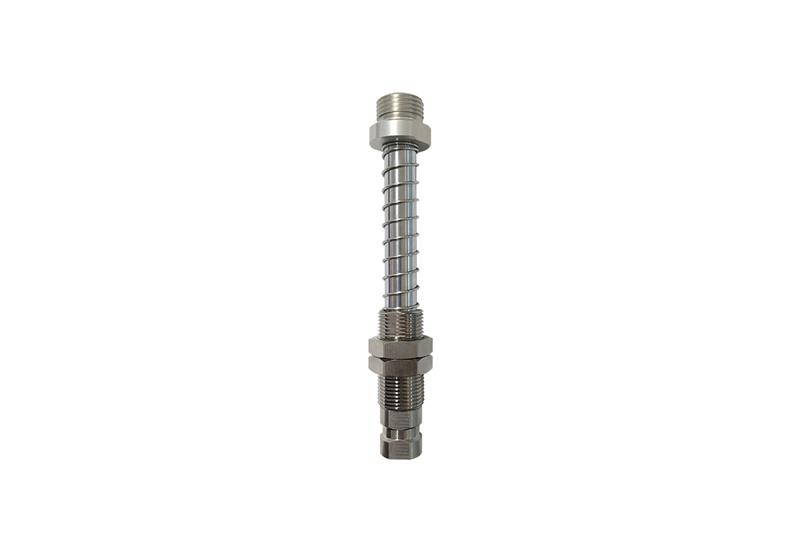

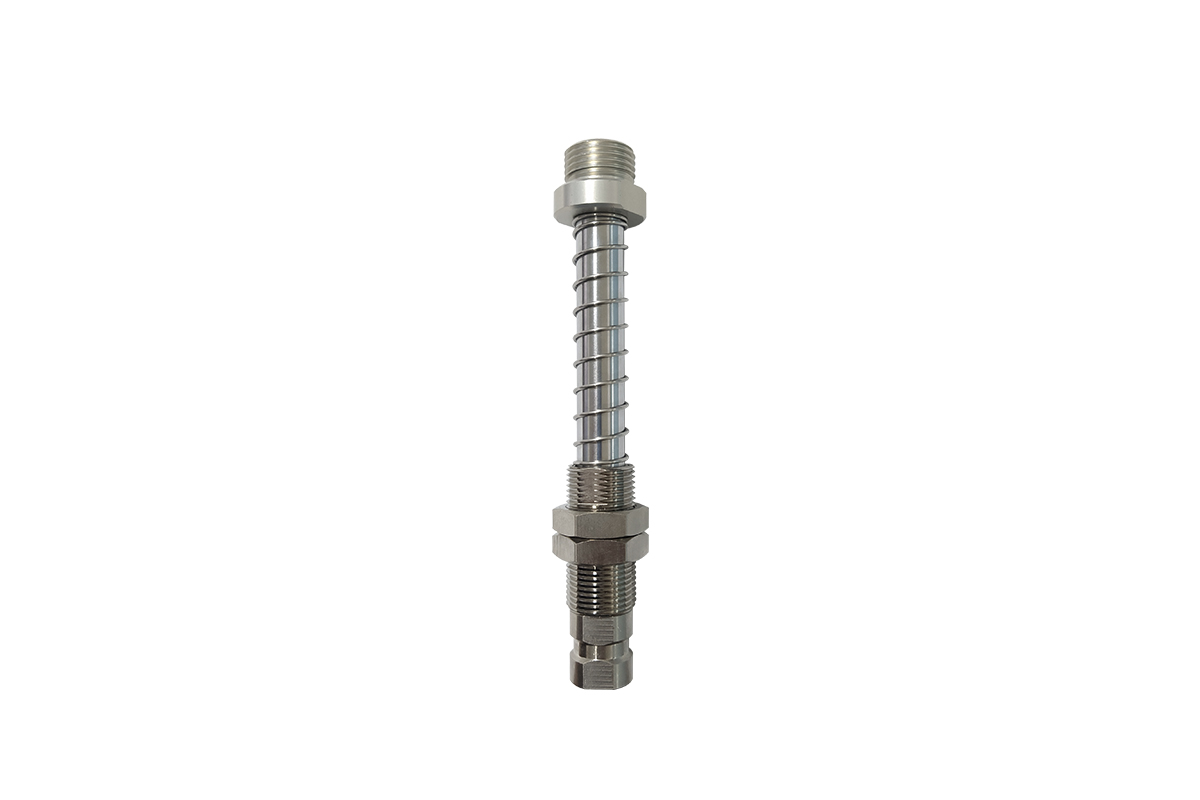

Double Springs Heavy-duty Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●Heavy duty external buffer spring
●Non-rotating types can be selected
●Various buffer stroke specifications are available
●Suitable for heavy-duty working conditions
Selection Guide
S KE12 Series Mounting Parts
S KE 12 10 -□ -□ -A20
① ② ③ ④ ⑤ ⑥ ⑦
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Mounting thread | ⑦ guide rod |
| KE - External buffer spring |
12 - G1/2(female thread) |
10 - 10mm | / - Default,vertical rotating | / - Default,male thread | A20 - M20×1.5 | / - Default,hollow |
| 20 - 20mm | F - Vertical non-rotating | V - Female thread | S - Solid | |||
| 25 - 25mm | ||||||
| 30 - 30mm | ||||||
| 50 - 50mm | ||||||
| 75 - 75mm |

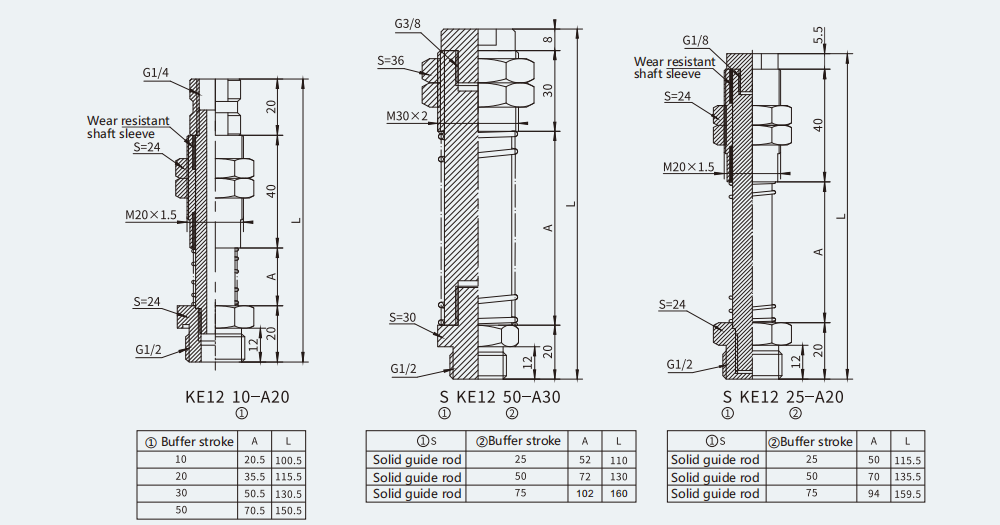

Dimensions
Heavy-duty Level Compensator
