Features

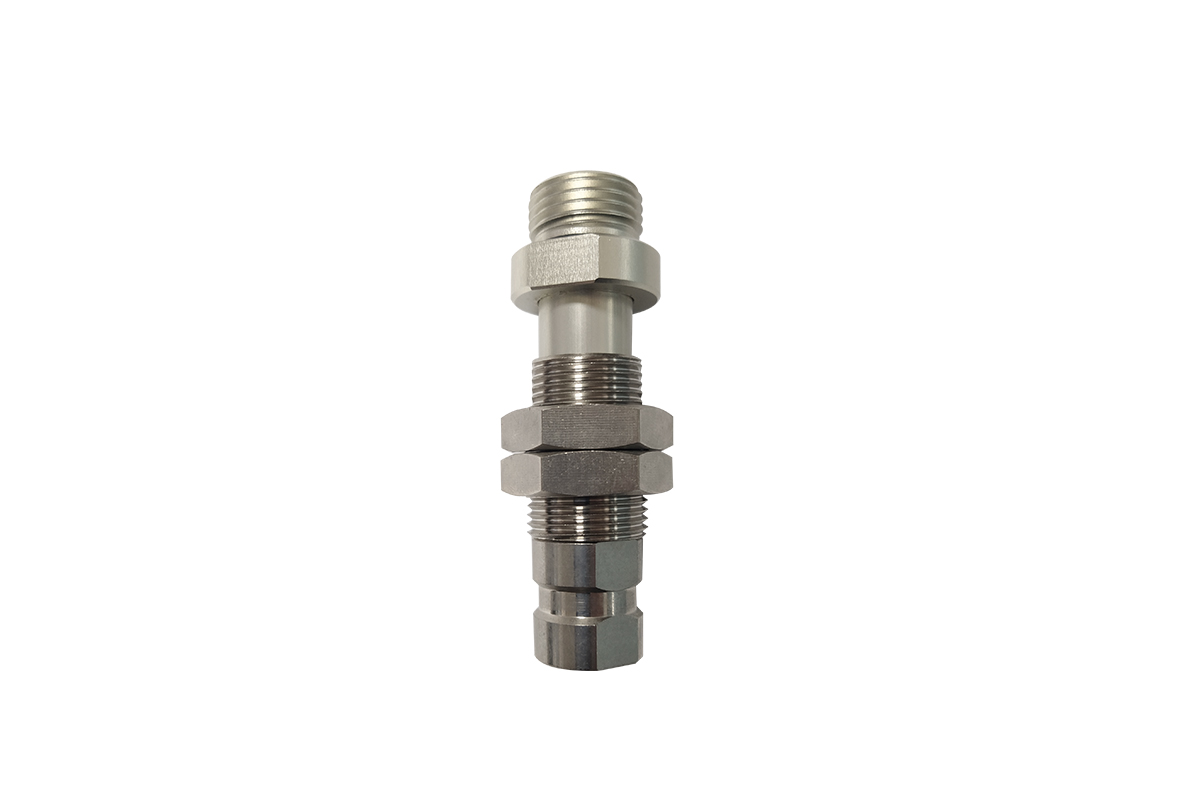

Heavy-duty Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●Heavy duty built-in buffer spring
●Non-rotating types can be selected
●Various buffer stroke specifications are available
●Suitable for heavy-duty working conditions
Selection Guide
KI12 Series Mounting Parts
KI 12 10 -□ -□ -A22
① ② ③ ④ ⑤ ⑥
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Mounting thread |
| KI - Built-in buffer spring |
12 - G1/2(female thread) |
10 - 10mm | / - Default,vertical rotating | / - Default,male thread | A22 - M22×1.5 |
| 20 - 20mm | F - Vertical non-rotating | V - Female thread | |||
| 30 - 30mm | |||||
| 50 - 50mm |

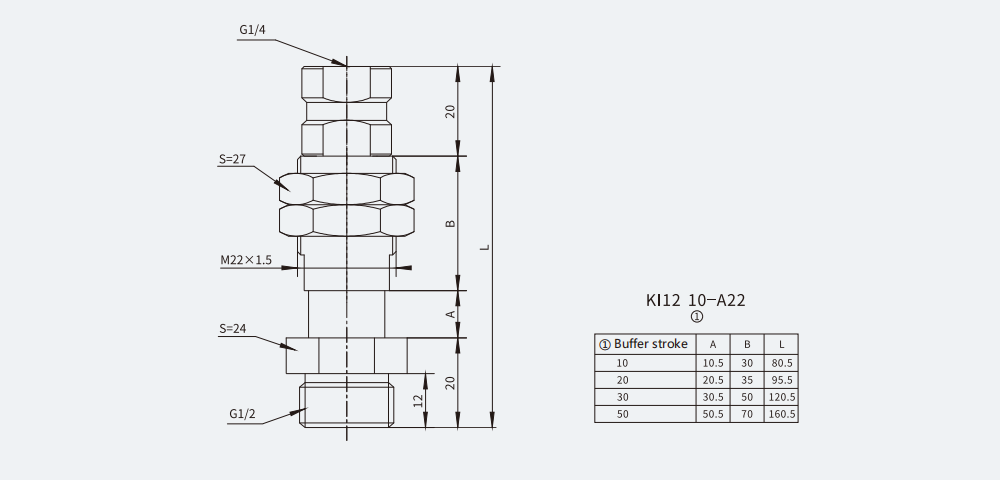

Dimensions
Heavy-duty Level Compensator
