Features

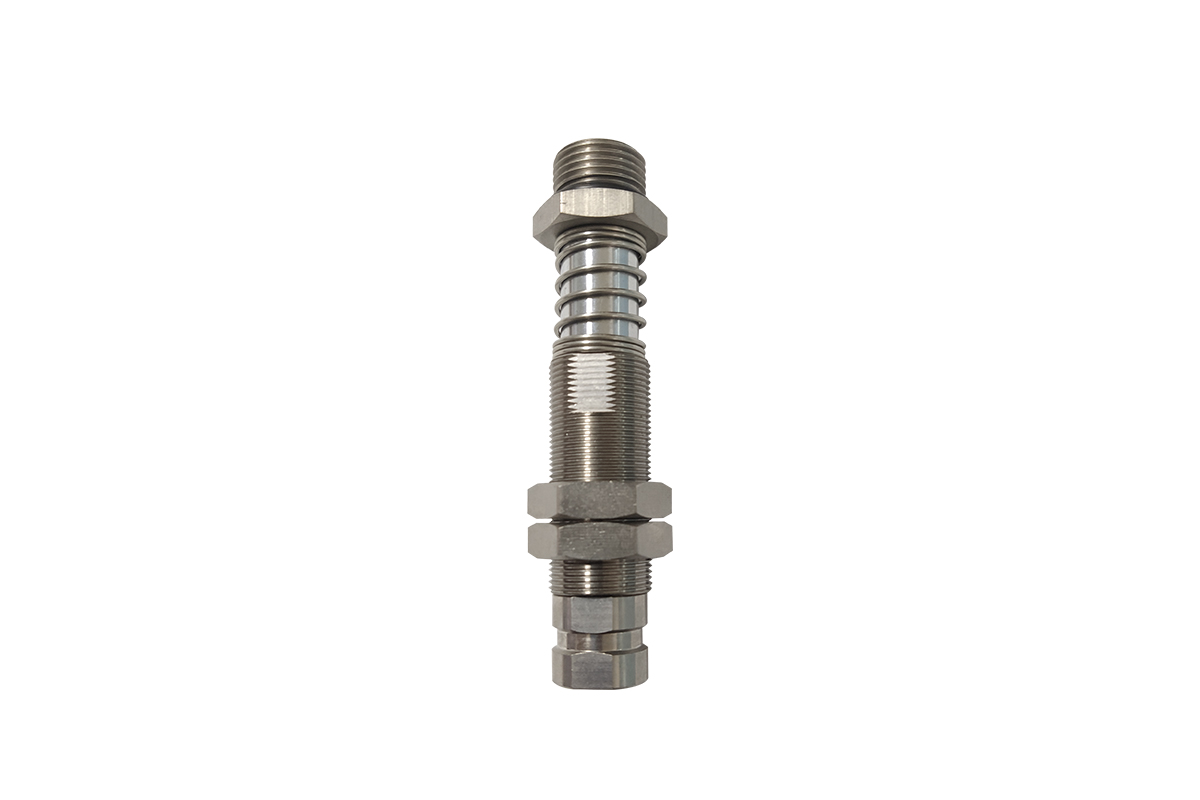

Heavy-duty Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●Heavy duty external buffer spring
●Non-rotating types can be selected
●Various buffer stroke specifications are available
●Suitable for heavy-duty working conditions
Selection Guide
KE38 Series Mounting Parts
KE 38 10 -□ -□ -A18 -□
① ② ③ ④ ⑤ ⑥ ⑦
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Mounting thread | ⑦ Vertical vacuum port |
| KE - External buffer spring |
38 - G3/8(female thread) |
10 - 10mm | / - Default,vertical rotating | / - Default,male thread | A18 - M18×1 | / - Default,standard |

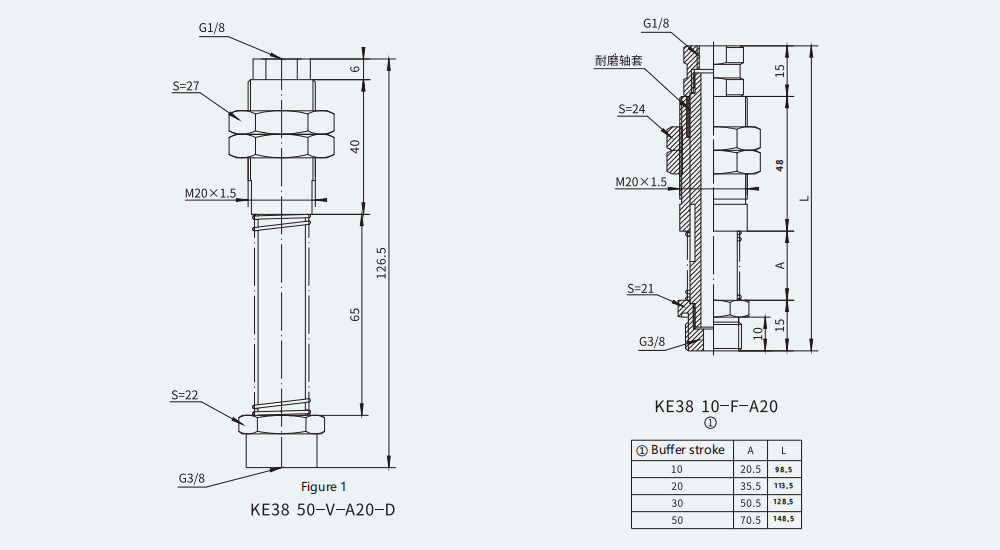

| 20 - 20mm | F - Vertical non-rotating | V - Female thread | A20 - M20×1.5 | D - As shown in Figure 1 | ||
| 30 - 30mm | ||||||
| 50 - 50mm | ||||||
| 75 - 75mm | ||||||
| 100 - 100mm |

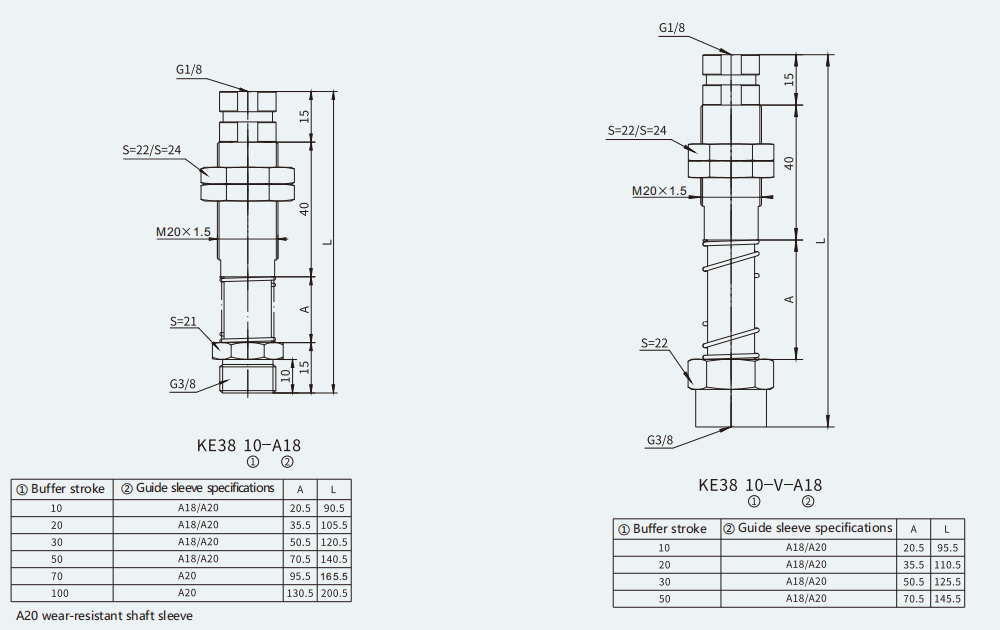

Dimensions
Heavy-duty Level Compensator
