Features

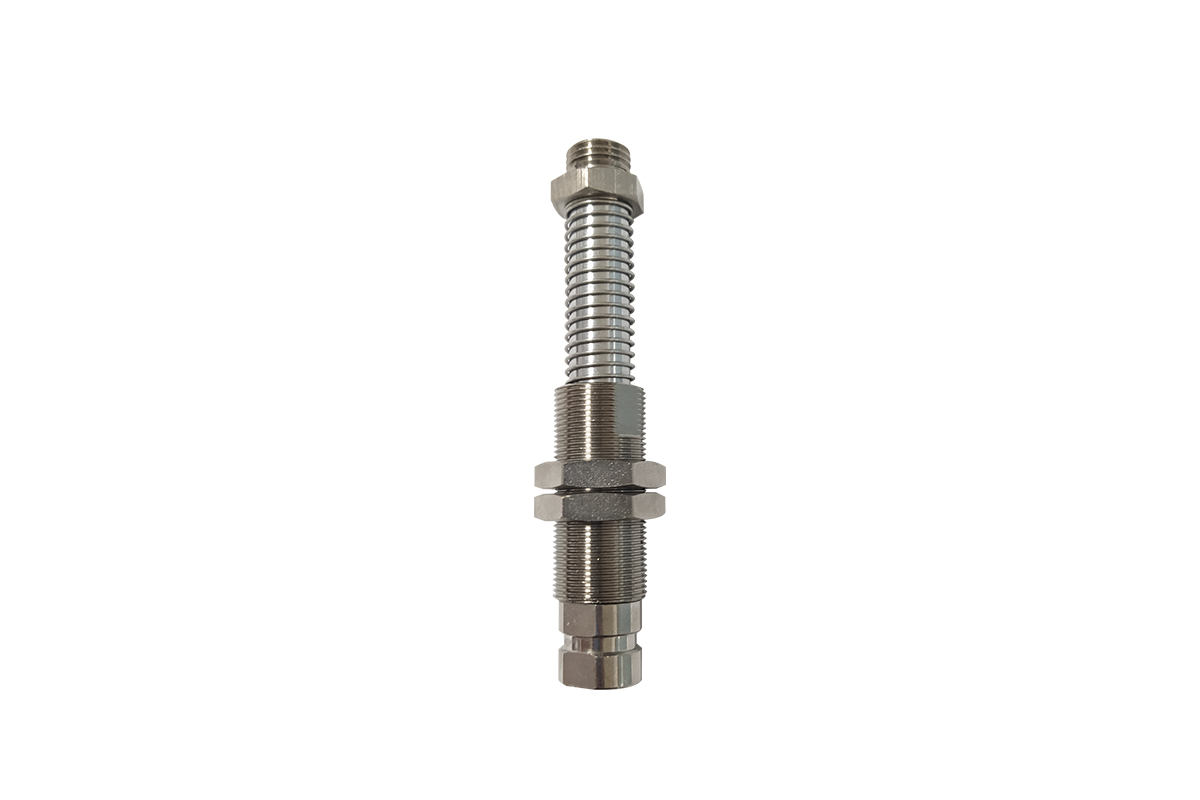

Universal Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●External buffer spring
●Various buffer stroke specifications are available
●Light duty
Selection Guide
KE14 Series Mounting Parts
KE 14 10 -□ -□ -A16
① ② ③ ④ ⑤ ⑥
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Mounting thread |
| KE - Extermal buffer spring |
14 - G1/4(female thread) |
10 - 10mm | / - Default,Vertical rotating | / - Default,male thread | A18 - M18×1 |
| 20 - 20mm | F - Vertical non-rotating | V - Female thread | A20 - M20×1 | ||
| 30 - 30mm | |||||
| 50 - 50mm | |||||
| 70 - 70mm |

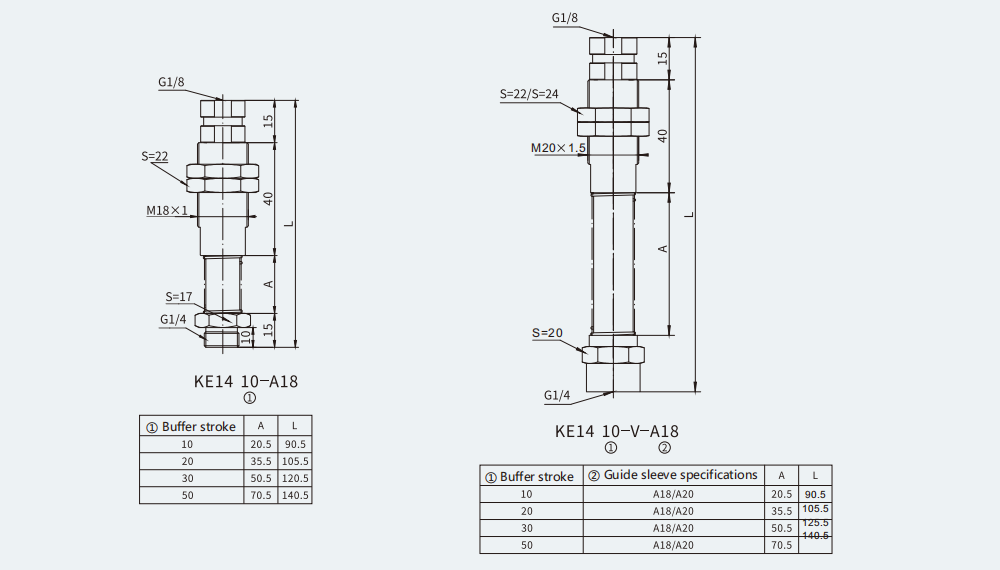

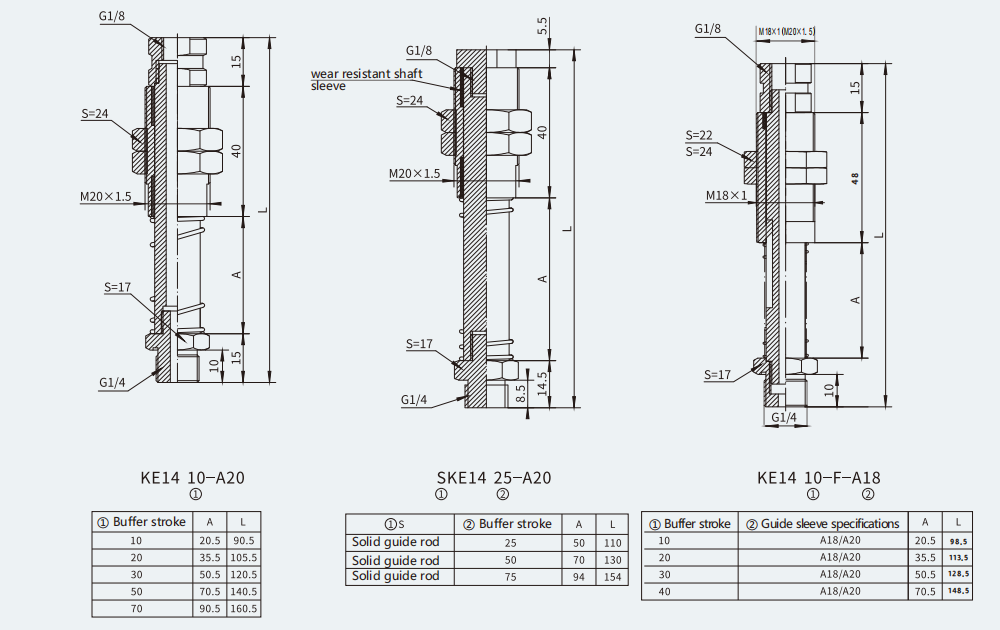

Dimensions
Universal Level Compensator
