Features

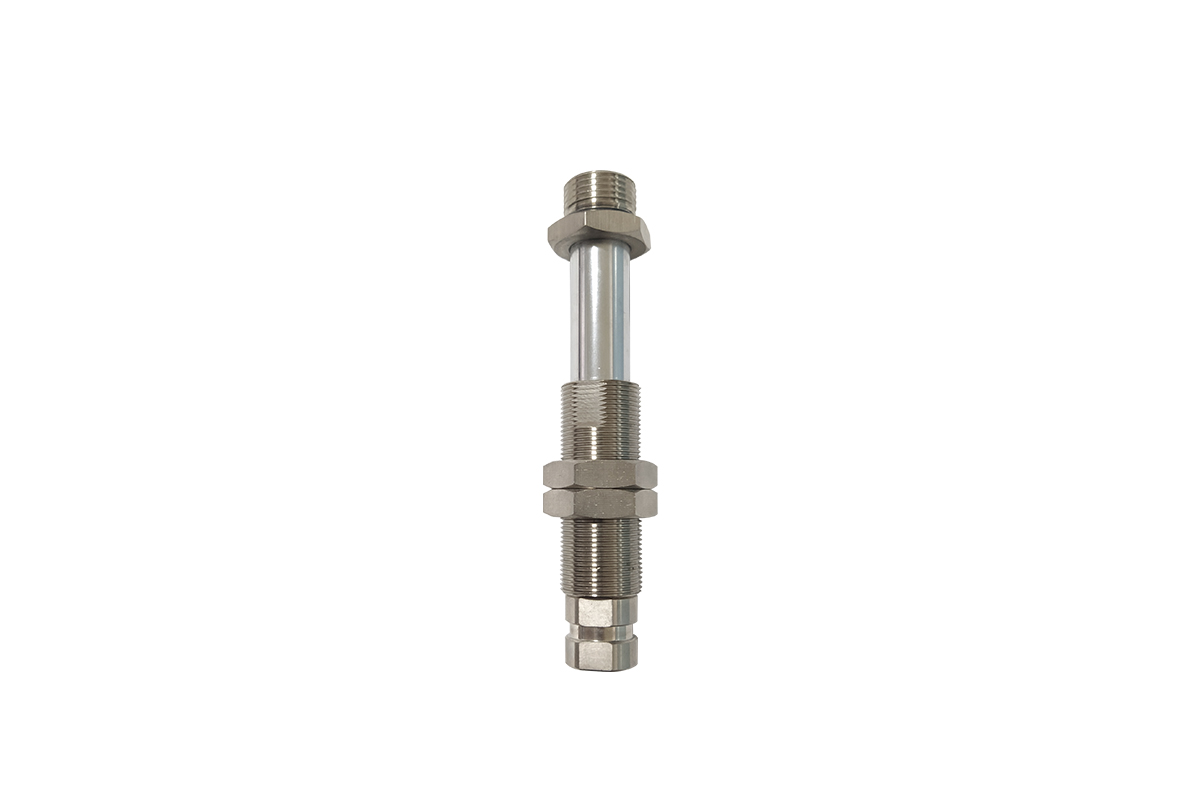

Universal Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●Built-in buffer
●Various buffer stroke specifications are available
●Light duty
Selection Guide
KI14 Series Mounting Parts
KI 14 10 -□ -□ -A18
① ② ③ ④ ⑤ ⑥
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Mounting thread |
| KI - Built-in buffer spring |
14 - G1/4(female thread) |
10 - 10mm | / - Default,Vertical rotating | / - Default,male thread | A18 - M18×1 |
| 20 - 20mm | F - Vertical non-rotating | V - Female thread | A20 - M20×1.5 | ||
| 30 - 30mm | |||||
| 50 - 50mm |

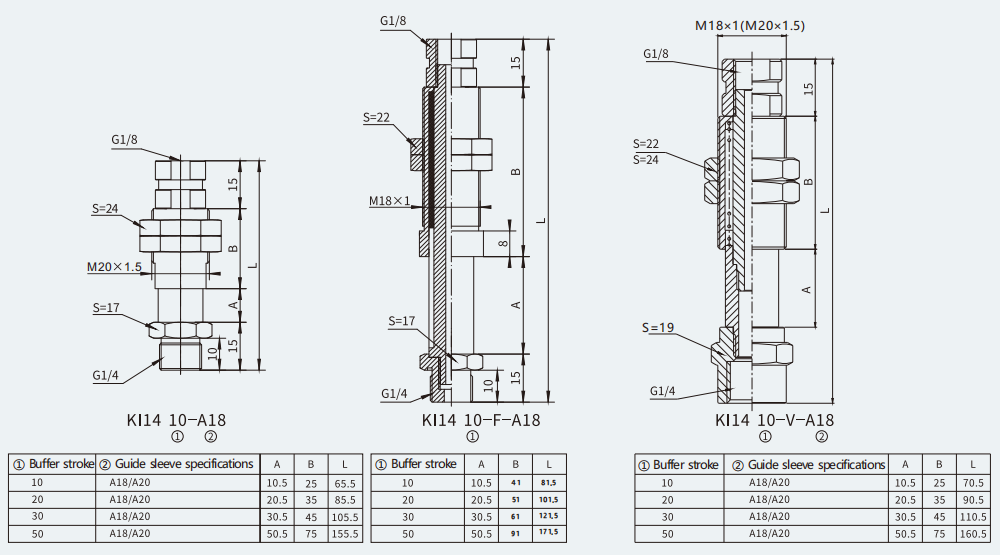

Dimensions
Universal Level Compensator
