Features

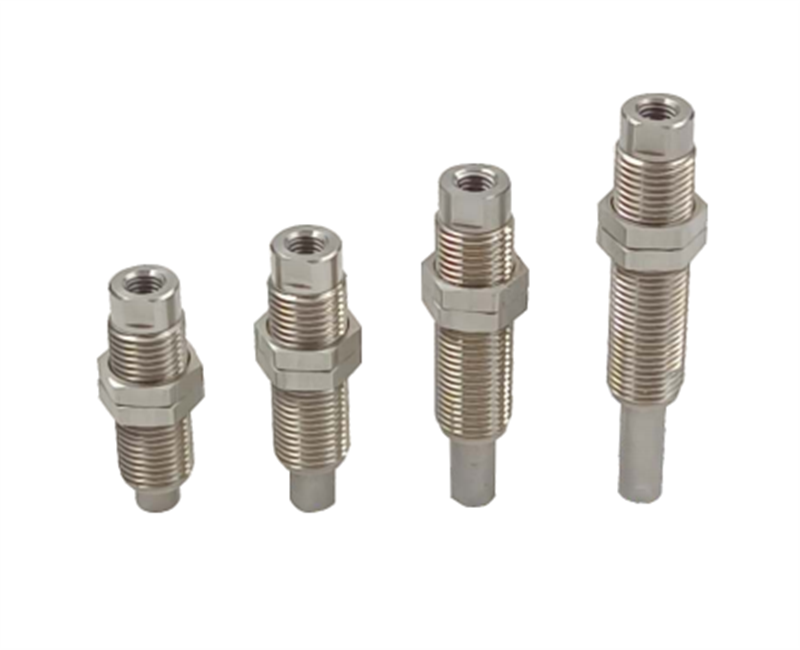

Retractive Level Compensator
●Level compensator with built-in spring, small elasticity
●Small size and lightweight
●Made of stainless steel
●Guide sleeve with built-in resin bushing
●Retractive structure design
Selection Guide
D Series Mounting Parts
D 10 10 -SM
① ② ③ ④
| ① Series | ② Mounting thread | ③ Buffer stroke | ④ Suction cup connection |
| D - Built-in buffer spring |
10 - M10×1 |
03 - 3mm | / - Default,female thread |
| 06 - 6mm | SM - Male thread | ||
| 10 - 10mm | |||
| 15 - 15mm |

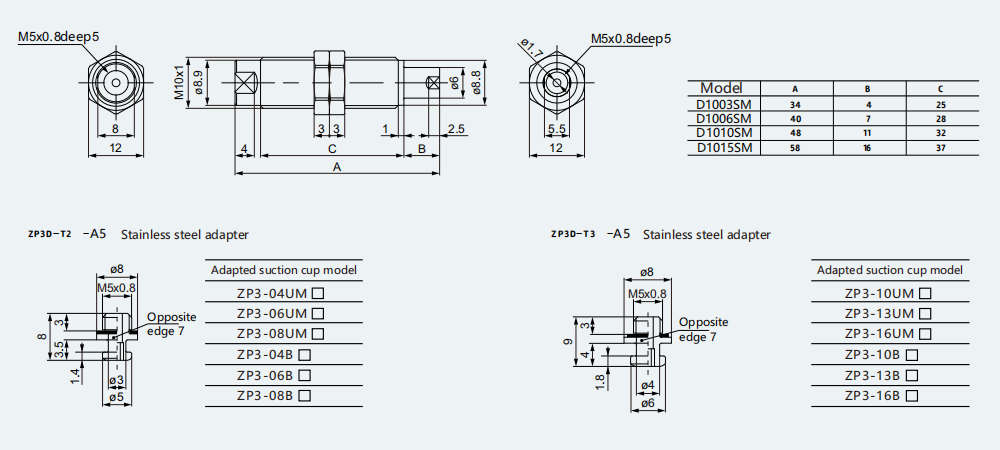

Dimensions
Retractive Level Compensator
