Features

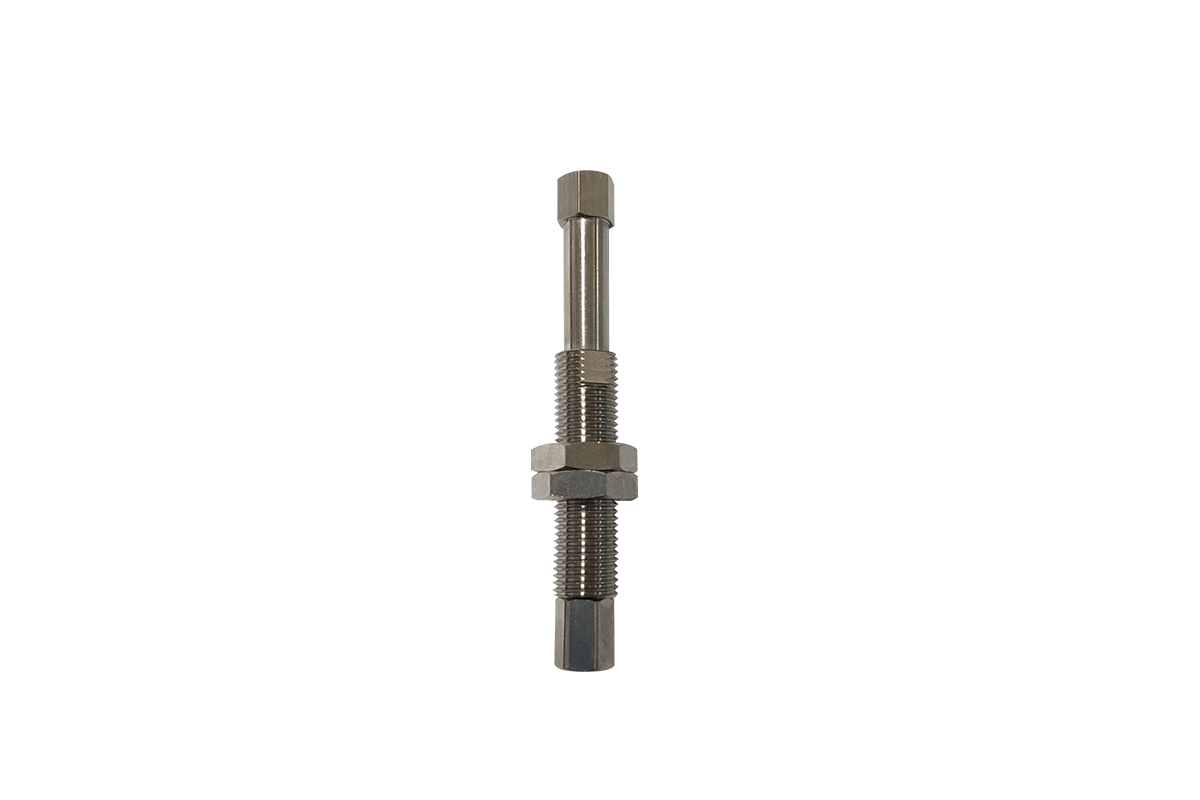

Small and Light Level Compensator
●Level compensator with built-in spring, small elasticity
●Small size and lightweight
●An oilless wear-resistant bushing is built in the guide sleeve
Selection Guide
KIA5 Series Mounting Parts
KIA 5 10 -□ -□ -A10
① ② ③ ④ ⑤ ⑥
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Mounting thread |
| KIA - Built-in buffer spring |
5 - M5(female thread) |
10 - 10mm | / - Default,Vertical rotating | / - Default,male thread | A10 - M10×1 |
| 20 - 20mm | F - Vertical non-rotating | V - Female thread | |||
| 30 - 30mm | |||||
| 40 - 40mm | |||||
| 50 - 50mm |

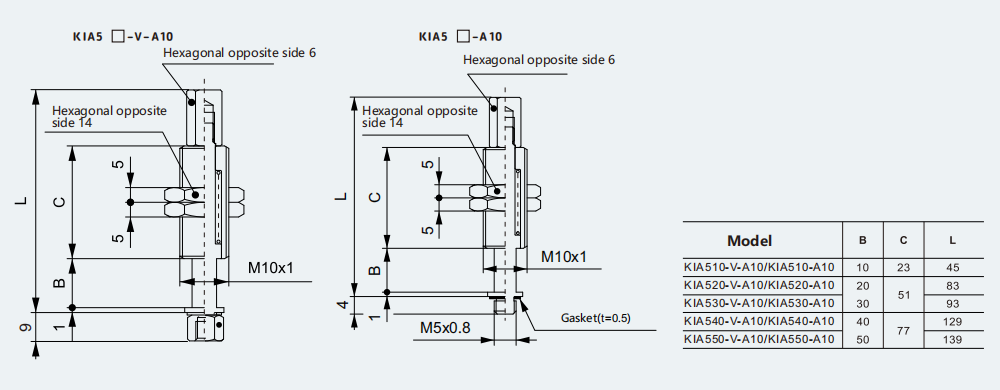

Dimensions
Small and Light Level Compensator
