Features

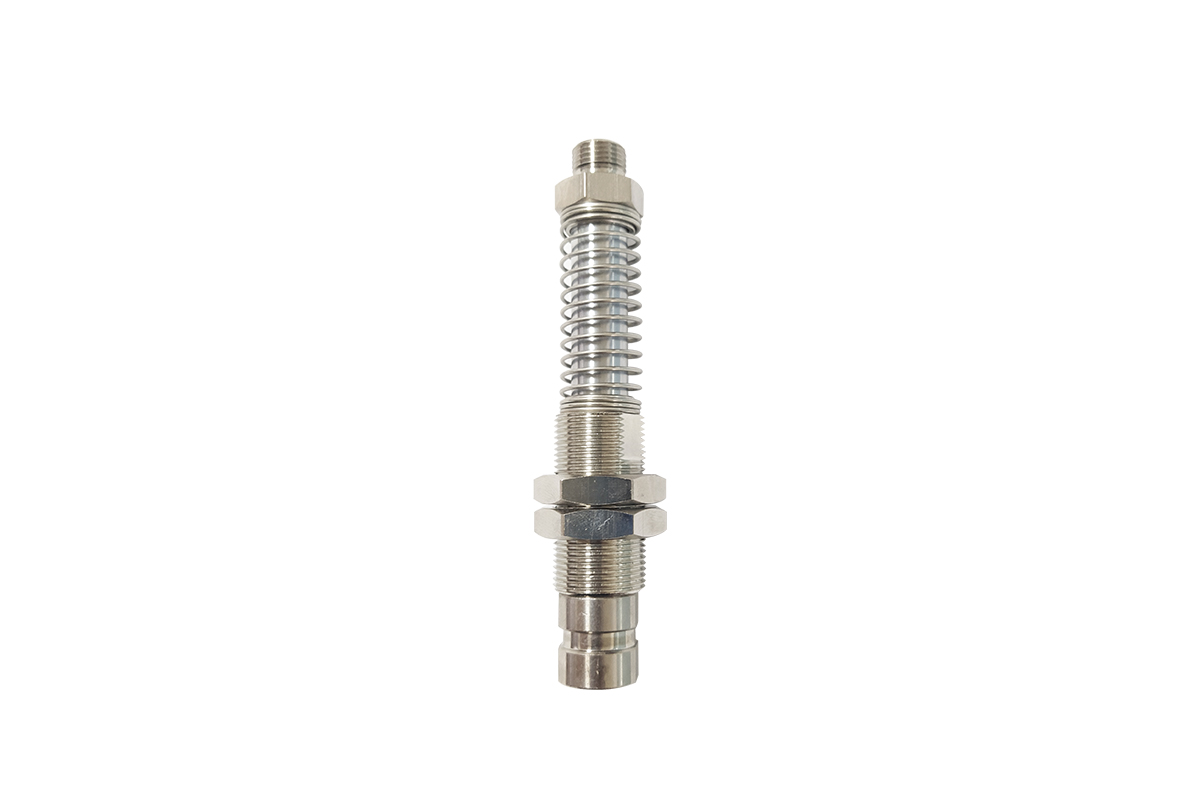

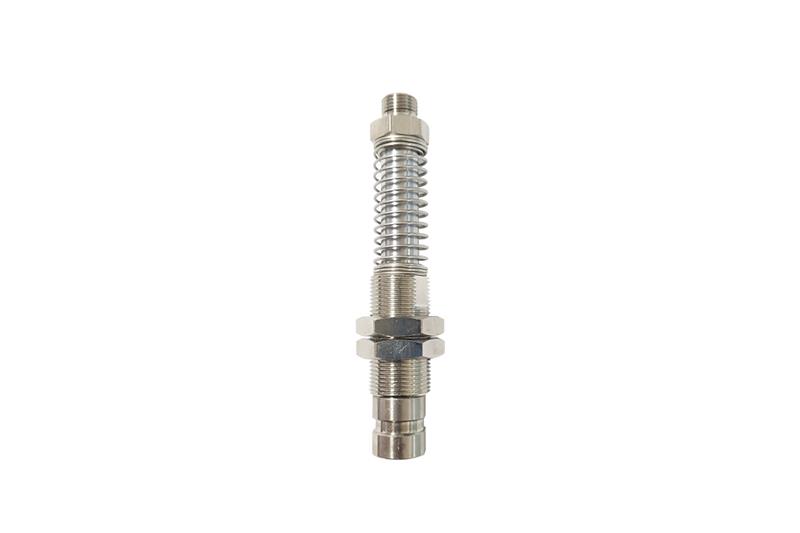

Universal Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●External buffer spring
●Various buffer stroke specifications are available
●Light duty
Selection Guide
KE18 Series Mounting Parts
KE 18 10 -□ -□ -□ -A16
① ② ③ ④ ⑤ ⑥ ⑦
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Rotary type | ⑤ Suction cup connection | ⑥ Side vacuum port | ⑤ Mounting thread |
| KE - External buffer spring |
18 - G1/8(female thread) |
10 - 10mm | / - Default,vertical rotating | / - Default,male thread | / - Default,vertical | A16 - M16×1 |
| 20 - 20mm | F - Vertical non-rotating | V - Female thread | L - Lateral | A18 - M18×1 | ||
| 30 - 30mm | ||||||
| 50 - 50mm |

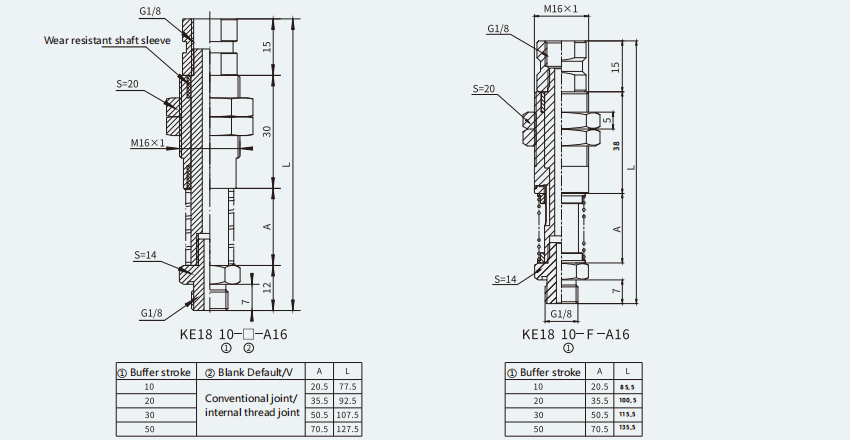

Dimensions
Universal Level Compensator
