Features

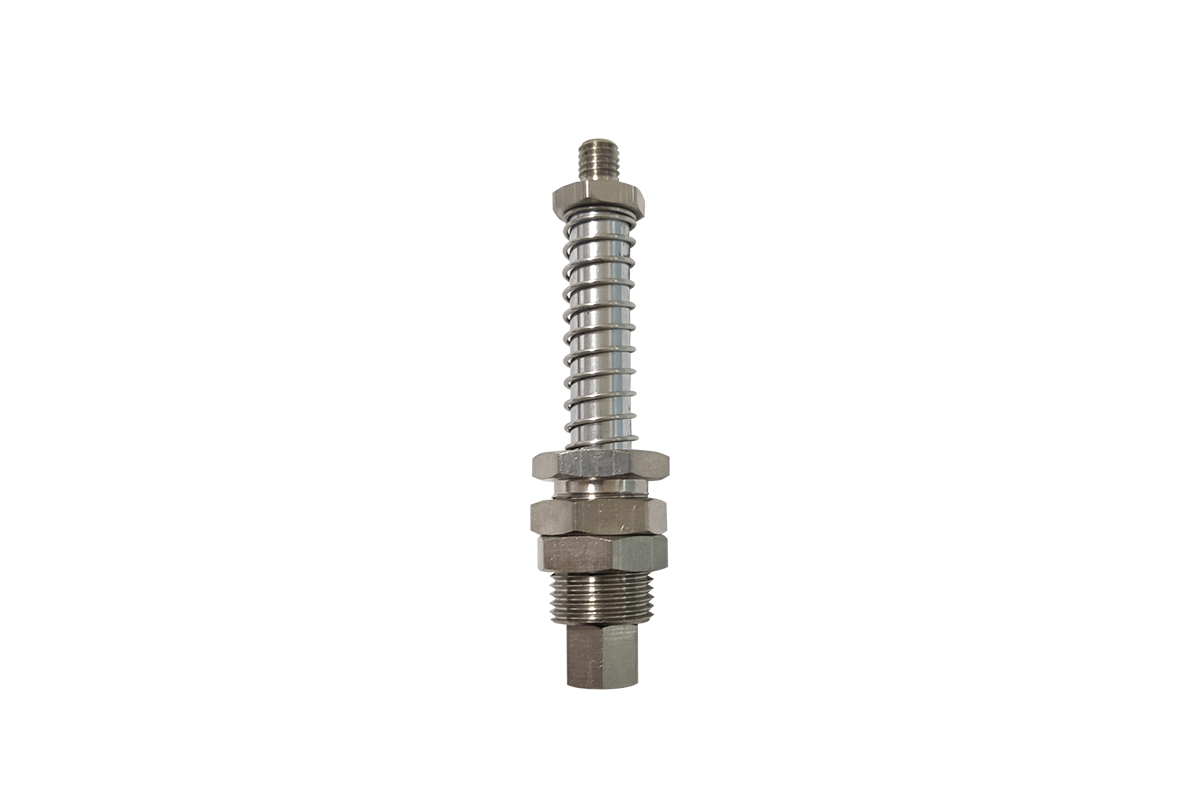

Small and Light Level Compensator
●Oilless, wear-resistant bushing is built in the guide sleeve
●External buffer spring
●Various buffer stroke specifications are available
●Light duty
Selection Guide
KE5 Series Small and Light Level Compensator
KE 5 10 -□ -A10
① ② ③ ④ ⑤
| ① Series | ② Vacuun port connection | ③ Buffer stroke | ④ Suction cup connection | ⑤ Mounting thread |
| KE - External buffer spring |
5 - M5(female thread) | 10 - 10mm | / - Default,male thread | A10 - M10×1 |
| 20 - 20mm | V - Female thread | A12 - M12×1 | ||
| 25 - 25mm |

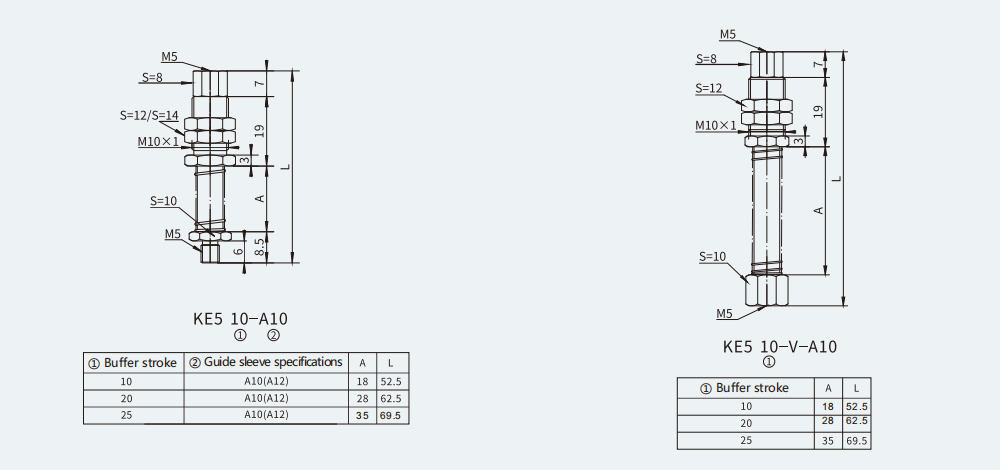

Dimensions
Small and Light Level Compensator
