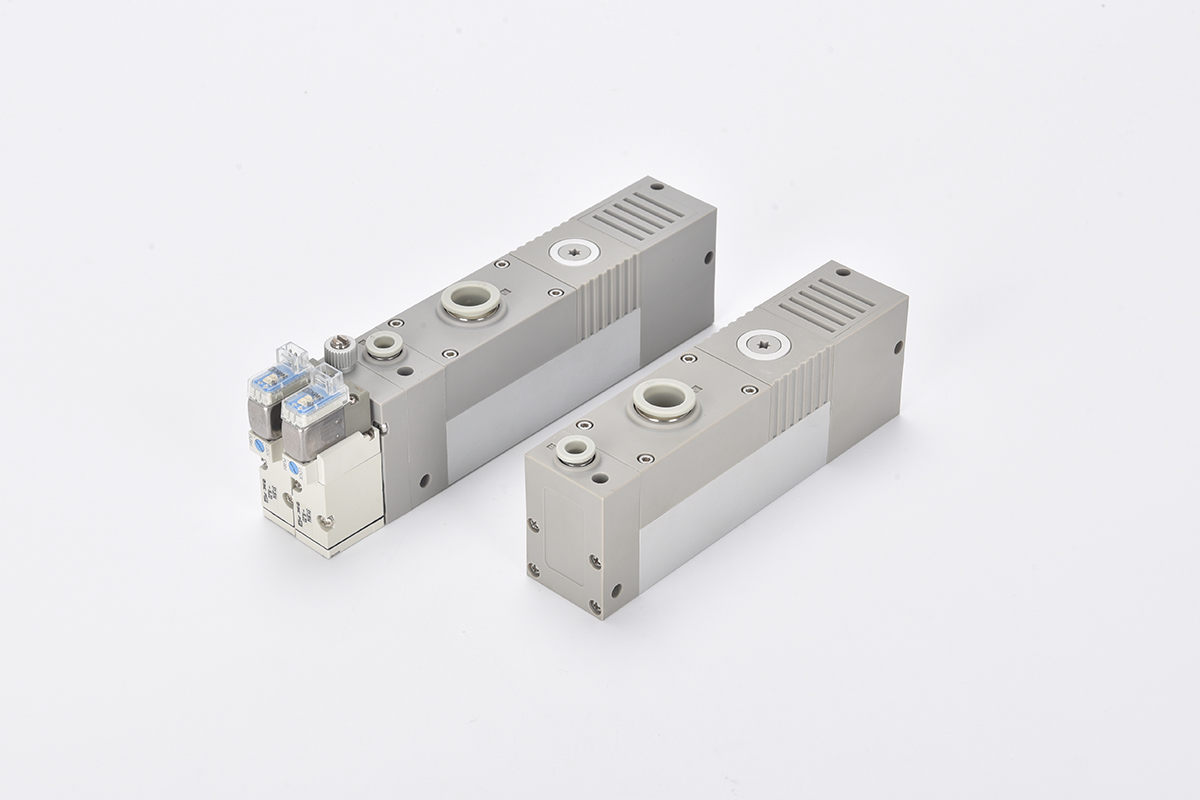

Features
INTEGRATED VACUUM GENERATOR
●Small size,lightweight and easy to install
●Optional solenoid valve and pressure switch
●Built-in vacuum filter and silencer

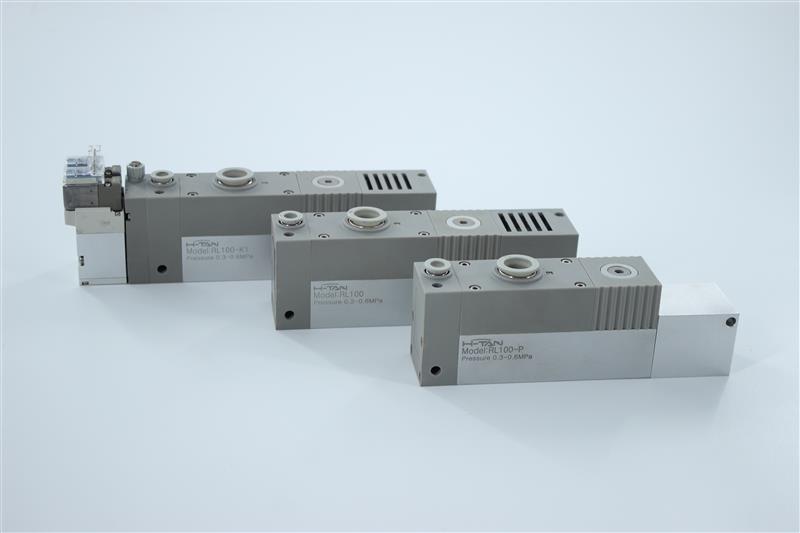

Selection Guide
RL100 SERIES VACUUM GENERATOR
RL 100 -□ -K1 -□
① ② ③ ④ ⑤
| ①Series | ②Specification | ③Exhaust port | ④Control device | ⑤Vacuum gauge |
| RL |
100 - 100NL/min |
/ - Default,built in silencer | / - Default,without control device | / - Withoutl gauge |
| p - Horizonfal exhaust | K1 - With supply and break valve | C - Digital display gauge | ||
| K2 - With supply valve |
Specific
INTEGRATED VACUUM GENERATOR
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar | Max. vacuum level -kPa | Max. vacuum flow NL/min | Air consumption NL/min | Operating temperature ℃ | Recommended hose dia. mm Air supply port P |
Recommended hose dia. mm Vacuum port V |
| RL100 | 4 | 87 | 100 | 51 | 0~50 | 6 | 12 |
Standard Specifications Of Control Device
| Item | Parameter | Item | Parameter |
| Operating pressure range | 3~6bar | Installation method | Free |
| Operating temperature | 0~50℃ | Stamping/vibration resistance | 150/ 30m/s² |
| Response time (5 bar) | within 25ms | Structural protection | Dustproof |
| Max. action frequency | 5Hz | Rated voltage | DC24V |
| Exhaust method | Individual exhaust type, centralized exhaust type | Lubricating oil | Not Required |
| Manual operation | Non locking push-pull,push-pull rotary locking | ||

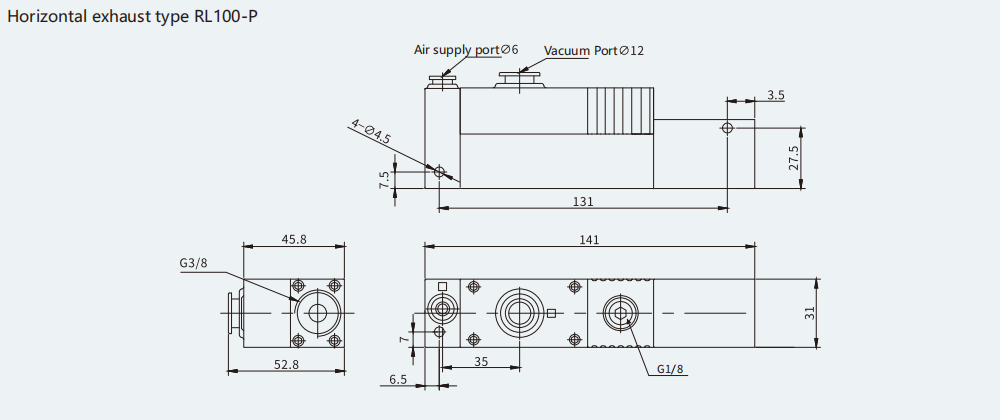

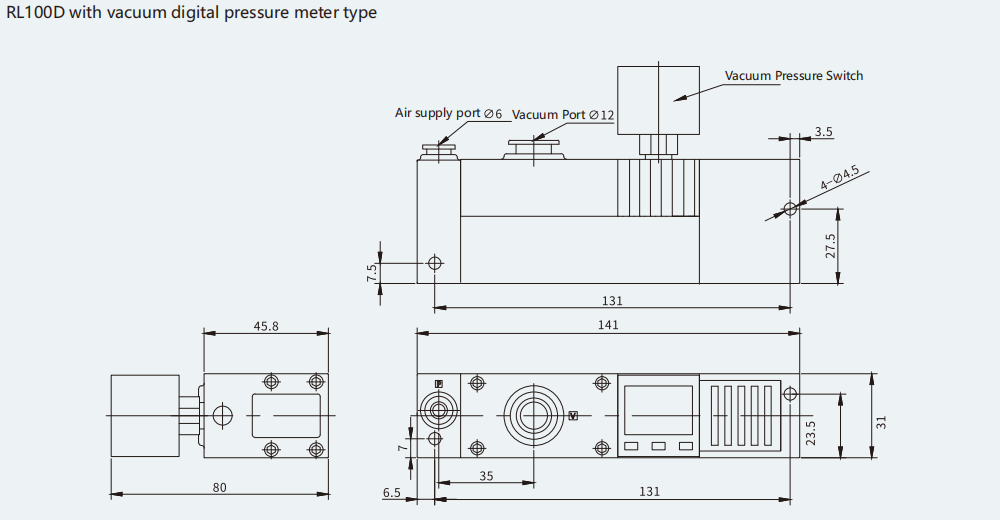

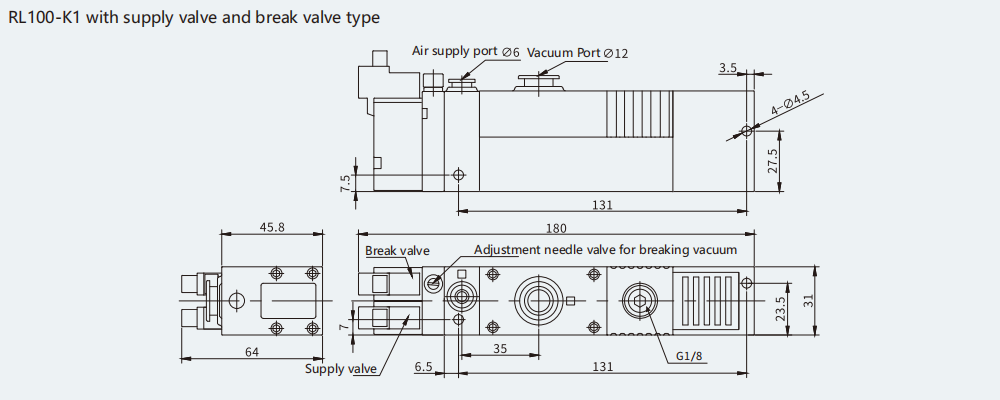

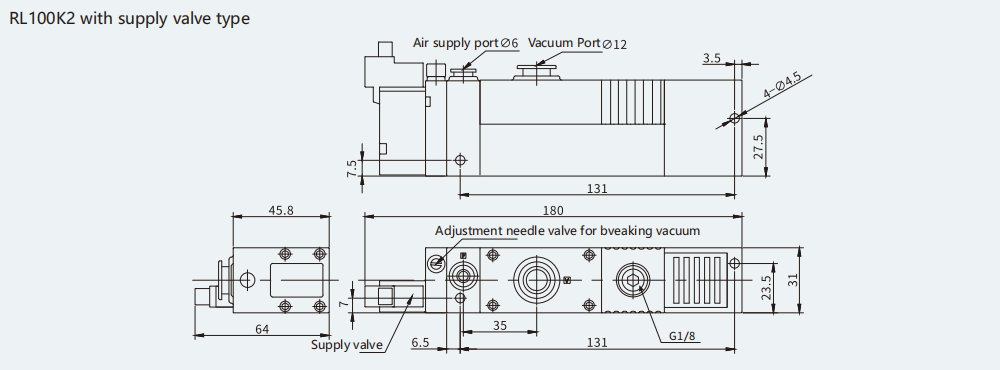

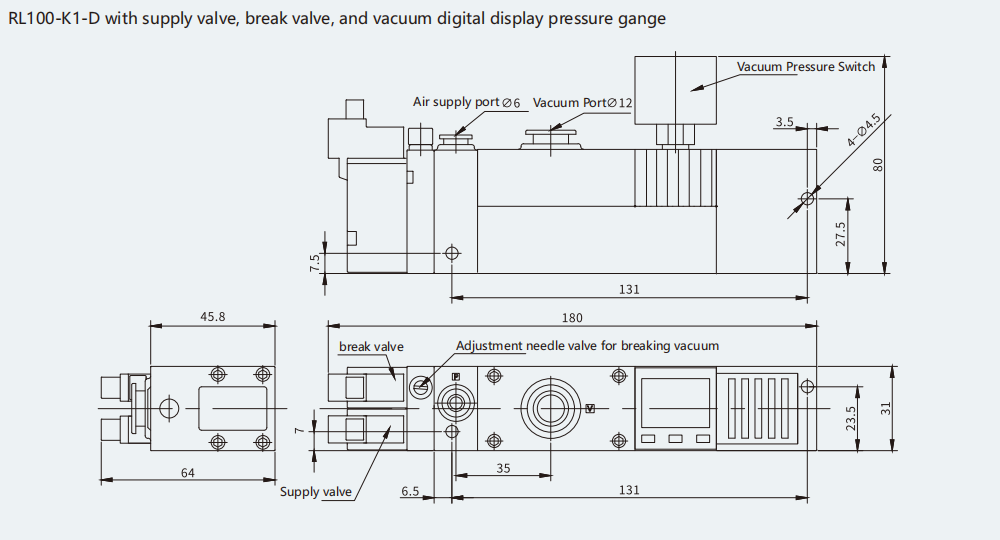

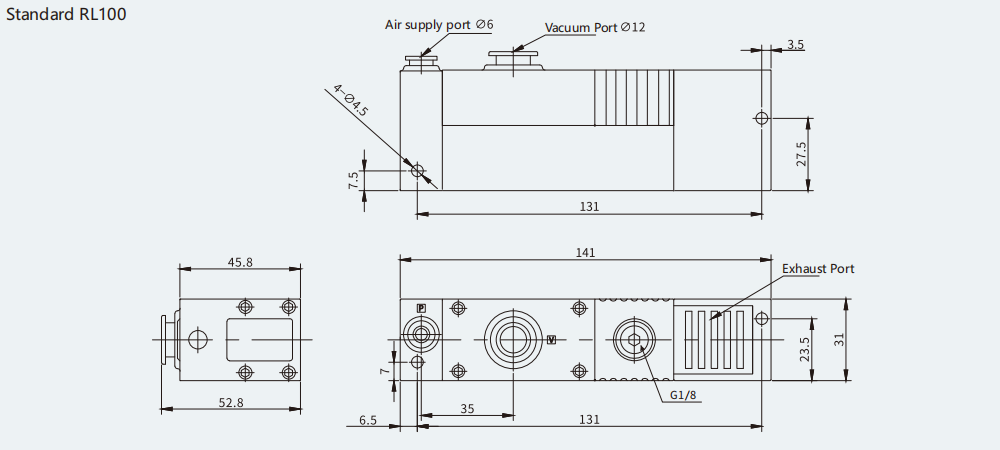

Dimensions
INTEGRATED VACUUM GENERATOR
