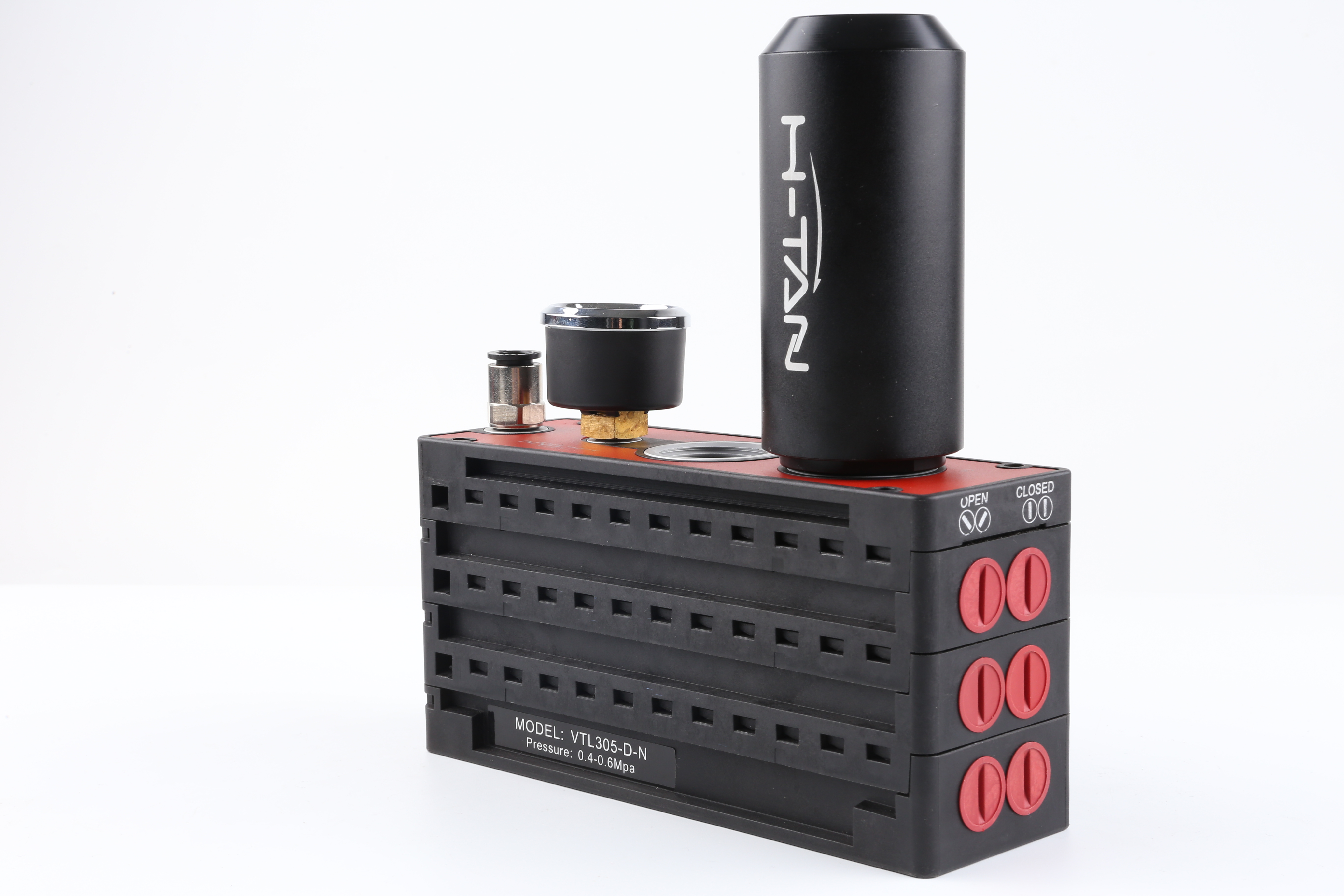

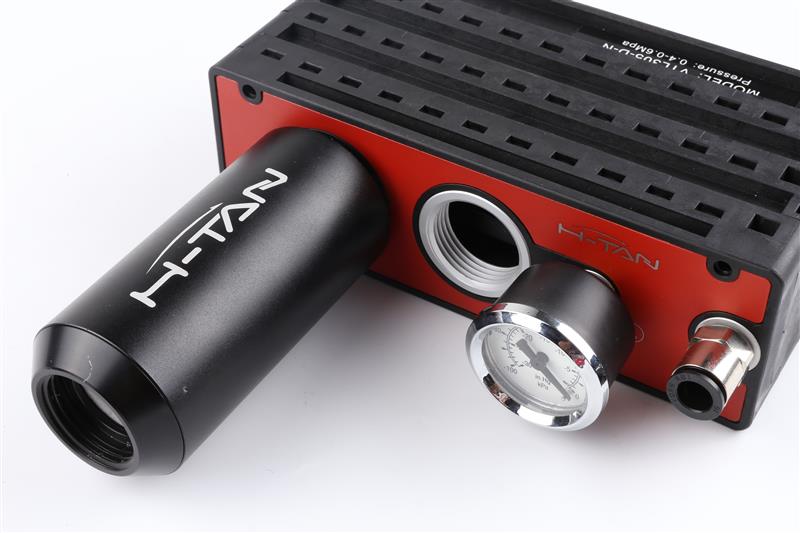

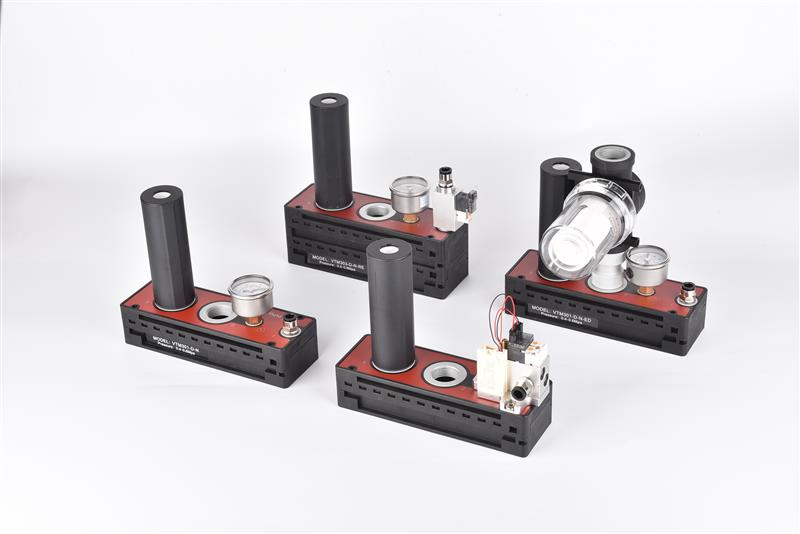

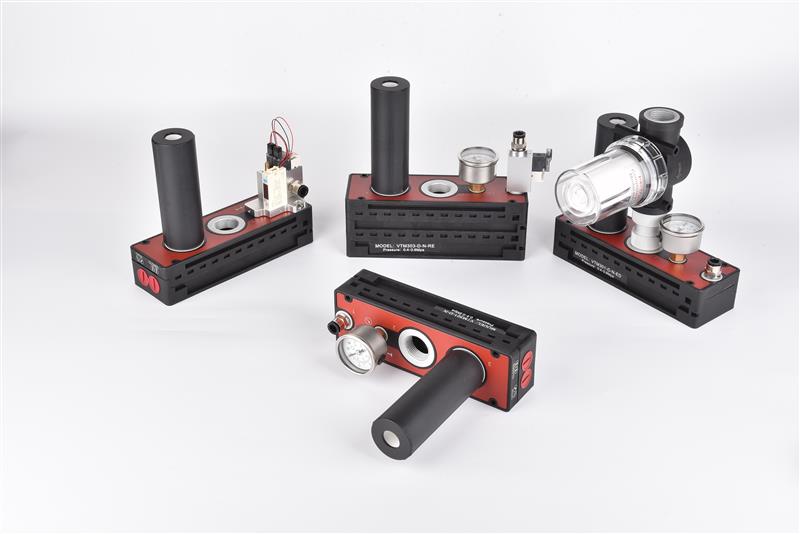

MULTISTAGE VACUUM GENERATOR

VT Series

●Quick evacuation in a low vacuum level range, reduce cost and shorten working cycle
●Producing large vacuum flow to handle porous workpieces fast and safely
●It can meet different requirements of vacuum flow in different working conditions
●It can be connected with different threads
●It is energy-saving when handling airtight workpieces
Inquiry Contact us

Features

Selection Guide

Specific

Dimensions

Mounting Accessories

Features

Multistage Vacuum Generator





● High efficient and energy-saving multistage nozzle design

● Large vacuum flow

● Internal vacuum cartridges can be stacked assembly

● Various specifications of air supply port and vacuum port

● Energy-saving control device is optional

Selection Guide

VT SERIES MULTISTAGE VACUUM GENERATOR

VTM          301          -D          -N          -A          -□          -□          -□

①          ②          ③          ④          ⑤          ⑥          ⑦          ⑧

①Series ②Specification ③Connection plate ④Sealing ⑤Non-return valve ⑥Control device ⑦Vacuum gauge ⑧Exhaust

VTM-High vacuum level

 301   Supply port Vacuum port Exhaust port N - NBR Default - Without non-return valve Default - Without control device Default - Mechanical gauge Default - Vent exhaust
(-94kPa) 302 D-301~304 G1/4 G3/4 G3/4 V - Fluorine rubber A - With non-return valve RE - RE supply control valve C - Digital display gauge P - Side exhaust

VTL-Large vacuum fellow

 303 B-301~304 NPSF1/4 NPT3/4 NPT3/4     EK - Energy-saving system
(-85kPa) 304             ED02-V - Vacuum control system

VTS-Low air supply

 305 D-301~304 G1/4 G1 G1
(-90kPa) 306 B-301~304 NPSF1/4 NPT1 NPT1

Specific

Multistage Vacuum Generator

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
VTM301 4.5 135 360 180 120 78 43.8 34.8 25.8 19.2 10.8 1.8 94
VTM302 270 720 360 240 156 87.6 69.6 51.6 38.4 21.6 3.6
VTM303 405 1080 540 360 234 131.4 104.4 77.4 57.6 32.4 5.4
VTM304 540 1440 720 480 312 175.2 139.2 103.2 76.8 43.2 7.2
VTM305 5 675 1800 850 580 390 219 174 129 96 54 9
VTM306 810 2160 1000 684 468 262.8 206.4 154.8 115.2 64.8 10.8
VTM301 6 185 360 260 140 130 95 60 30 16 8 1.5 94
VTM302 370 720 520 280 156 190 120 60 32 16 3
VTM303 610 1080 780 420 234 285 180 90 48 24 4.5
VTM304 720 1440 1040 560 312 380 240 120 64 32 6
VTM305 780 1800 1300 700 390 475 300 150 80 40 7.5
VTM306 830 2160 1560 840 468 570 360 180 96 48 9

●Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
VTM301 4.5 135 - 0.022 0.06 0.11 0.21 0.4 0.65 0.95 1.6 4 94
VTM302 270 - 0.014 0.031 0.06 0.1 0.2 0.34 0.5 0.8 2.5
VTM303 405 - 0.012 0.029 0.058 0.095 0.18 0.31 0.46 0.59 1.5
VTM304 540 - 0.01 0.025 0.043 0.075 0.11 0.19 0.27 0.45 1.2
VTM305 5 675 - 0.006 0.015 0.029 0.052 0.085 0.145 0.202 0.33 1
VTM306 810 - 0.005 0.013 0.027 0.045 0.07 0.105 0.23 0.46 0.9
VTM301 6 185 - 0.018 0.05 0.08 0.018 0.25 0.4 0.62 1.55 - 94
VTM302 370 - 0.01 0.022 0.048 0.08 0.11 0.2 0.35 0.78 -
VTM303 610 - 0.009 0.019 0.045 0.075 0.13 0.18 0.31 0.7 -
VTM304 720 - 0.007 0.018 0.038 0.055 0.08 0.12 0.19 0.47 -
VTM305 780 - 0.005 0.013 0.026 0.045 0.062 0.115 0.194 0.56 -
VTM306 830 - 0.003 0.009 0.014 0.03 0.06 0.095 0.2 0.8 -

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
VTL301 6 105 355 240 160 115 65 42 34 20 8 - 85
VTL302 210 710 480 320 230 130 85 65 40 16 -
VTL303 315 1065 720 480 370 170 120 70 52 25 -
VTL304 420 1420 960 640 400 215 135 90 77 29 -
VTL305 525 1775 1130 800 495 265 180 130 85 34 -
VTL306 630 2130 1310 960 570 300 216 160 92 42 -

●Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
VTM301 6 105 - 0.03 0.06 0.1 0.2 0.39 0.58 0.87 1.2 - 94
VTM302 210 - 0.018 0.039 0.066 0.12 0.2 0.31 0.51 0.95 -
VTM303 315 - 0.01 0.02 0.04 0.08 0.12 0.2 0.31 0.75 -
VTM304 420 - 0.008 0.015 0.032 0.05 0.09 0.13 0.22 0.4 -
VTM305 525 - 0.006 0.016 0.026 0.045 0.078 0.11 0.18 0.33 -
VTM306 630 - 0.005 0.013 0.024 0.04 0.071 0.1 0.16 0.24 -

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
VTS301 3.5 123 336 150 108 66 39 30 21 15 6 - 90
VTS302 240 672 300 216 132 78 60 42 30 12 -
VTS303 360 1008 450 324 198 117 90 63 45 18 -
VTS304 480 1344 600 432 264 156 120 84 60 24 -
VTS305 600 1680 678 516 330 195 150 105 75 30 -
VTS306 720 2016 768 618 396 234 180 126 90 36 -

●Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
VTS301 3.5 123 - 0.02 0.06 0.12 0.25 0.45 0.7 1 1.6 4 90
VTS302 240 - 0.01 0.03 0.06 0.13 0.23 0.35 0.5 0.8 2
VTS303 360 - 0.007 0.02 0.04 0.08 0.15 0.23 0.33 0.53 1.33
VTS304 480 - 0.005 0.015 0.03 0.06 0.11 0.18 0.25 0.4 1
VTS305 600 - 0.004 0.014 0.028 0.05 0.09 0.14 0.2 0.32 0.8
VTS306 720 - 0.022 0.013 0.025 0.04 0.08 0.12 0.17 0.27 0.67

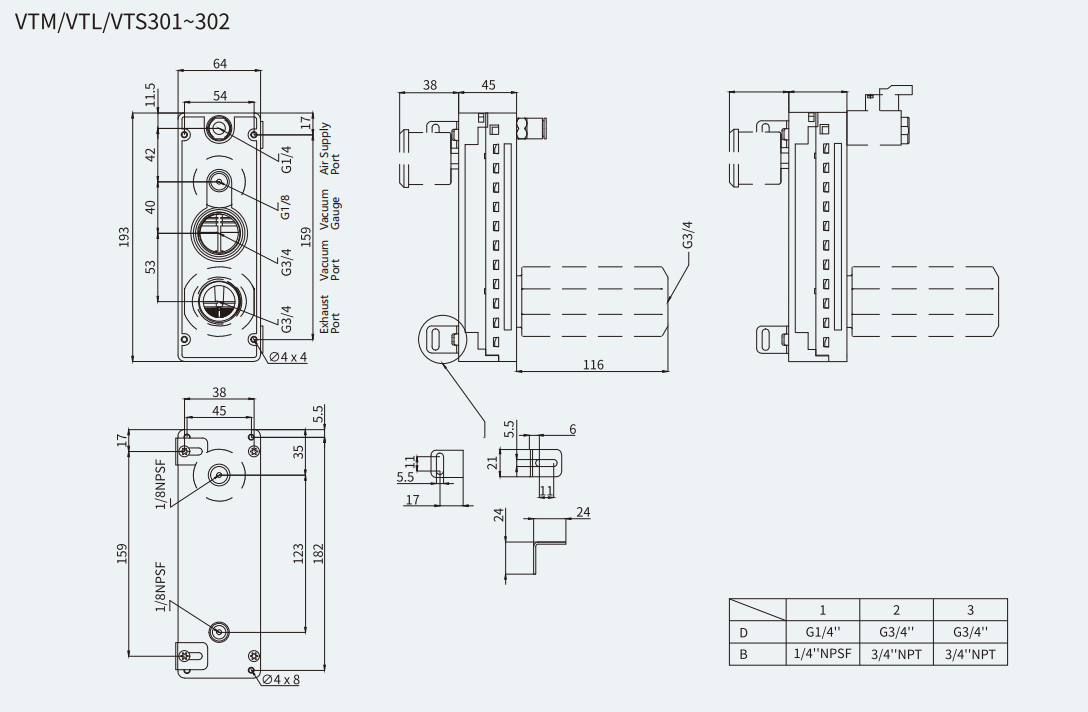

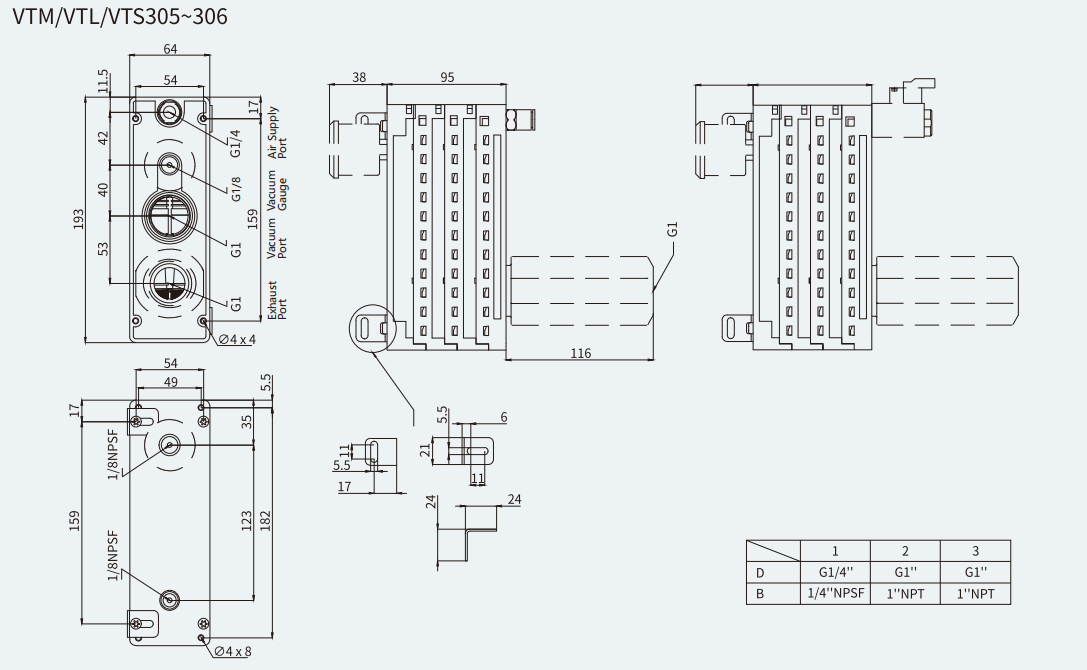

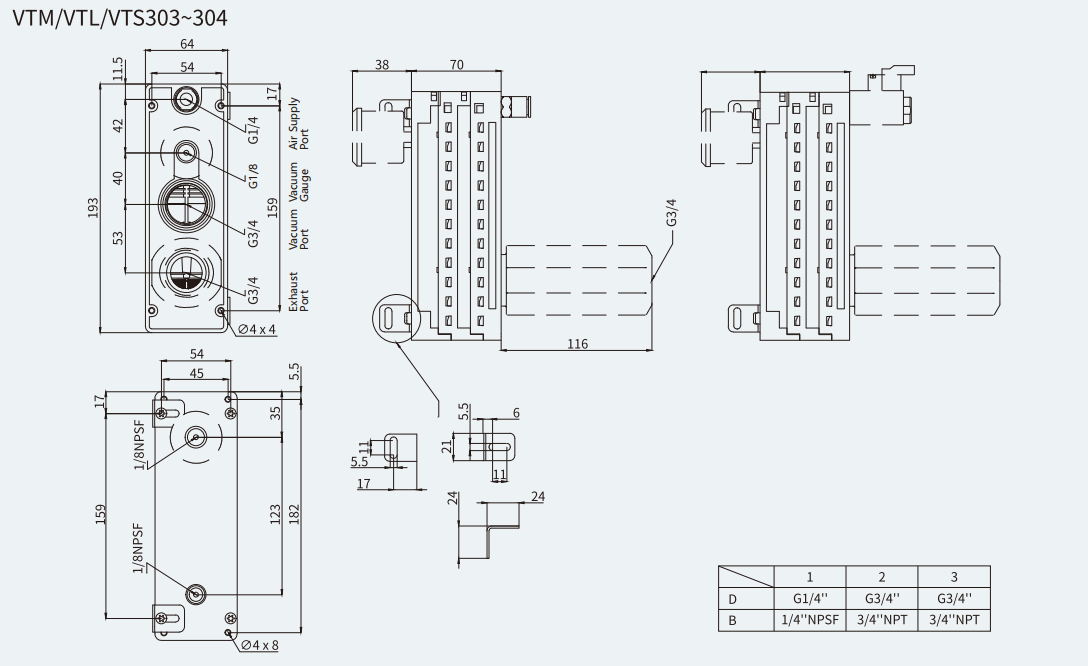

Dimensions

Multistage Vacuum Generator

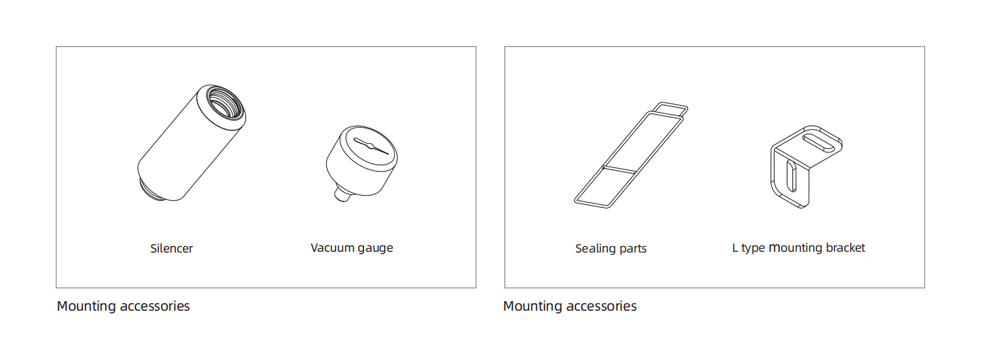

Mounting Accessories

Multistage Vacuum Generator

●Mounting accessory selection

Item Model Remark
Silencer RS06-P/RS10-P 301~304/305~306
Vacuum gauge RP40-YY -
Sealing ring VTM-10 -
Mounting accessory kit VTM(301-302) (2 brackets,4 Screws,1 φ8 one-touch fitting) 301/302
Mounting accessory kit VTM(303-306) (2 brackets,4 Screws,1 φ10 one-touch fitting) 303/304/305/306
