HVT Series

LARGE FLOW VACUUM GENERATOR

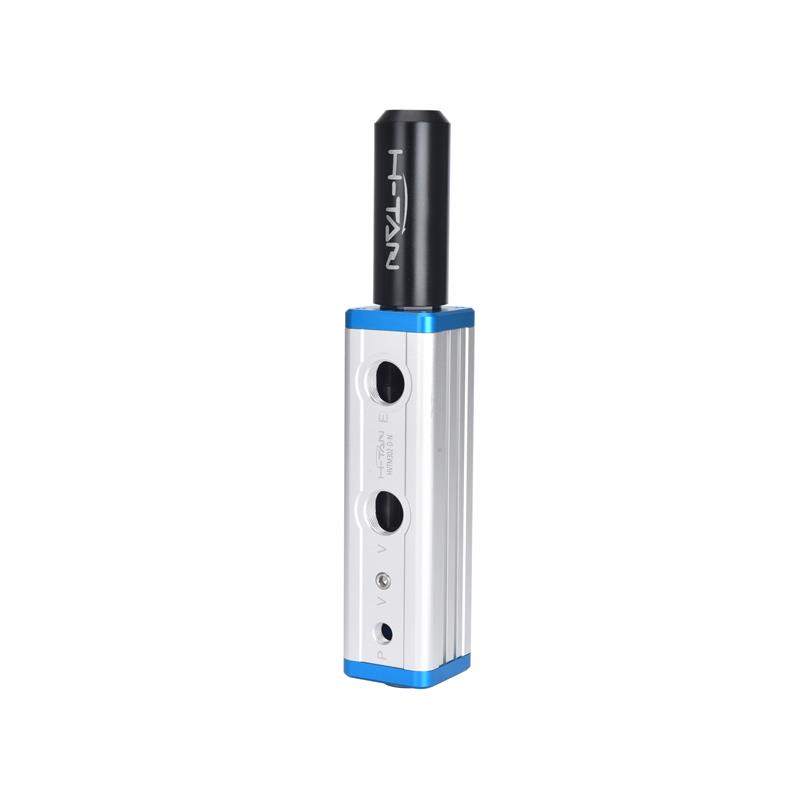

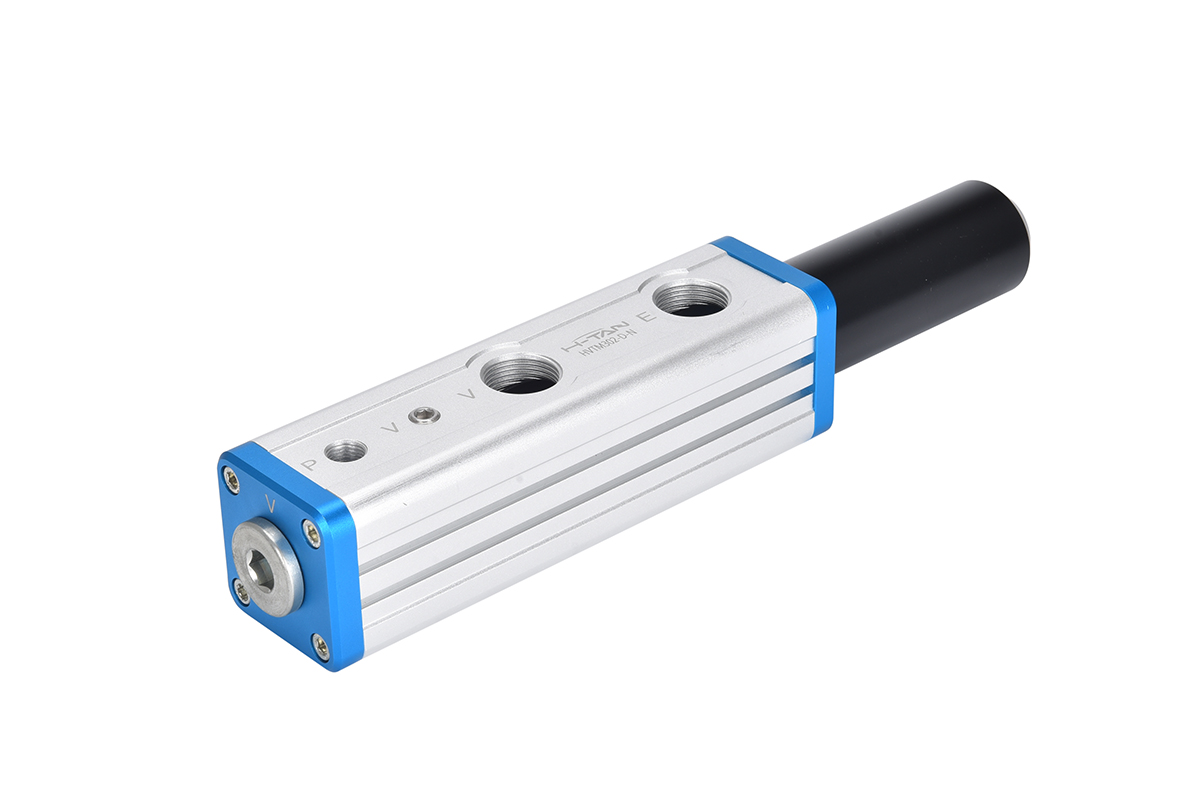

HVT Series

Easy installation, easy maintenance, it can be replaced by users themselves
Various connection specifications can meet different customized requirements
Multistage vacuum generator, the housing is made of aluminum alloy
Inquiry Contact us

Features

Selection Guide

Specific

Dimensions

Features

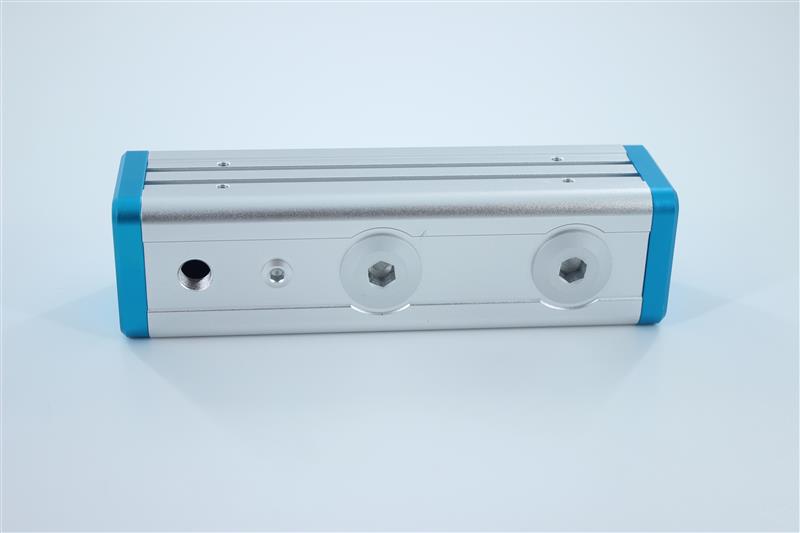

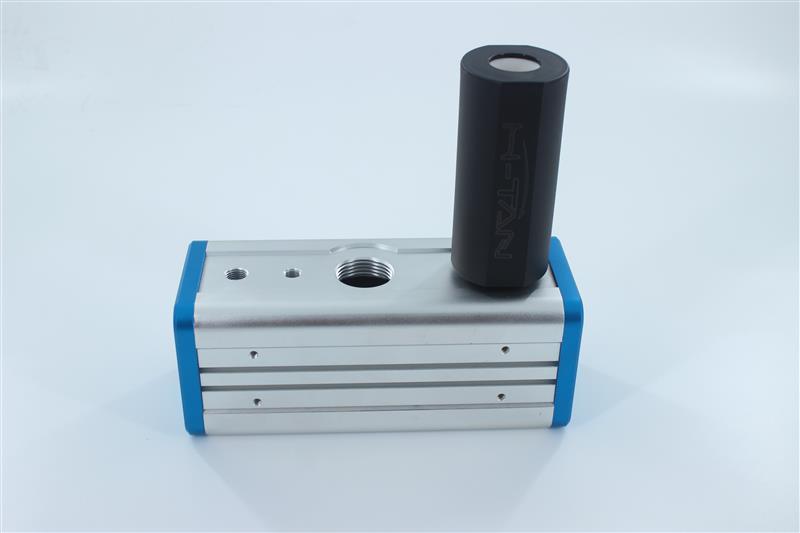

Large Flow Vacuum Generator



Built-in vacuum cartridge, greatly improve the energy consumption ratio

Suitable connection specifications can be configured according to different vacuum flow requirements

Various connection specifications can meet different requirements

Selection Guide

HVTG SERIES MULTISTAGE VACUUM GENERATOR

HVTM          301          -D          -N          -A          -□

①          ②          ③          ④          ⑤          ⑥

①Series ②Specification ③Connection plate
 ④Sealing ⑤Non-return valve ⑥Control device

HVTM - High vacuum level (-94kPa)

 301   Supply port Vacuum port Exhaust port N - NBR / - Default,without non-return valve / - Default,without control device
302 D - 301~304 G1/4 G3/4 G3/4

HVTL - Large vacuum fellow (-85kPa)

 303 B - 301~304 NPSF1/4 NPT3/4 NPT3/4
304 D - 305~306 G1/4 G1 G1 V - Fluorine rubber  A - With non-return valve RE - RE Supply Valve

HVTS - Low air supply (-90kPa)

 305 B - 305~306 NPSF1/4 NPT1 NPT1
306

Specific

HVTG SERIES MULTISTAGE VACUUM GENERATOR

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
HVTM301 4.5 135 360 180 120 78 43.8 34.8 25.8 19.2 10.8 1.8 94
HVTM302 270 720 360 240 156 87.6 69.6 51.6 38.4 21.6 3.6
HVTM303 405 1080 540 360 234 131.4 104.4 77.4 57.6 32.4 5.4
HVTM304 540 1440 720 480 312 175.2 139.2 103.2 76.8 43.2 7.2
HVTM305 5 675 1800 850 580 390 219 174 129 96 54 9
HVTM306 810 2160 1000 684 468 262.8 206.4 154.8 115.2 64.8 10.8
HVTM301 6 185 360 260 140 130 95 60 30 16 8 1.5 94
HVTM302 370 720 520 280 156 190 120 60 32 16 3
HVTM303 610 1080 780 420 234 285 180 90 48 24 4.5
HVTM304 720 1440 1040 560 312 380 240 120 64 32 6
HVTM305 780 1800 1300 700 390 475 300 150 80 40 7.5
HVTM306 830 2160 1560 840 468 570 360 180 96 48 9

●Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
HVTM301 4.5 135 - 0.022 0.06 0.11 0.21 0.4 0.65 0.95 1.6 4 94
HVTM302 270 - 0.014 0.031 0.06 0.1 0.2 0.34 0.5 0.8 2.5
HVTM303 405 - 0.012 0.029 0.058 0.095 0.18 0.31 0.46 0.59 1.5
HVTM304 540 - 0.01 0.025 0.043 0.075 0.11 0.19 0.27 0.45 1.2
HVTM305 5 675 - 0.006 0.015 0.029 0.052 0.085 0.145 0.202 0.33 1
HVTM306 810 - 0.005 0.013 0.027 0.045 0.07 0.105 0.23 0.46 0.9
HVTM301 6 185 - 0.018 0.05 0.08 0.018 0.25 0.4 0.62 1.55 - 94
HVTM302 370 - 0.01 0.022 0.048 0.08 0.11 0.2 0.35 0.78 -
HVTM303 610 - 0.009 0.019 0.045 0.075 0.13 0.18 0.31 0.7 -
HVTM304 720 - 0.007 0.018 0.038 0.055 0.08 0.12 0.19 0.47 -
HVTM305 780 - 0.005 0.013 0.026 0.045 0.062 0.115 0.194 0.56 -
HVTM306 830 - 0.003 0.009 0.014 0.03 0.06 0.095 0.2 0.8 -

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
HVTL301 6 105 355 240 160 115 65 42 34 20 8 - 85
HVTL302 210 710 480 320 230 130 85 65 40 16 -
HVTL303 315 1065 720 480 370 170 120 70 52 25 -
HVTL304 420 1420 960 640 400 215 135 90 77 29 -
HVTL305 525 1775 1130 800 495 265 180 130 85 34 -
HVTL306 630 2130 1310 960 570 300 216 160 92 42 -

●Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
HVTL301 6 105 - 0.03 0.06 0.1 0.2 0.39 0.58 0.87 1.2 - 85
HVTL302 210 - 0.018 0.039 0.066 0.12 0.2 0.31 0.51 0.95 -
HVTL303 315 - 0.01 0.02 0.04 0.08 0.12 0.2 0.31 0.75 -
HVTL304 420 - 0.008 0.015 0.032 0.05 0.09 0.13 0.22 0.4 -
HVTL305 525 - 0.006 0.016 0.026 0.045 0.078 0.11 0.18 0.33 -
HVTL306 630 - 0.005 0.013 0.024 0.04 0.071 0.1 0.16 0.24 -

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
HVTS301 3.5 123 336 150 108 66 39 30 21 15 6 - 90
HVTS302 240 672 300 216 132 78 60 42 30 12 -
HVTS303 360 1008 450 324 198 117 90 63 45 18 -
HVTS304 480 1344 600 432 264 156 120 84 60 24 -
HVTS305 600 1680 678 516 330 195 150 105 75 30 -
HVTS306 720 2016 768 618 396 234 180 126 90 36 -

●Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
HVTS301 3.5 123 - 0.02 0.06 0.12 0.25 0.45 0.7 1 1.6 4 90
HVTS302 240 - 0.01 0.03 0.06 0.13 0.23 0.35 0.5 0.8 2
HVTS303 360 - 0.007 0.02 0.04 0.08 0.15 0.23 0.33 0.53 1.33
HVTS304 480 - 0.005 0.015 0.03 0.06 0.11 0.18 0.25 0.4 1
HVTS305 600 - 0.004 0.014 0.028 0.05 0.09 0.14 0.2 0.32 0.8
HVTS306 720 - 0.022 0.013 0.025 0.04 0.08 0.12 0.17 0.27 0.67

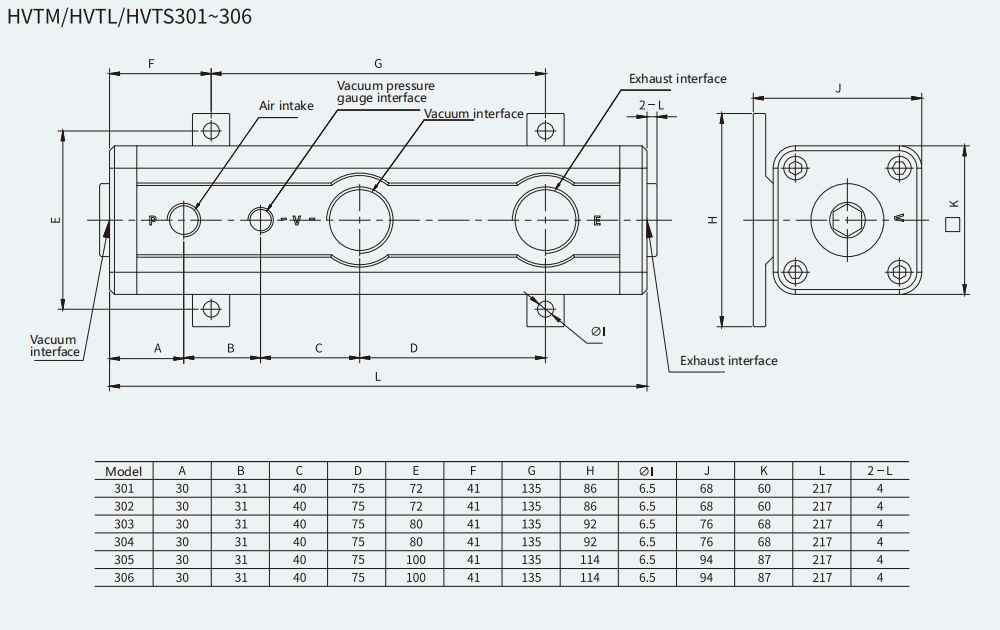

Dimensions

Large Flow Vacuum Generator
