Features

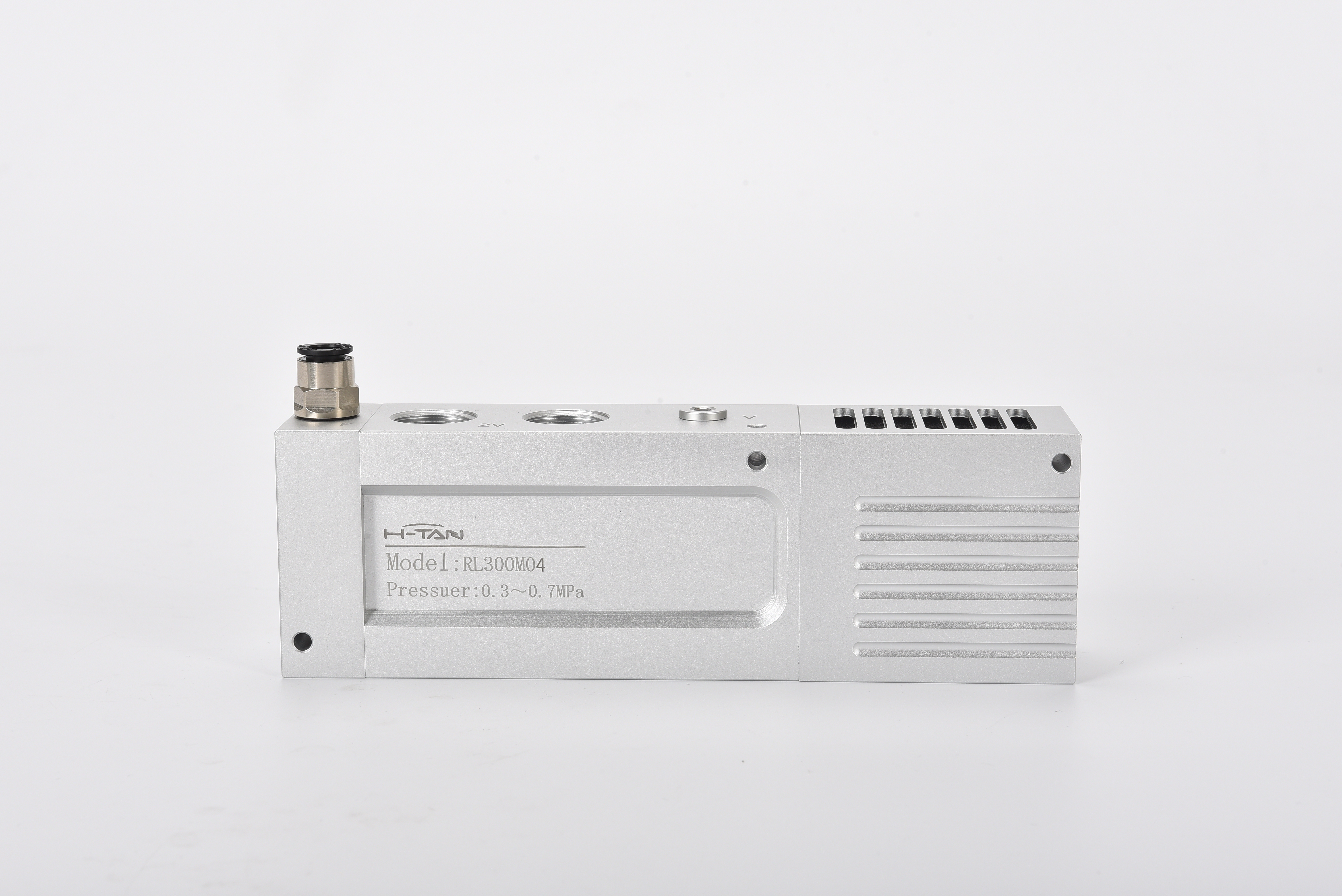

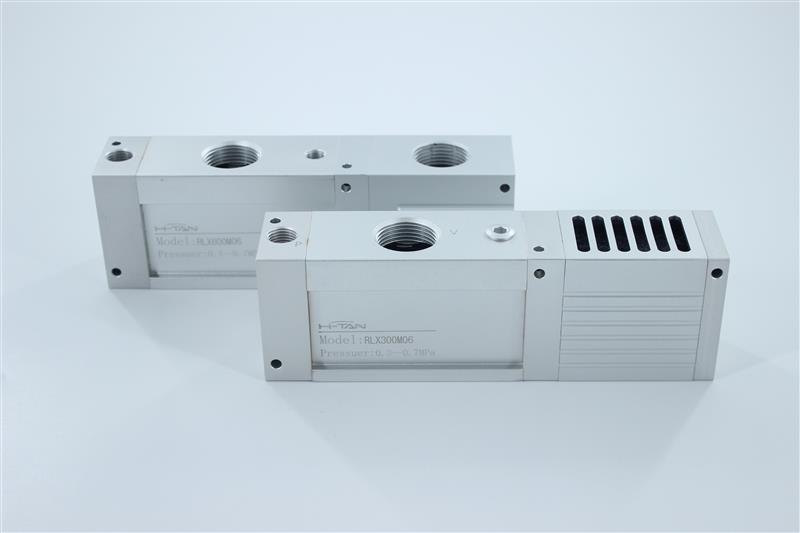

Multistage Vacuum Generator
●Multi-level and energy-efficient design

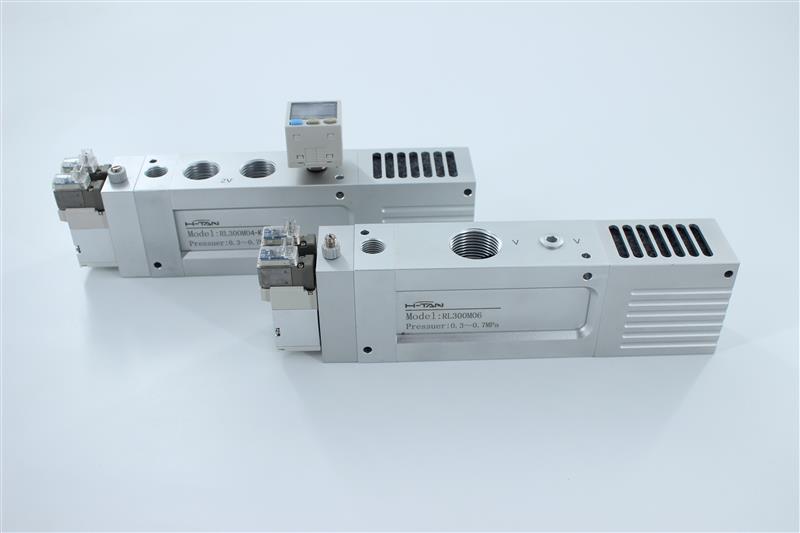

●Optional solenoid valve and pressure switch
●Built-in vacuum filter and silencer
●Vertical and lateral mounting holes for option
Selection Guide
RL SERIES MULTISTAGE VACUUM GENERATOR
RL 300 M 06 -□ -K1 -□
① ② ③ ④ ⑤ ⑥ ⑦
| ①Series | ②Specification | ③Standard air supply pressure & instruction | ④Vacuum port | ⑤Exhaust port | ⑥Control device | ⑦Vacuum gauge | |||
| RL | 300 - 300NL/min | RL300 | RL600 | RL600 | 06 - 1×G3/4 | / - Default,silencer | / - Default,Without control device | / - Withoutl gauge | |
| Without valve/K1/K2 | Without valve | K1/K2 | 04 - 2×G1/2 | P - G1 exhaust port | K1 - With supply and break valve | C - Digital display gauge | |||
| 600 - 600NL/min | M | 4.5bar | 4.5bar | 5bar | K2 - With supply valve | ||||
| L | 6bar | 6bar | 6.5bar | ||||||
| S | 3.5bar | 3.5bar | 4bar | ||||||
Specific
Multistage Vacuum Generator
●Technical parameters
| Item | RL300M | RL300L | RL300S | RL600M | RL600L | RL600S | |
| Standard supply pressure bar | Valveless | 4.5 | 6 | 3.5 | 4.5 | 6 | 3.5 |
| K1 | 4.5 | 6 | 3.5 | 5 | 6.5 | 4 | |
| K2 | 4.5 | 6 | 3.5 | 5 | 6.5 | 4 | |
| Max. Vacuum level - kPa | 94 | 85 | 90 | 94 | 85 | 90 | |
| Max. Vacuum Flow NL/min | 300 | 600 | |||||
| Air Consumption NL/min | 135 | 105 | 123 | 270 | 210 | 246 | |
| Supply pressure range bar |
3~7 | ||||||
| Operating temperature ℃ |
0~50 | ||||||
| working medium |
Compressed Air | ||||||
Standard Specifications Of Control Device
| Item | Parameter | Item | Parameter |
| Operating pressure range | 3~6bar | Installation method | Fixed Position |
| Operating temperature | 0~50℃ | Stamping/vibration resistance | 150/ 30m/s² |
| Response time (5 bar) | within 25ms | Structural protection | Dustproof |
| Max. action frequency | 5Hz | Rated voltage | DC24V |
| Manual operation | Non locking push type | Lubricating oil | Not Required |
Dimensions

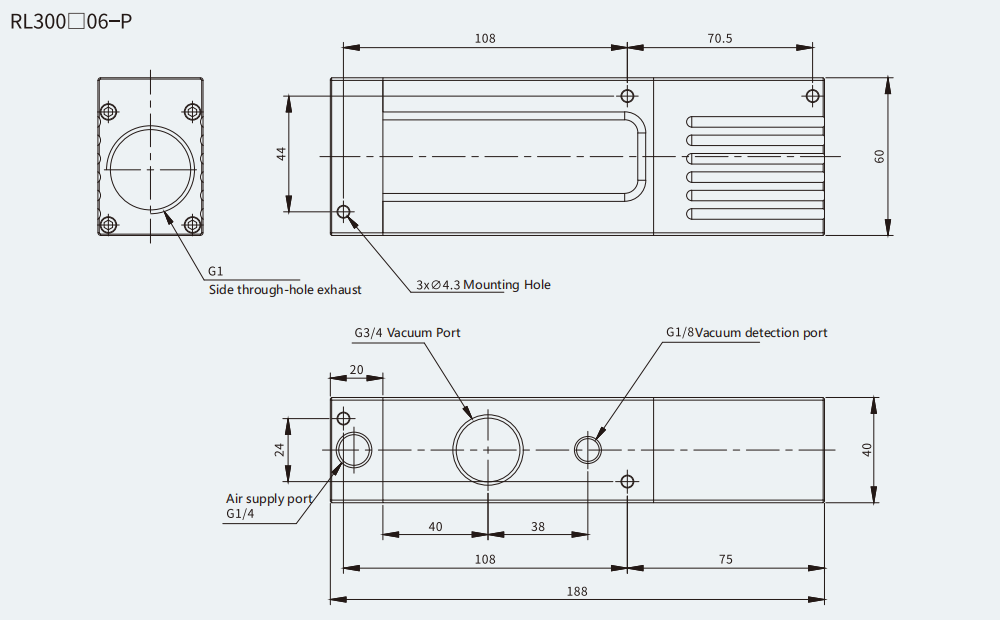

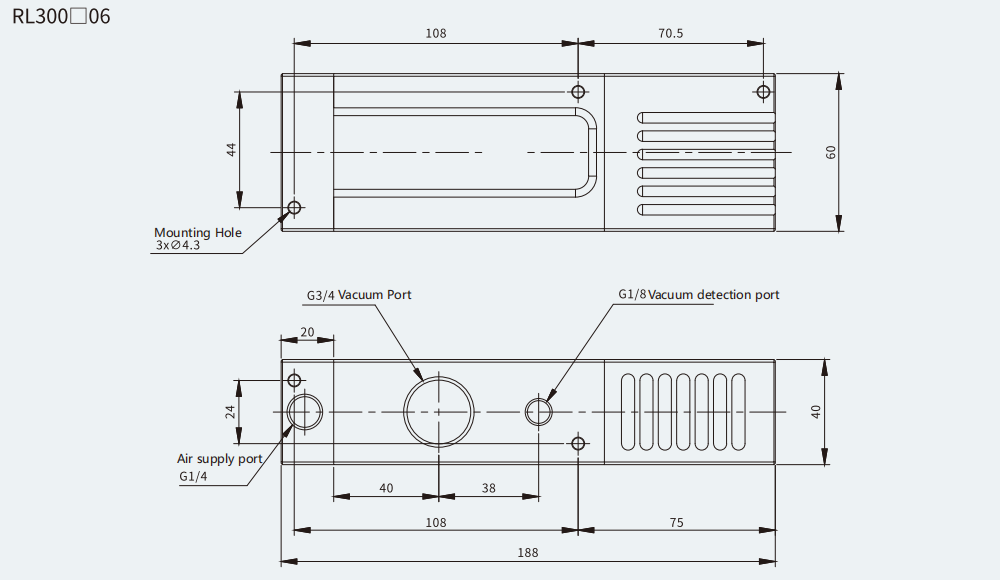

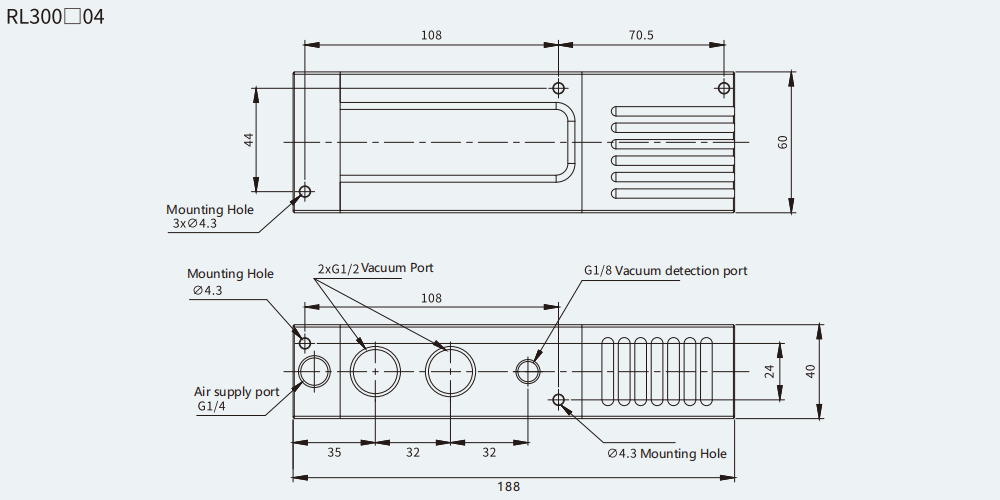

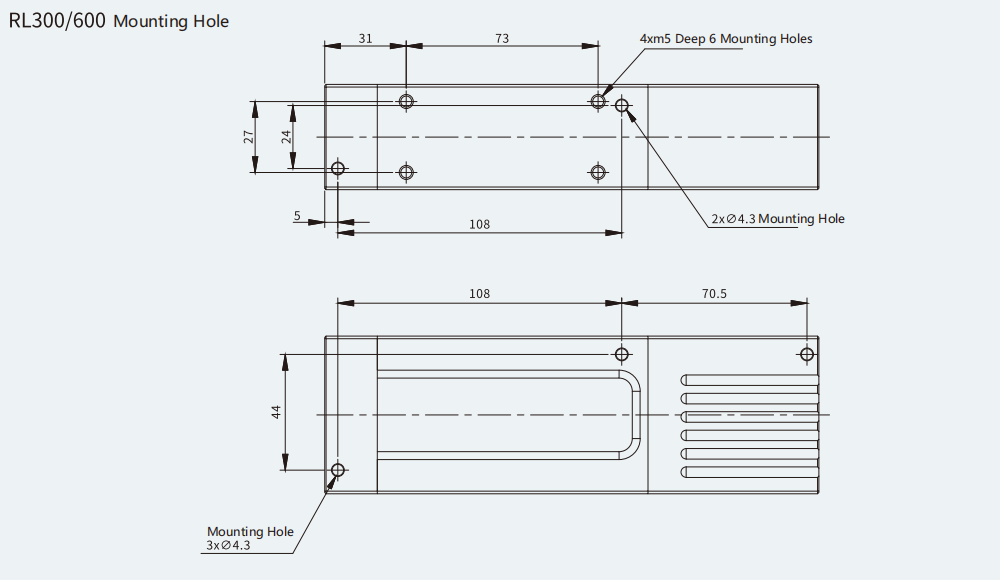

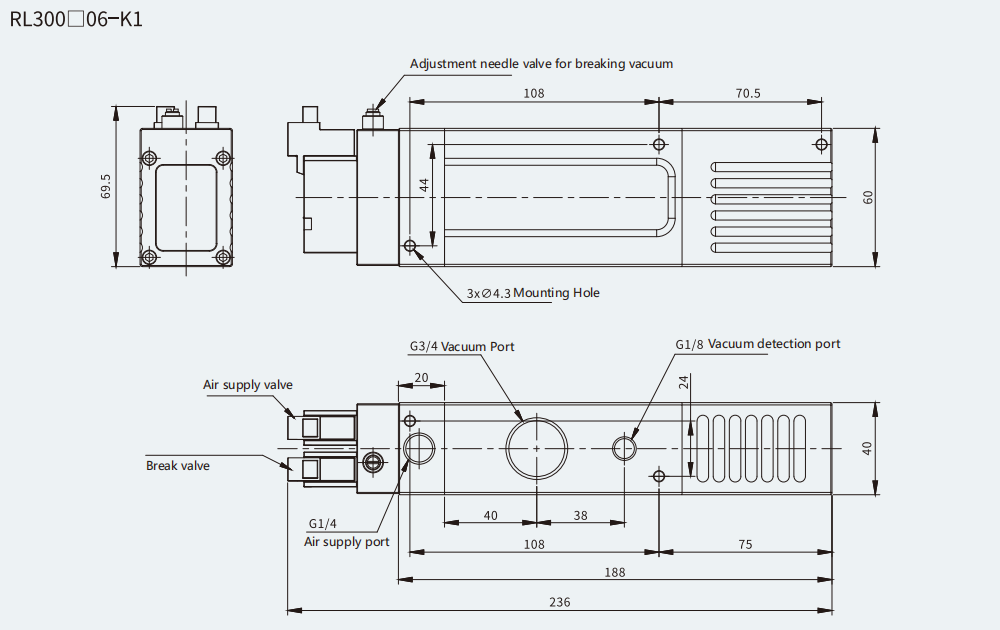

Multistage Vacuum Generator
