Features

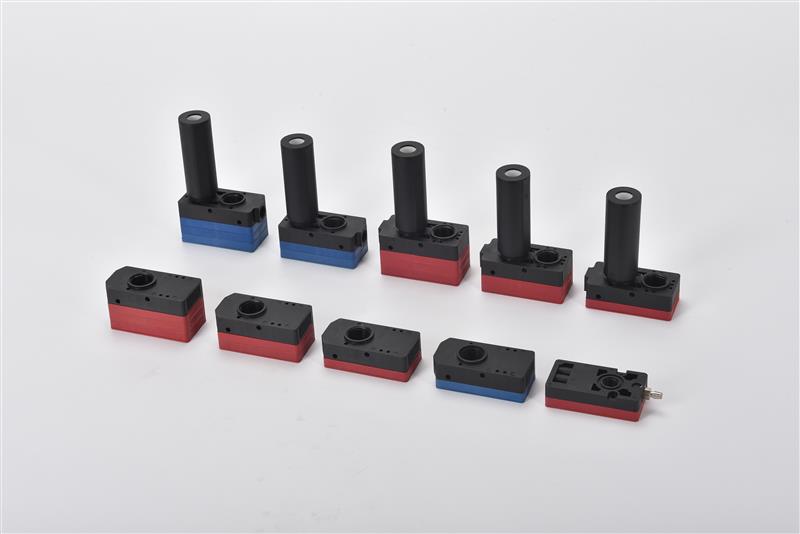

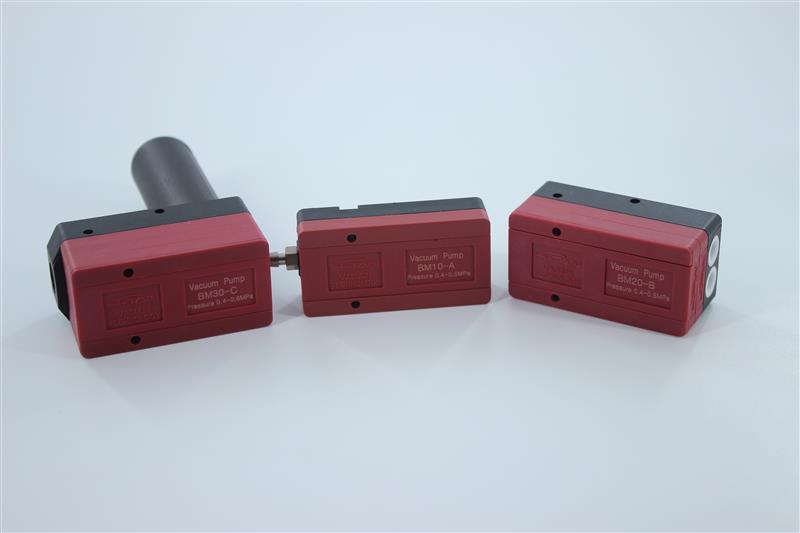

Mini Vacuum Generator
●Energy-efficient nozzle design
●Small size, lightweight, can be connected with a suction cup directly
●Built-in silencers and external silencers are optional
Selection Guide
BM/BX SERIES BASIC VACUUM GENERATOR
BM 05 -A -V -□
① ② ③ ④ ⑤
| ① Series | ② Specification | ③ Port connection | ④ Sealing | ⑤Control device |
| BM - Universal type（-85kPa） | 05 | A | Default - NBR | Default - Without control device |
| 10 | B | |||
| BX - High vacuum level type（-92kPa） | 20 | C | F - Fluorine rubber | RE - RE supply valve |
| 30 | （Refer to table1） |
Selection - BM/BX
| Model | A | B | C |
Specification |
| BM/X05-□ | BM/X5-A | BM/X5-B | BM/X5-C |
-A - φ6 tracheal joints G1/8 internal thread built-in Silencer -B - G1/8 internal thread G3/8 internal thread built-in Silencer -C - G1/8 internal thread G3/8 internal thread external Silencer |
| BM/X10-□ | BM/X10-A | BM/X10-B | BM/X10-C | |
| BM/X20-□ | - | BM/X20-B | BM/X20-C | |
| BM/X30-□ | - | BM/X30-B | BM/X30-C |
Technical parameters - BM
| Model | Rated air supply pressure bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Noise level dB(A) |
Weight g |
Air supply port P | Recommended hose dia.(mm) Vacuum port |
| BM05 | 4.5~6.0 | 85 | 36~38 | 12~28 | 50~60 | 36~55 | φ6 | φ8 |
| BM10 | 4.5~6.0 | 85 | 72~76 | 24~36 | 35.5~54.5 | φ6 | φ10 | |
| BM20 | 4.5~6.0 | 85 | 144~152 | 48~72 | 50~67 | φ8 | φ12 | |
| BM30 | 4.5~6.0 | 85 | 216~228 | 72~108 | 63~81 | φ8 | φ12 |
Technical parameters - BX
| Model | Rated air supply pressure bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Noise level dB(A) |
Weight g | Air supply port P | Recommended hose dia.(mm) Vacuum port |
| BX05 | 4.5~6.0 | 92 | 30~32 | 12~18 | 50~60 | 36~55 | φ6 | φ8 |
| BX10 | 4.5~6.0 | 92 | 60~64 | 36~42 | 35.5~54.5 | φ6 | φ10 | |
| BX20 | 4.5~6.0 | 92 | 120~128 | 72~84 | 50~67 | φ8 | φ12 | |
| BX30 | 5.0~6.0 | 92 | 180~192 | 108~126 | 63~81 | φ8 | φ12 |
Specific
MINI VACUUM GENERATOR
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| BM05 | 4.5 |
12 | 36 | 17.5 | 13 | 11 | 10 | 8 | 5 | 2.5 | 0.8 | - | 85 |
| BM10 | 24 | 72 | 42 | 27 | 23 | 20 | 16 | 11 | 5 | 1.3 | - | ||
| BM20 | 48 | 144 | 72 | 50 | 44 | 38 | 32 | 20 | 11 | 3 | - | ||
| BM30 | 5 | 86 | 175 | 106 | 82 | 72 | 58 | 44 | 32 | 16 | 5 | - | |
| BM05 | 6 |
18 | 38 | 26 | 16 | 14 | 10 | 8 | 6 | 2.4 | 0.66 | - | 85 |
| BM10 | 36 | 76 | 52 | 31 | 28 | 20 | 16 | 12 | 4.8 | 1.32 | - | ||
| BM20 | 72 | 152 | 99 | 62 | 54 | 40 | 32 | 22 | 10.5 | 2.7 | - | ||
| BM30 | 108 | 228 | 147 | 92 | 73 | 60 | 47 | 32 | 16 | 4.1 | - |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| BM05 | 4.5 |
12 | - | 0.11 | 0.42 | 0.95 | 1.66 | 2.5 | 3.65 | 5.25 | 7.89 | - | 85 |
| BM10 | 24 | - | 0.08 | 0.2 | 0.44 | 0.8 | 1.24 | 1.8 | 2.55 | 3.8 | - | ||
| BM20 | 48 | - | 0.04 | 0.12 | 0.23 | 0.41 | 0.65 | 0.93 | 1.33 | 2.03 | - | ||
| BM30 | 5 | 86 | - | 0.03 | 0.09 | 0.16 | 0.27 | 0.43 | 0.66 | 0.95 | 1.43 | - | |
| BM05 | 6 |
18 | - | 0.22 | 0.55 | 1 | 1.58 | 2.35 | 3.44 | 5.27 | 10.21 | - | 85 |
| BM10 | 36 | - | 0.11 | 0.28 | 0.5 | 0.8 | 1.18 | 1.72 | 2.63 | 5.16 | - | ||
| BM20 | 72 | - | 0.05 | 0.14 | 0.25 | 0.4 | 0.59 | 0.86 | 1.31 | 2.58 | - | ||
| BM30 | 108 | - | 0.04 | 0.01 | 0.186 | 0.44 | 0.44 | 0.65 | 0.9 | 1.9 | - |
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| BX05 | 4.5 |
18 | 30 | 15.5 | 10 | 9 | 9 | 6.5 | 5.5 | 3 | 1.5 | 0.5 | 92 |
| BX10 | 20 | 52 | 31 | 20 | 18 | 17 | 13 | 11 | 7 | 2.5 | 1.5 | ||
| BX20 | 79 | 100 | 62 | 38 | 32 | 30 | 22 | 14 | 12 | 8 | 3 | ||
| BX30 | 5 | 125 | 180 | 74 | 60 | 52 | 46 | 38 | 26 | 19 | 8 | 6 | |
| BX05 | 6 |
21 | 32 | 18 | 9 | 8 | 7 | 6 | 5 | 3 | 1.2 | 0.45 | 92 |
| BX10 | 40 | 62 | 36 | 18 | 16 | 14 | 11 | 9 | 6 | 2.4 | 0.9 | ||
| BX20 | 88 | 124 | 72 | 35 | 32 | 27 | 22 | 18 | 12 | 4.8 | 1.8 | ||
| BX30 | 137 | 185 | 108 | 52 | 47 | 41 | 41 | 26 | 18 | 7.2 | 2.7 |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| BX05 | 4.5 |
18 | - | 0.13 | 0.6 | 1.26 | 2.3 | 3.2 | 4.5 | 6.15 | 8.5 | 15.5 | 92 |
| BX10 | 20 | - | 0.11 | 0.3 | 0.65 | 1.1 | 1.55 | 2.15 | 2.85 | 4.7 | 10.2 | ||
| BX20 | 79 | - | 0.09 | 0.16 | 0.32 | 0.55 | 0.8 | 1.5 | 1.8 | 2.7 | 5 | ||
| BX30 | 5 | 125 | - | 0.06 | 0.12 | 0.23 | 0.46 | 0.53 | 0.76 | 1.1 | 1.6 | 2.9 | |
| BX05 | 6 |
21 | - | 0.26 | 0.8 | 1.16 | 2.4 | 3.56 | 4.9 | 6.9 | 10.16 | 19.2 | 92 |
| BX10 | 40 | - | 0.13 | 0.4 | 0.76 | 1.2 | 1.78 | 2.45 | 3.44 | 5.08 | 9.6 | ||
| BX20 | 88 | - | 0.06 | 0.2 | 0.38 | 0.6 | 0.89 | 1.23 | 1.72 | 2.54 | 4.8 | ||
| BX30 | 137 | - | 0.05 | 0.15 | 0.28 | 0.44 | 0.67 | 0.92 | 1.3 | 1.9 | 3.6 |

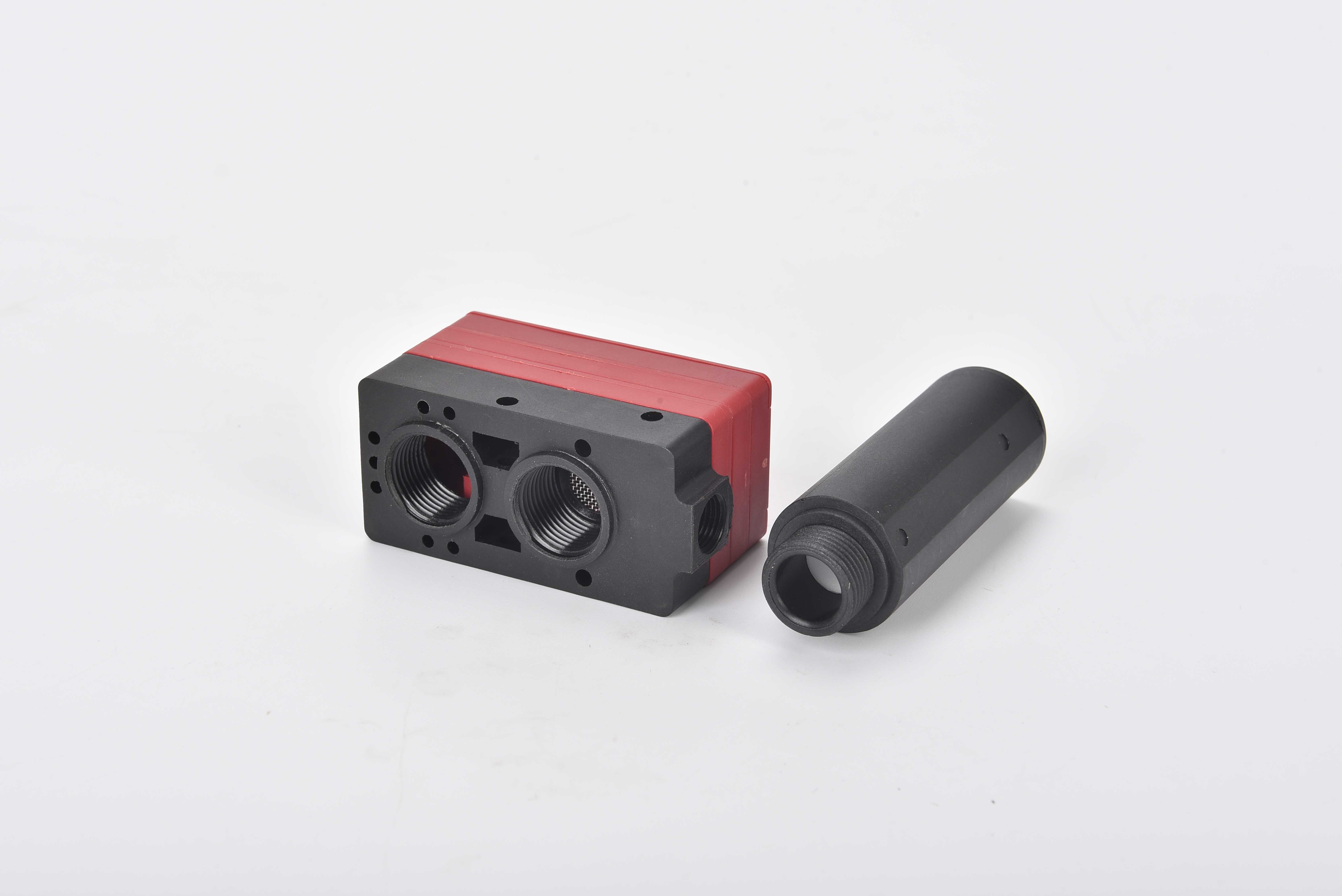

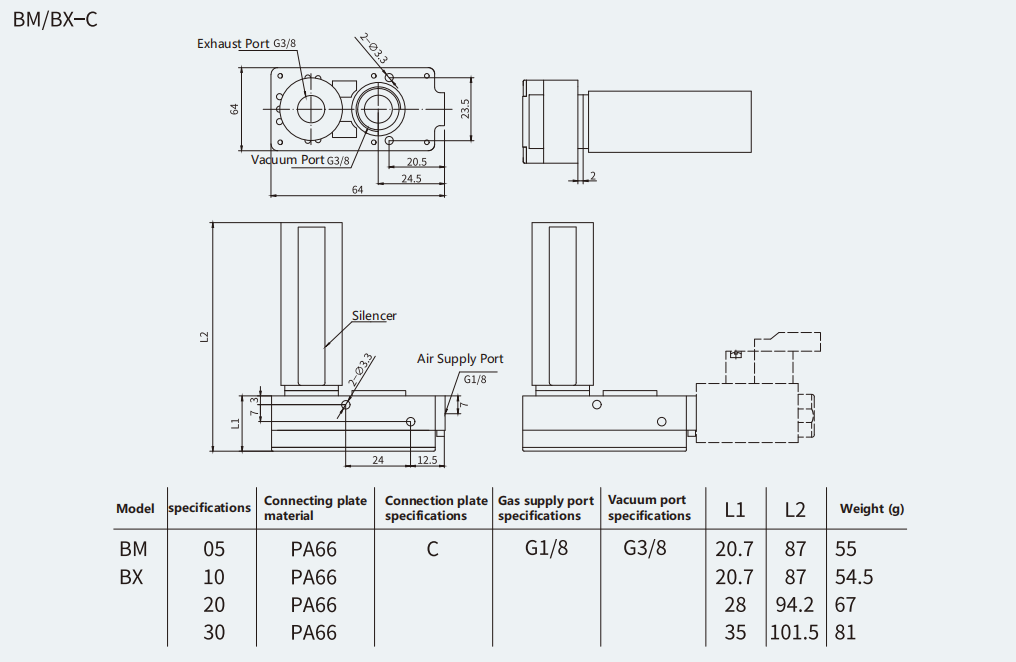

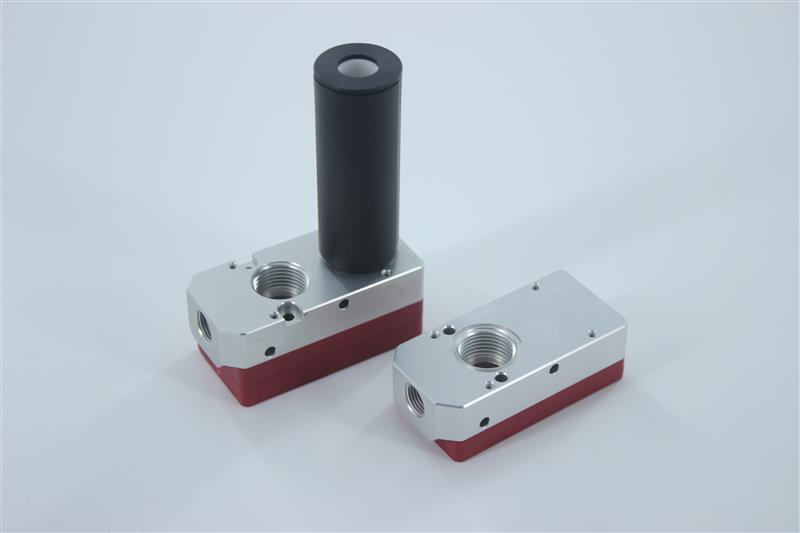

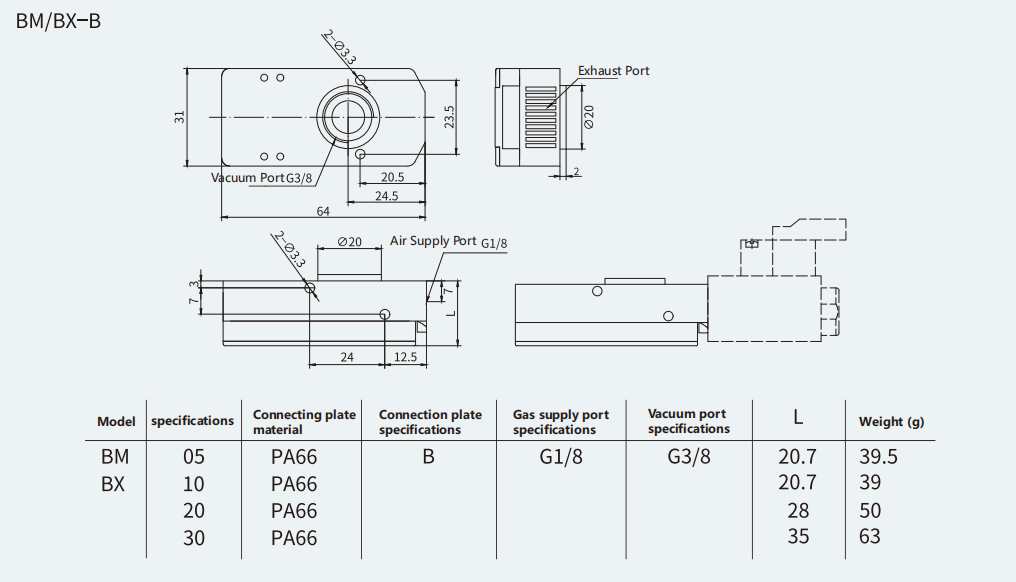

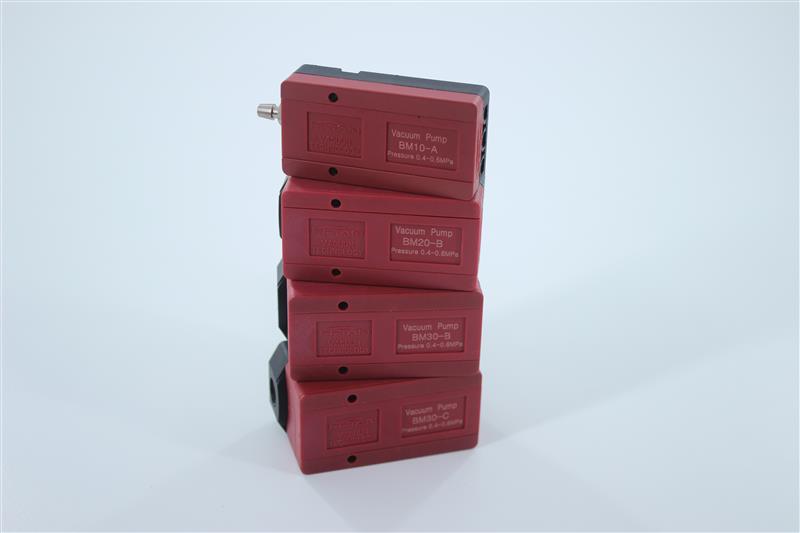

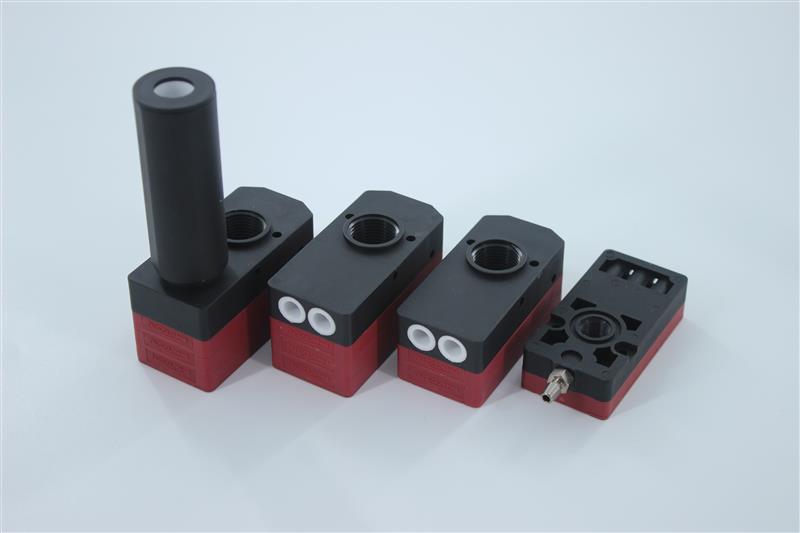

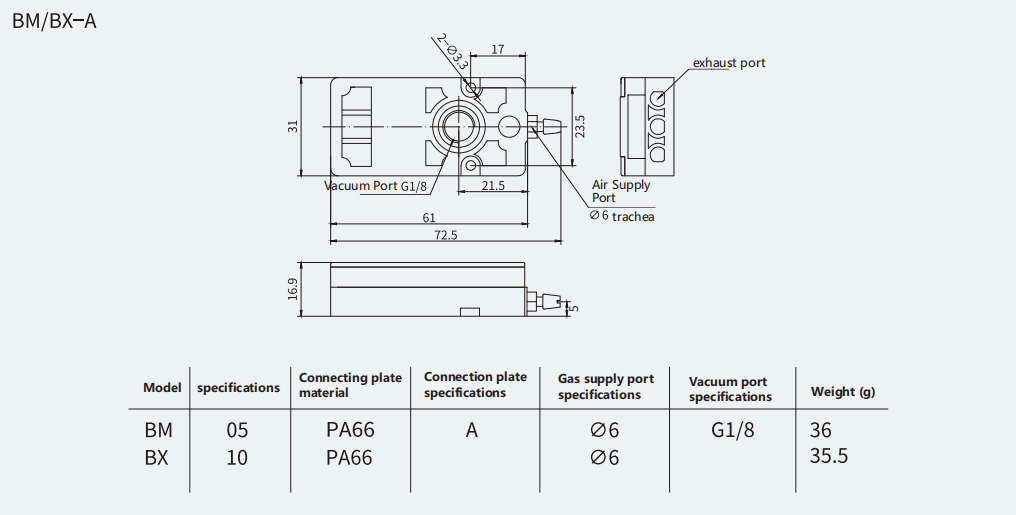

Dimensions
MINI VACUUM GENERATOR
