Features

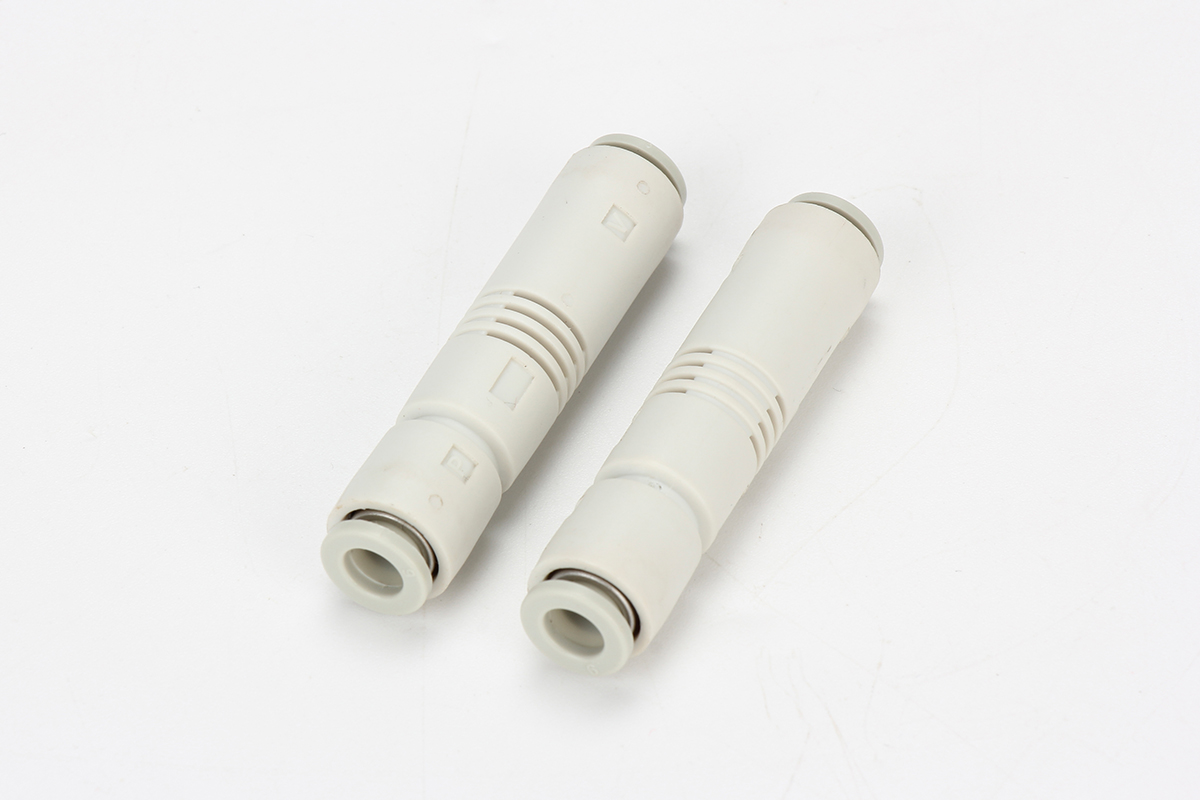

BASIC VACUUM GENERATOR
●Axial connection
●Plastic housing
●High vacuum type and large flow type for option
Selection Guide
HZH SERIES BASIC VACUUM GENERATOR
HZU 05 S -□
① ② ③ ④
| ① Series | ② Nozzle | ③ Specification | ④ Connection specification |
| HZU |
05 - φ0.5mm | S - High vacuum level type(-85kPa) |
/ - Default,φ6 one-touch fitting |
| 07 - φ0.7mm | L - Large vacuum flow type(-48kPa) | 04 - φ4 one-touch fitting |
Technical parameters
| Model |
Nozzle dia. mm |
Air supply pressure bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Noise dB(A) |
Weight g |
Recommended hose dia.(mm) |
|
| Air supply port P | Vacuum port V | ||||||||
| HZU05S | 0.5 | 4.5 | 85 |
7 | 9 | 68 | 6.5 | 6 | 6 |
| HZU07S | 0.7 | 12 | 19 | 68 | 7 | 6 | 6 | ||
| HZU05L | 0.5 | 48 | 12 | 9 | 70 | 6.5 | 6 | 6 | |
| HZU07L | 0.7 | 21 | 19 | 70 | 7 | 8 | 8 | ||
Specific
Basic Vacuum Generator
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HZU05S | 4.5 |
9 | 7 | 6 | 5 | 4 | 3.5 | 2.5 | 1.8 | 1 | 0.4 | - | 85 |
| HZU07S | 19 | 12 | 9.5 | 8.5 | 7.2 | 6 | 5.5 | 4 | 2 | 0.4 | - | ||
| HZU05L | 9 | 12 | 10 | 8 | 5.5 | 3 | 1 | - | - | - | - | 48 | |
| HZU07L | 19 | 21 | 18.5 | 18.5 | 11.5 | 8 | 1.5 | - | - | - | - |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HZU05S | 4.5 |
9 | - | 0.9 | 2.8 | 5.5 | 10 | 22.5 | - | - | - | - | 85 |
| HZU07S | 19 | - | 0.53 | 1.4 | 2.17 | 5 | 8.7 | 18 | - | - | - | ||
| HZU05L | 9 | - | 0.6 | 1.5 | 2.9 | 8 | 14 | - | - | - | - | 48 | |
| HZU07L | 19 | - | 0.34 | 0.9 | 2 | 7.5 | 13 | - | - | - | - |

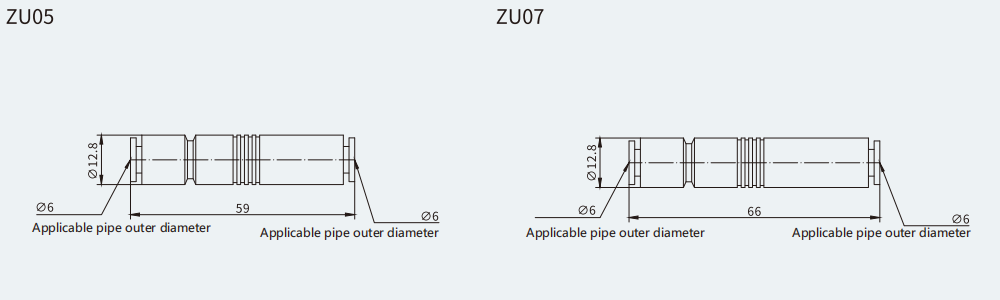

Dimensions
BASIC VACUUM GENERATOR
