Features

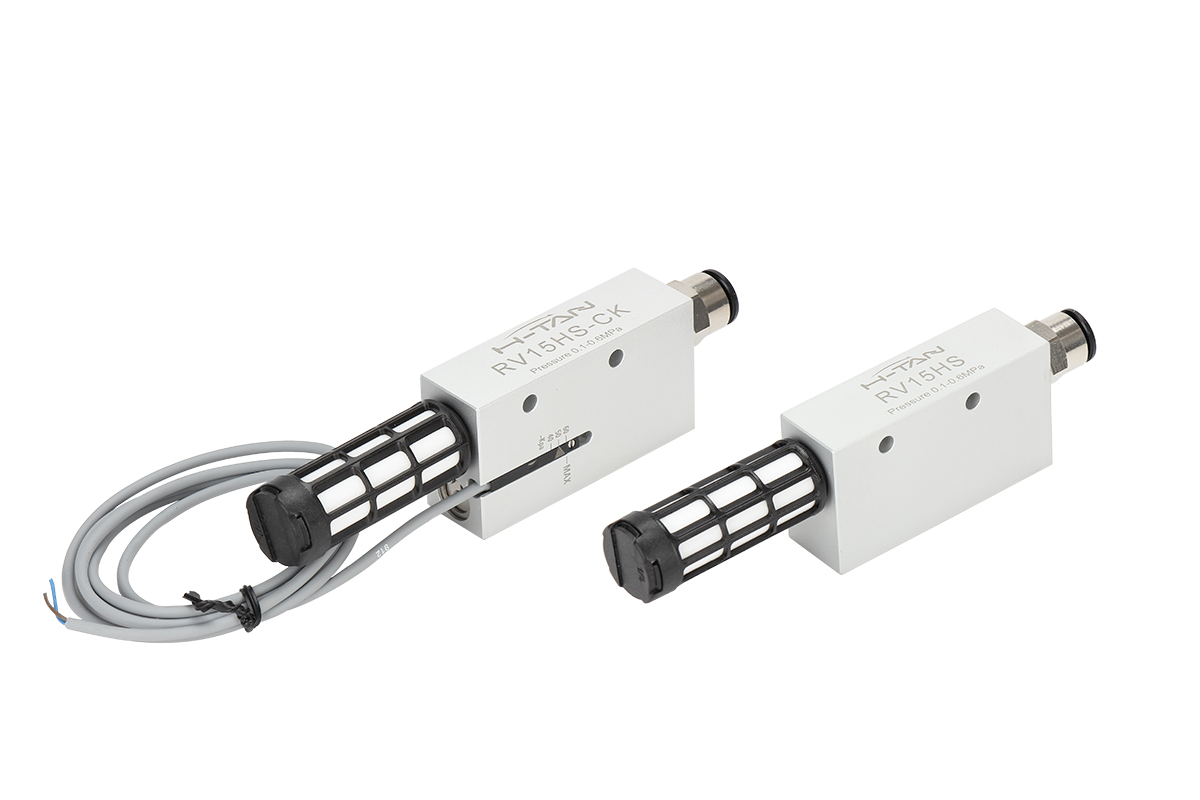

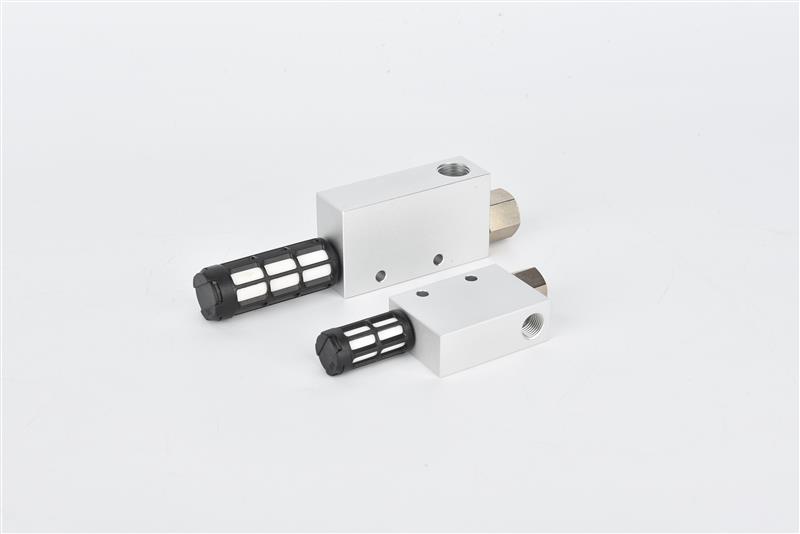

RV SERIES BASIC VACUUM GENERATOR
●Single stage and compact structure
●High vacuum level type and large flow type for option
●Optional pressure switch
Selection Guide
RV SERIES BASIC VACUUM GENERATOR
RV 10 -HS CK -□
RVE 10 -HS CK -□ -□ -□
RVZ 10 -HS CK -□ -□ -□
① ② ③ ④ ⑤ ⑥ ⑦
RV 10 -HSCK S -08
RVE 10 -HSCK S -08 -□ -□
① ② ③ ⑧ ⑥ ⑦
| ① Series | ② Nozzle diameter | ③ Specification | ④ Pressure switch | ⑤ Power connection form |
| RV - Universal type | 05 - φ0.5mm | HS - High vacuum level type(-92kPa,5bar) | / - Default,without magnet switch | / - Default,horizontal(M) |
| 10 - φ1.0mm | ||||
| RVE - With control device,horizontal | 15 - φ1.5mm | |||
| 20 - φ2.0mm |
LR - Large vacuum follow type(-60kPa,3.5bar) |
CK - with magnet switch(adjustable) |
Z - Vertical(L) |
|
| RVZ - With control device,vertical |
25 - φ2.5mm | |||
| 30 - φ3.0mm |
*Note: RVE/Z only optional with 10 or 15;Only 10 or 15 can be selected when RV,RVE/Z are installed in tandem and only HSCK are available
| ⑥ Control valve specification | ⑦ Silencer | ⑧ Stack |
| / - Default,normally closed(NC) | / - Default | 02 - 2 |
| 03 - 3 | ||
| NO - Normally open(NO) |
H - HS Silencer | ··· |
| 10 - 10 |
*Note:HS silencer is only applicable for 05 or 10
Technical parameters - RV
| Model | Rated air supply pressure bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Noise diameter mm | Operating temperature ℃ |
| RV05HS | 3.5~5.0 | 88 | 8 | 12 | 0.5 | 0~60 (Nonfreezing) |
| RV10HS | 92 | 27 | 44 | 1.0 | ||
| RV15HS | 65 | 100 | 1.5 | |||
| RV20HS | 110 | 180 | 2.0 | |||
| RV25HS | 165 | 265 | 2.5 | |||
| RV30HS | 220 | 385 | 3.0 | |||
| RV05LS | 60 | 10 | 12 | 0.5 | ||
| RV10LS | 36 | 44 | 1.0 | |||
| RV15LS | 86 | 100 | 1.5 | |||
| RV20LS | 170 | 180 | 2.0 | |||
| RV25LS | 245 | 265 | 2.5 | |||
| RV30LS | 340 | 385 | 3.0 |
Technical parameters - RVE/Z
| Model | Rated air supply pressure bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Noise diameter mm | Operating temperature ℃ |
| RVE05HS | 3.5~5.0 | 88 | 8 | 12 | 0.5 | 0~60 (Nonfreezing) |
| RVE10HS | 92 |
27 | 44 | 1.0 | ||
| RVE15HS | 65 | 100 | 1.5 | |||
| RVE05LS | 60 | 10 | 12 | 0.5 | ||
| RVE10LS | 36 | 44 | 1.0 | |||
| RVE15LS | 86 | 100 | 1.5 | |||
| RVZ05HS | 88 | 8 | 12 | 0.5 | ||
| RVZ10HS | 92 | 27 | 44 | 1.0 | ||
| RVZ15HS | 65 | 100 | 1.5 | |||
| RVZ05LS | 60 | 10 | 12 | 0.5 | ||
| RVZ10LS | 36 | 44 | 1.0 | |||
| RVZ15LS | 86 | 100 | 1.5 |
*Note: The vacuum flow rate and pumping time for RVE and RVZ series with different vacuum degrees refer to the RV series
Specific
Basic Vacuum Generator
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| RV05HS | 5 | 12 | 8 | 5.5 | 4.2 | 3 | 1.5 | 0.8 | 0.5 | 0.2 | 0.05 | 0.002 | 88 |
| RV10HS | 44 | 27 | 19 | 16 | 14.5 | 13 | 10.5 | 8 | 6.5 | 2.5 | 1 | 92 | |
| RV15HS | 100 | 65 | 55 | 44 | 37 | 32.5 | 25 | 18 | 14 | 9 | 4.5 | ||
| RV20HS | 180 | 110 | 100 | 85 | 75 | 55 | 40.5 | 30 | 20 | 12 | 6 | ||
| RV25HS | 265 | 165 | 155 | 140 | 120 | 95 | 72 | 47 | 28 | 15 | 7.5 | ||
| RV30HS | 385 | 220 | 200 | 160 | 135 | 105 | 78 | 55 | 33 | 19 | 9.5 | ||
| RV05LS | 12 | 10 | 9 | 8 | 6.5 | 2.5 | 1.8 | 0.5 | - | - | - | 60 | |
| RV10LS | 44 | 36 | 31.5 | 23.5 | 16.5 | 10 | 6.5 | 2 | - | - | - | ||
| RV15LS | 100 | 86 | 78 | 70 | 47.5 | 30.5 | 15.5 | 5 | - | - | - | ||
| RV20LS | 180 | 170 | 125 | 115 | 95 | 70 | 35.5 | 6.5 | - | - | - | ||
| RV25LS | 265 | 245 | 215 | 200 | 150 | 105 | 60 | 30 | - | - | - | ||
| RV30LS | 385 | 340 | 295 | 267 | 215 | 150 | 85 | 37 | - | - | - |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| RV05HS | 5 | 12 | - | 0.68 | 1.38 | 2.77 | 4.32 | 6.02 | 8.25 | 9.44 | 11.82 | 14.35 | 88 |
| RV10HS | 44 | - | 0.2 | 0.49 | 0.82 | 1.25 | 1.74 | 2.32 | 2.95 | 4.0 | 6.95 | 92 | |
| RV15HS | 100 | - | 0.08 | 0.19 | 0.32 | 0.48 | 0.69 | 0.92 | 1.38 | 1.95 | 3.33 | ||
| RV20HS | 180 | - | 0.04 | 0.10 | 0.17 | 0.23 | 0.34 | 0.49 | 0.91 | 0.92 | 1.92 | ||
| RV25HS | 265 | - | 0.03 | 0.07 | 0.11 | 0.17 | 0.24 | 0.35 | 0.49 | 0.75 | 1.32 | ||
| RV30HS | 385 | - | 0.03 | 0.06 | 0.09 | 0.14 | 0.2 | 0.27 | 0.41 | 0.63 | 1.11 | ||
| RV05LS | 12 | - | 0.31 | 0.98 | 1.89 | 3.17 | 5.12 | 7.1 | - | - | - | 60 | |
| RV10LS | 44 | - | 0.12 | 0.28 | 0.51 | 0.83 | 1.32 | 1.52 | - | - | - | ||
| RV15LS | 100 | - | 0.45 | 0.10 | 0.15 | 0.26 | 0.42 | 0.64 | - | - | - | ||
| RV20LS | 180 | - | 0.03 | 0.06 | 0.11 | 0.14 | 0.25 | 0.38 | - | - | - | ||
| RV25LS | 265 | - | 0.02 | 0.05 | 0.08 | 0.12 | 0.18 | 0.31 | - | - | - | ||
| RV30LS | 385 | - | 0.02 | 0.04 | 0.06 | 0.09 | 0.13 | 0.25 | - | - | - |
STANDARD SPECIFICATIONS
| Working mediumel | Filter compressed air | Using voltage | DC24V |
| Air supply pressure range | 3.5~7.0bar | Action frequency | 5 times/s |
| Starting pressure | ≥3.0bar | Power dissipation | 1W |
| Operating temperature | 0~60℃ | Power connection form | L,M-type port plugging and unplugging |
| Body material | Aluminum Alloy | Protection level | IP50 |
CONNECTION SPECIFICATIONS
| Item | RV05 | RV10 | RV15 | RV20 | RV25 | RV30 |
| Air supply port | Rp1/8 | Rp1/8 | Rp1/4 | Rp1/4 | Rp3/8 | Rp1/2 |
| Vacuum port | Rp1/8 | Rp1/8 | Rp1/4 | Rp3/8 | Rp1/2 | Rp3/4 |
| Exhaust port | Rp1/8 | Rp1/8 | Rp1/4 | Rp1/2 | Rp3/4 | Rp3/4 |
Note: The connection specifications for RVE10 and RVZ10 are the same as RV10, while RVE15 and RVZ15 are the same as RV15

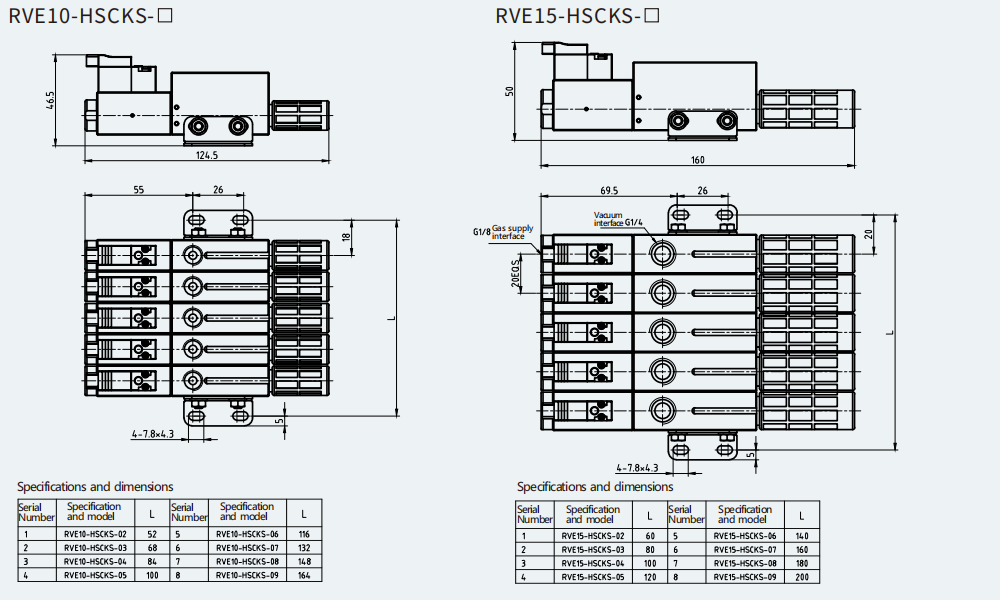

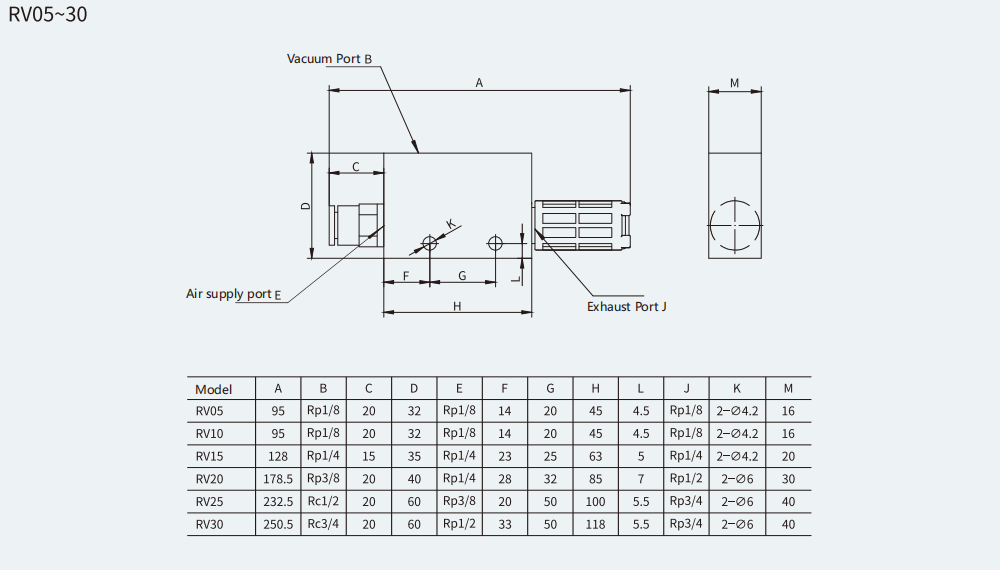

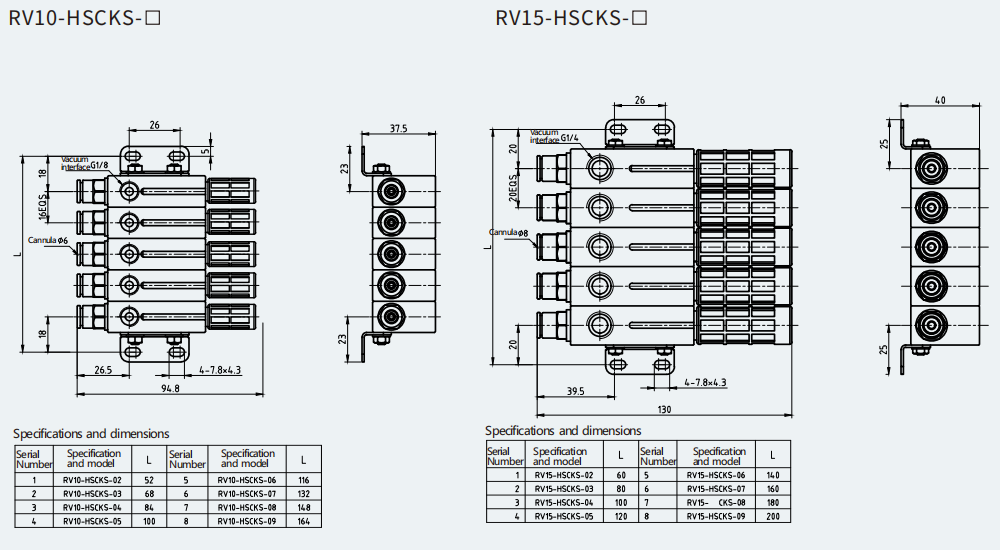

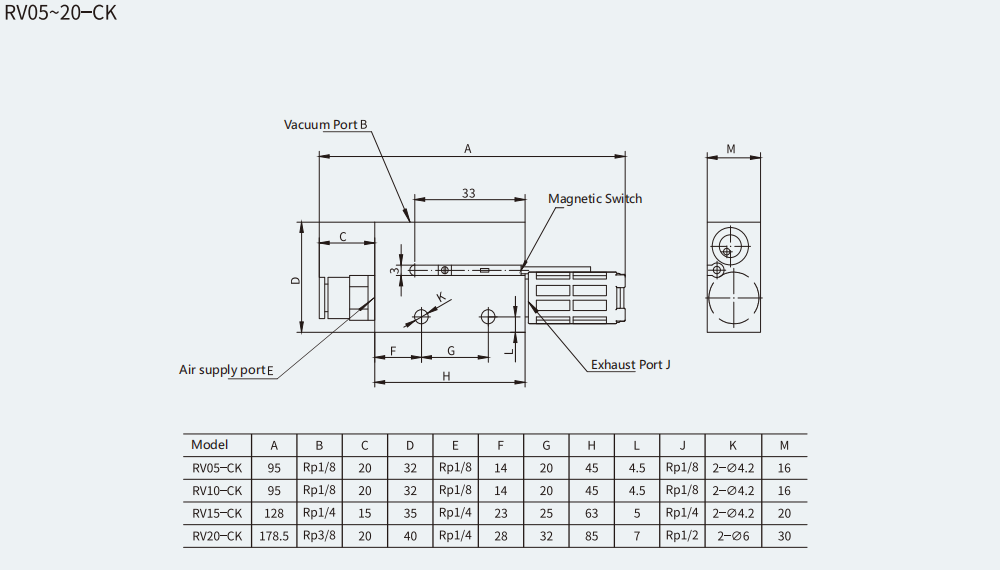

Dimensions
Basic Vacuum Generator
