Features

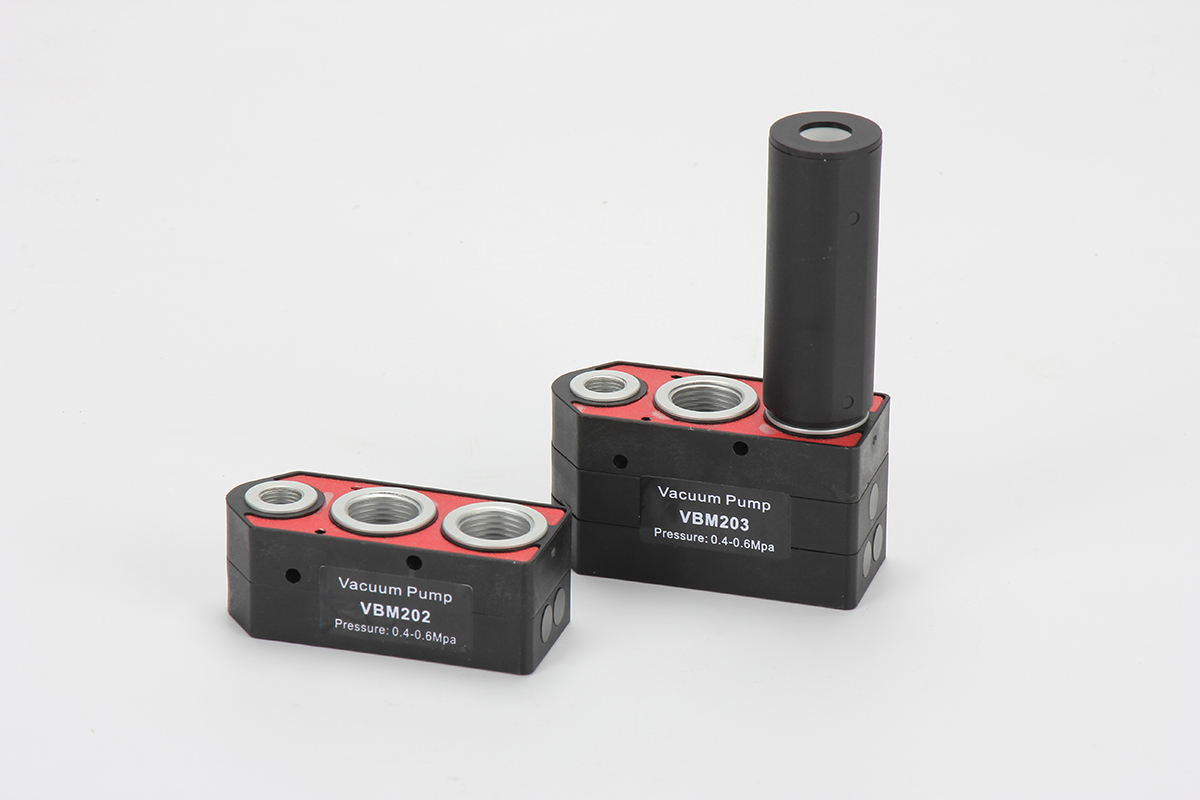

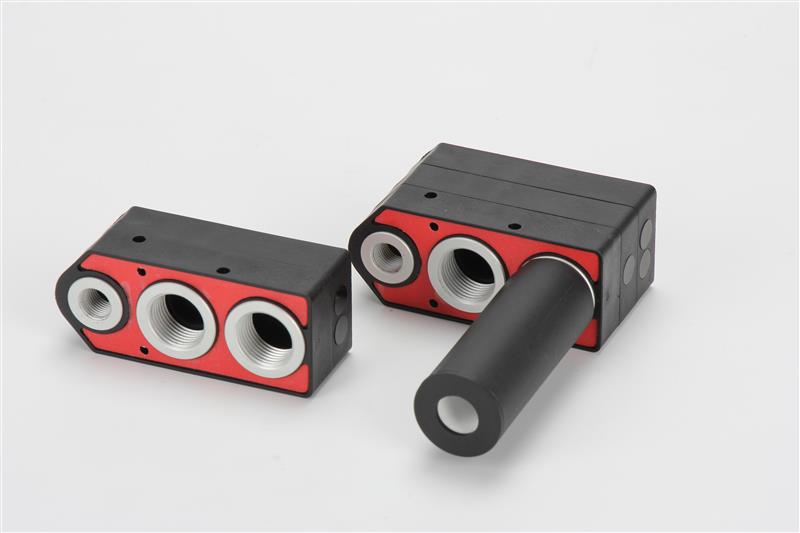

Mini Vacuum Generator
●Energy-efficient nozzle design
●Small size, lightweight, can be connected with a suction cup directly
●External silencers
Selection Guide
BM/BX SERIES BASIC VACUUM GENERATOR
VBM 201 -V -□
① ② ③ ④
| ① Series | ② Specification | ③ Sealing | ④ Control device |
| VBM - Universal type（-85kPa） | 201 | / - Default,NBR | / - Default,without control device |
| VBX - High vacuum level type（-92kPa） |
202 | V - Fluorine rubber |
RE - RE supply valve |
| 203 |
Specific
Technical parameters - VBM/X
| Model | Rated air supply pressure bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Recommended hose dia.(mm) Air supply port |
Recommended hose dia.(mm) Vacuum port |
| VBM201 | 5 | 85 | 75 | 36 | φ6~8 |
φ10~12 |
| VBM202 | 5 | 85 | 150 | 72 | ||
| VBM203 | 5 | 85 | 225 | 108 | ||
| VBX201 | 4.5 | 92 | 80 | 36 | ||
| VBX202 | 4.5 | 92 | 160 | 72 | ||
| VBX203 | 4.5 | 92 | 240 | 105 |

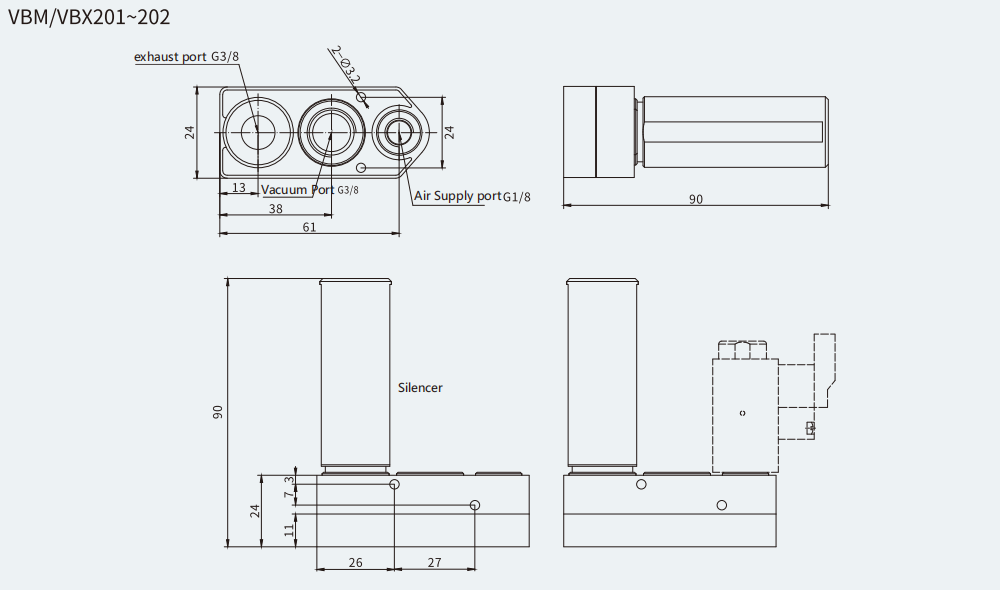

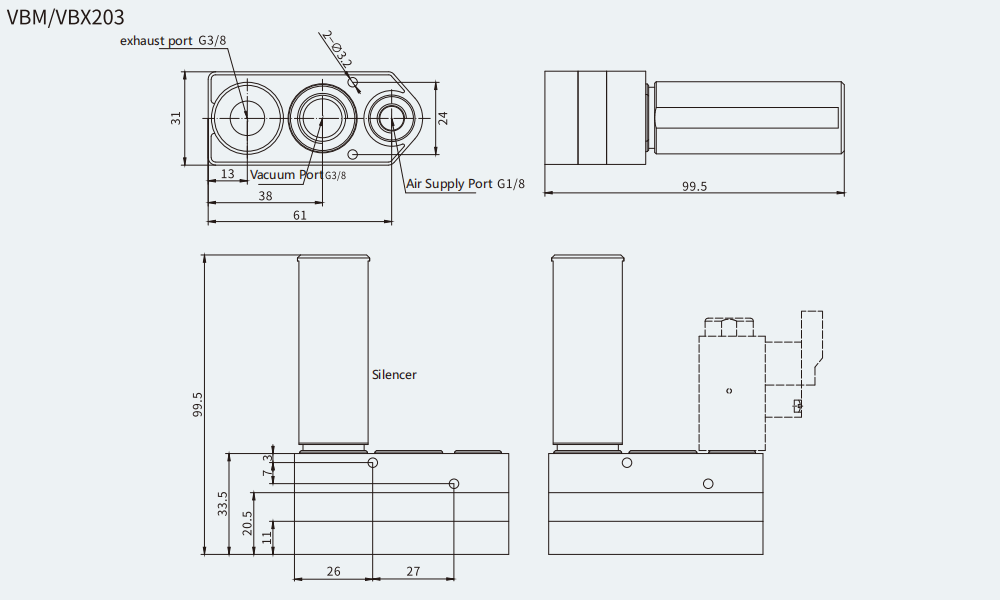

Dimensions
Mini Vacuum Generator
