Features

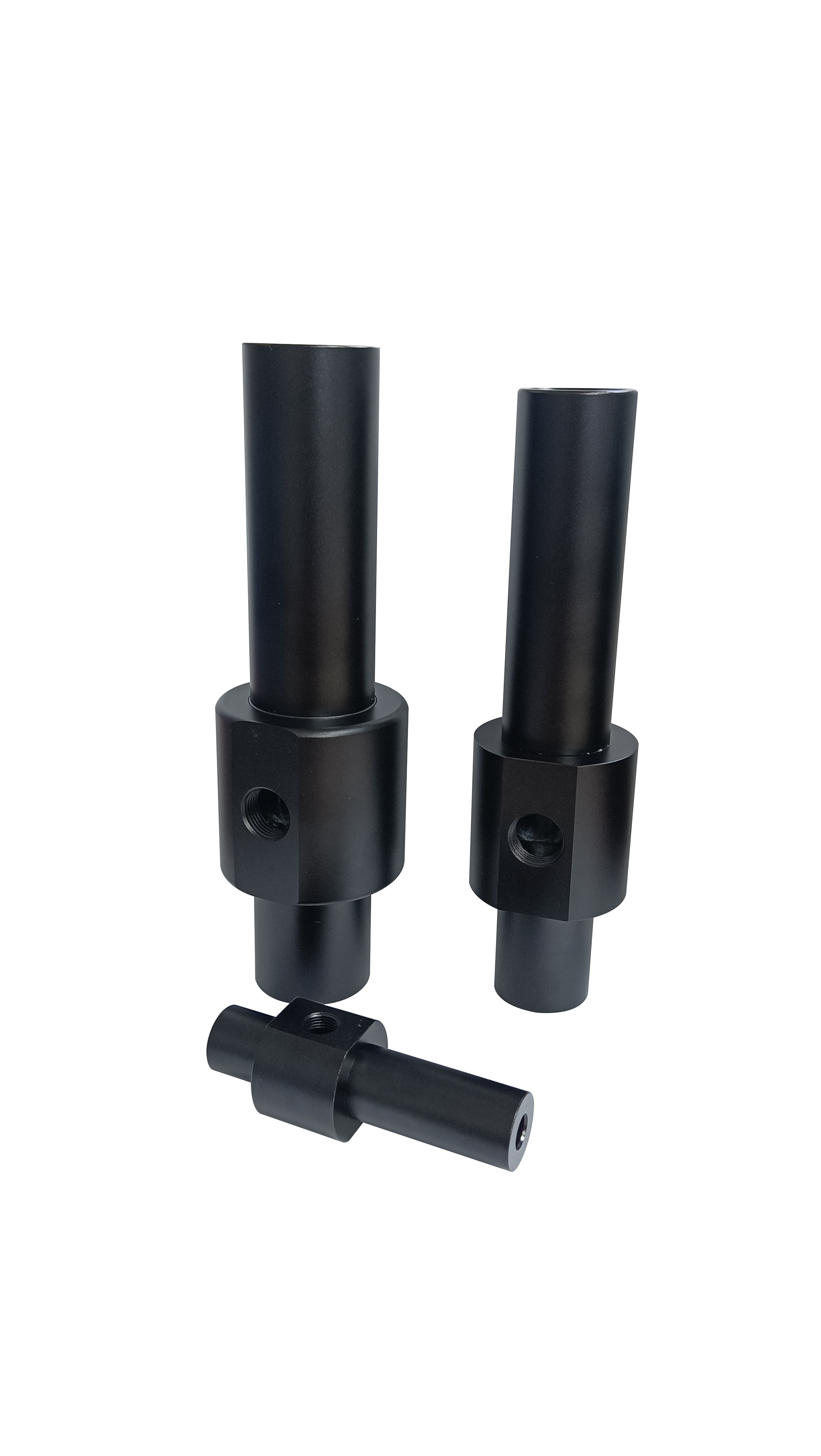

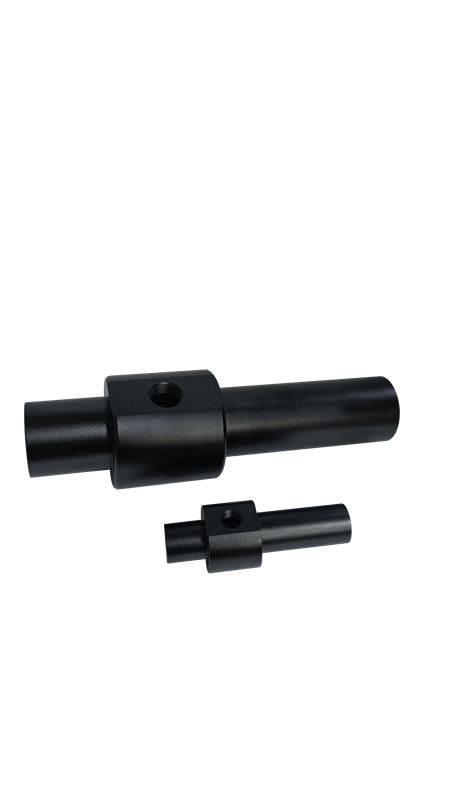

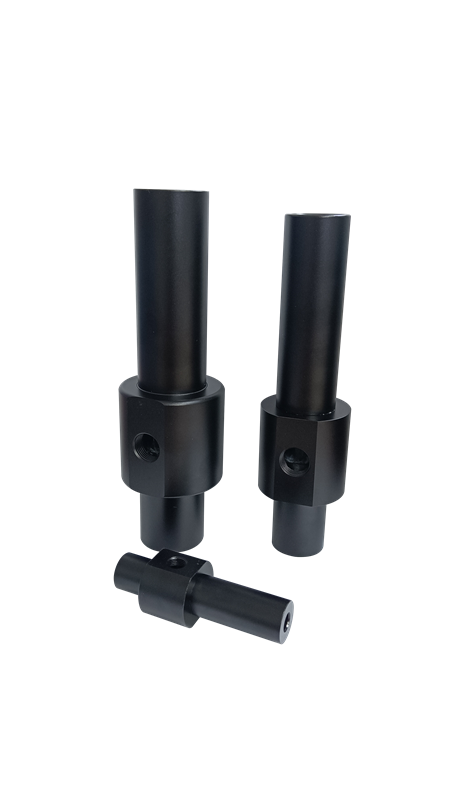

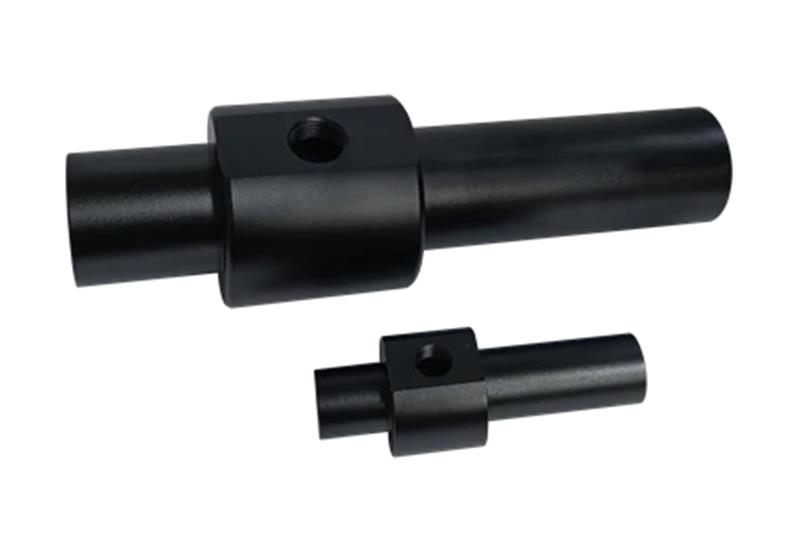

Conveying Vacuum Generator
●Straight-through design, extremely large vacuum flow
●Different diameters are available
Selection Guide
HCPF SERIES CONVEYING VACUUM GENERATOR
HCPF 2-3 S
① ② ③
| ① Series | ② Specification | ③ Mounting bracket |
| HCPF |
2 - 3 | / - Default,aluminium alloy |
| 3 - 3 | ||
| 5 - 6 | ||
| 7 - 6 | S - Stainless steel |
|
| 15 - 3 | ||
| 15 - 6 |
Technical parameters
| ① Model | ② Nozzle mm | ③ Air supply pressure bar | ④ Max. vacuum level -kPa |
⑤ Max. vacuum flow NL/min |
⑥ Air consumption NL/min (2.8bar) | ⑦ Air consumption NL/min (5.5bar) |
| HCPF2-3 | φ6.5 | 6.0 |
26 |
295 | 82 | 160 |
| HCPF3-3 | φ9.5 | 16 | 425 | 95 | 170 | |
| HCPF5-6 | φ12.5 | 35 | 870 | 395 | 680 | |
| HCPF7-6 | φ19 | 28 | 1825 | 790 | 1365 | |
| HCPF15-3 | φ25 | 4.4 |
4400 | 405 | 695 | |
| HCPF15-6 | φ38 | 9 | 5610 | 790 | 1365 |

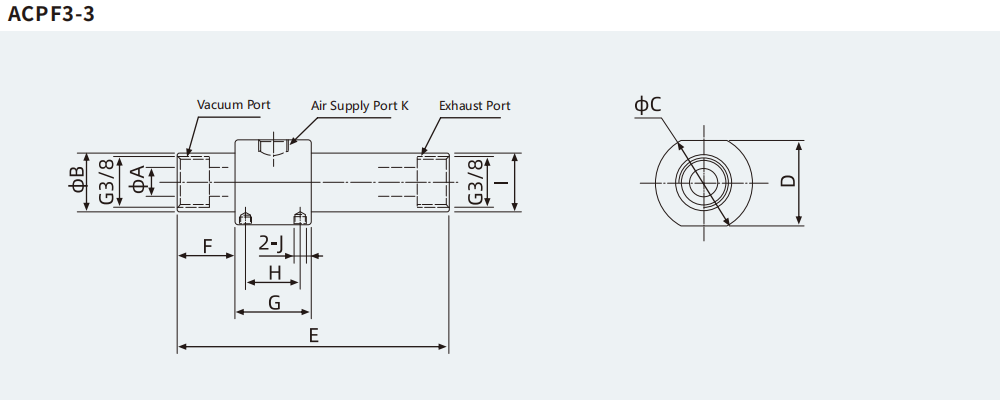

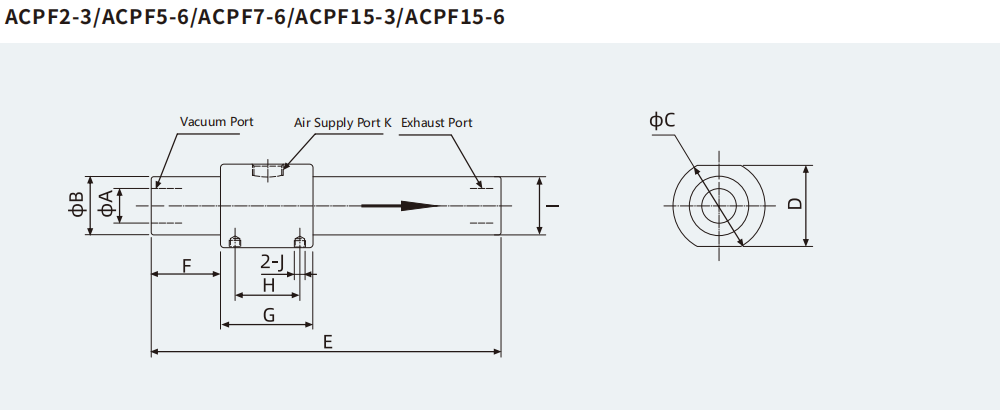

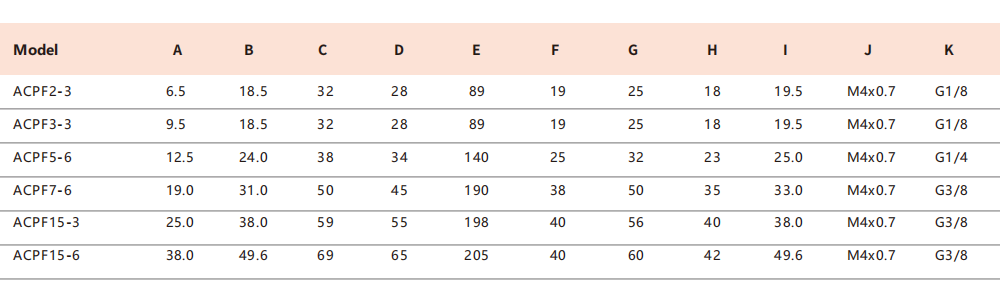

Dimensions
Conveying Vacuum Generator
