Features

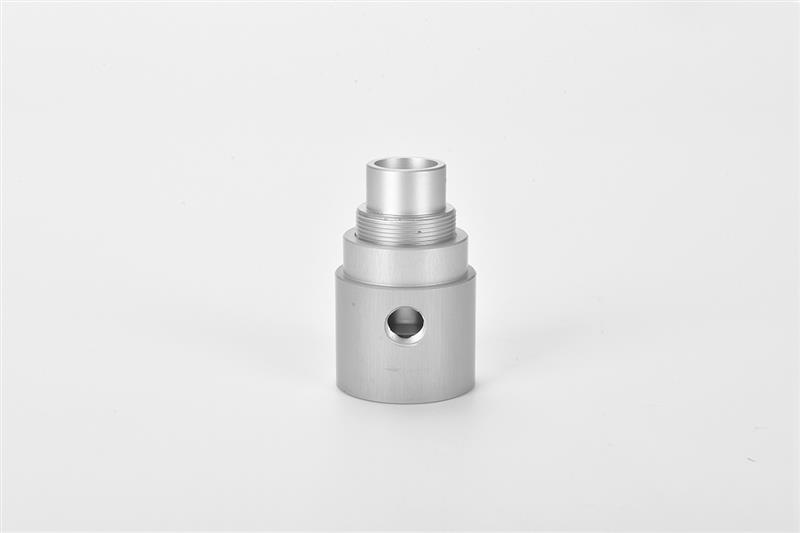

Conveying Vacuum Generator
●Straight-through design, extremely large vacuum flow
●Vacuum flow is adjustable according to the working condition
●Different diameters are available
2
HZH-X187 SERIES CONVEYING VACUUM GENERATOR
HZH 10 -X185
① ②
| ① Series | ② Specification |
| HZH-X187 |
19 - φ19mm |
| 25 - φ25.5mm | |
| 32 - φ32mm |
Technical parameters
| Model |
HZH19 |
HZH25 | HZH32 |
| Main material | Aluminium alloy | ||
| Sealing material | NBR | ||
| Flow channel dia. mm | φ19 | φ25.5 | φ32 |
| Working medium | Compressed air | ||
| Air supply pressure range bar | 0~7bar | ||

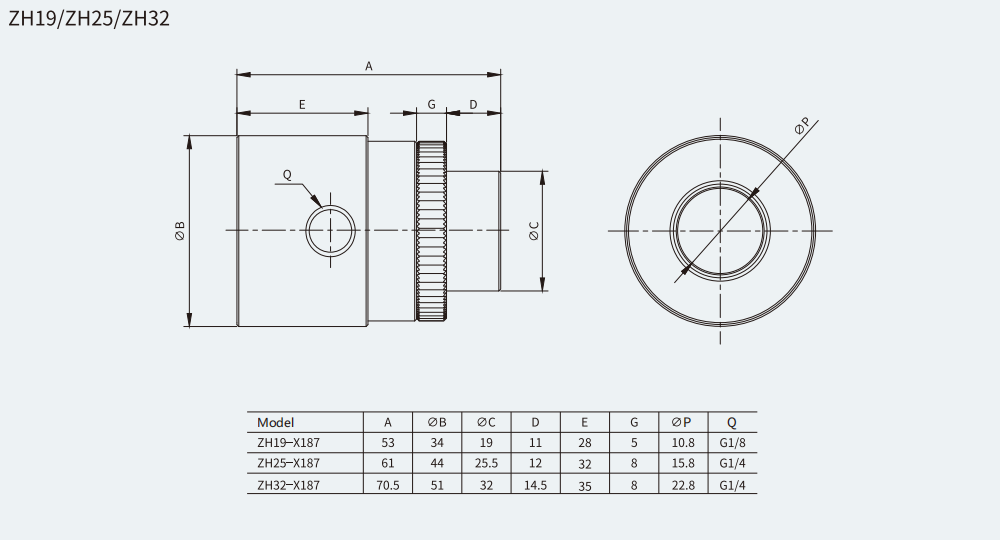

Dimensions
Conveying Vacuum Generator
