Features

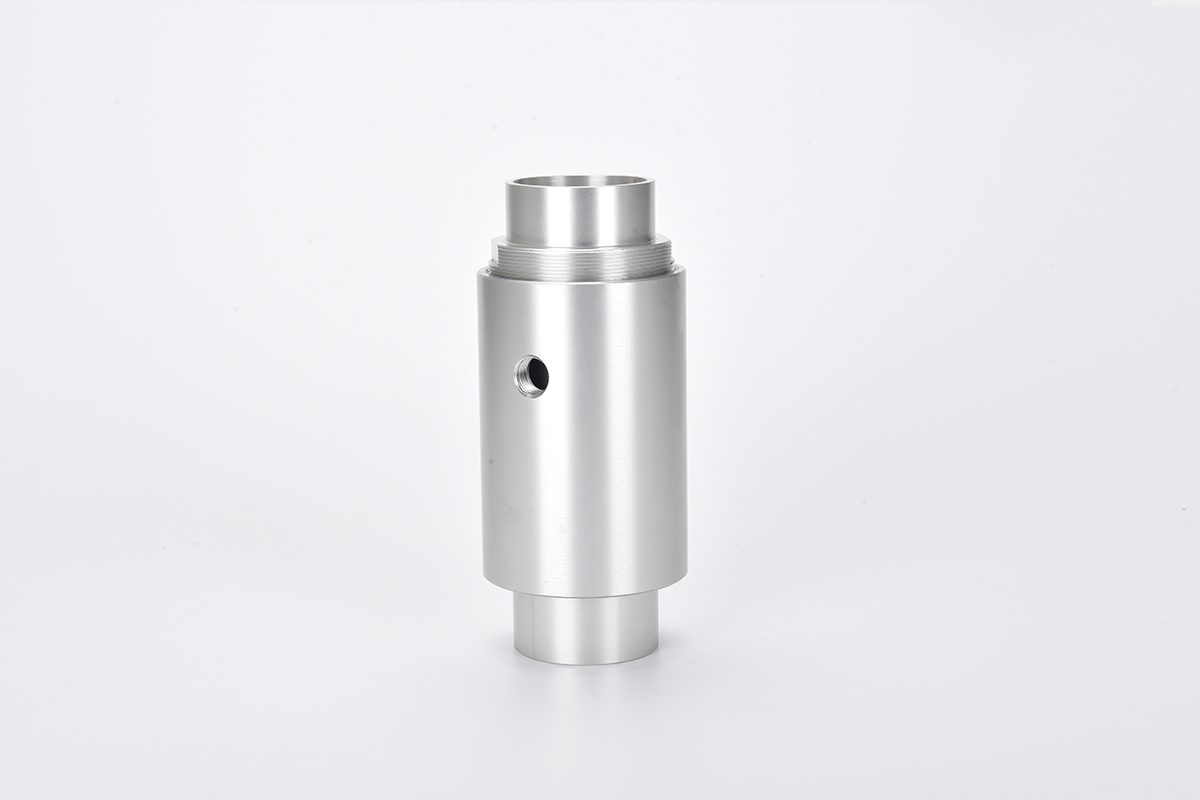

Conveying Vacuum Generator
●Straight-through design, extremely large vacuum flow
●Vacuum flow is adjustable according to the working condition
●Different diameters are available
Selection Guide
HZH-X185 SERIES CONVEYING VACUUM GENERATOR
HZH 10 -B -X185
① ② ③
| ① Series | ② Specification | ③ Mounting bracket |
| HZH-X185 |
10 - φ13mm | / - Default,without bracket |
| 20 - φ21.6mm | ||
| 30 - φ30mm | B - With bracket |
|
| 40 - φ42mm |
Technical parameters
| Model |
HZH10 |
HZH20 | HZH30 | HZH40 |
| Main material | Aluminium alloy | |||
| Sealing material | NBR | |||
| Flow channel dia. mm | φ13 | φ21.6 | φ30 | φ42 |
| Working medium | Compressed air | |||
| Air supply pressure range bar | 0~7bar | |||
| Weight g | 110 | 430 | 970 | 2000 |
| Bracket model | HZH10-B-X185-03 | HZH20-B-X185-03 | HZH30-B-X185-03 | HZH40-B-X185-03 |
Specific
Conveying Vacuum Generator

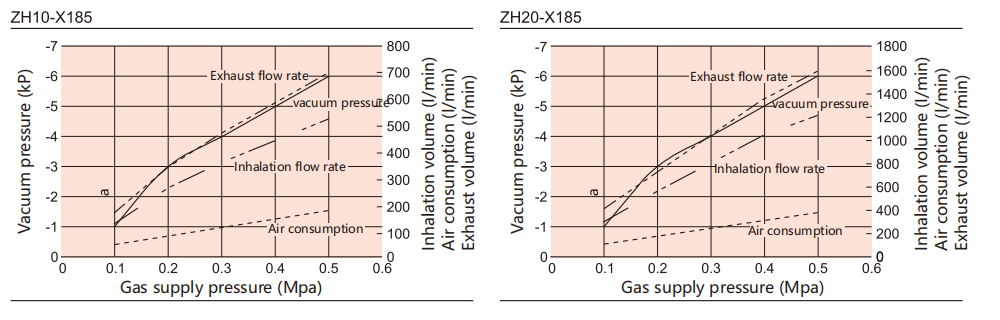

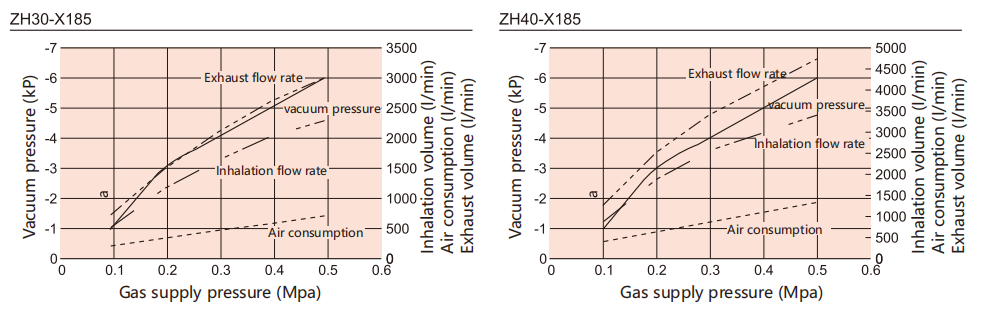

●Vacuum flow(NL/min) at different vacuum levels(-kPa)

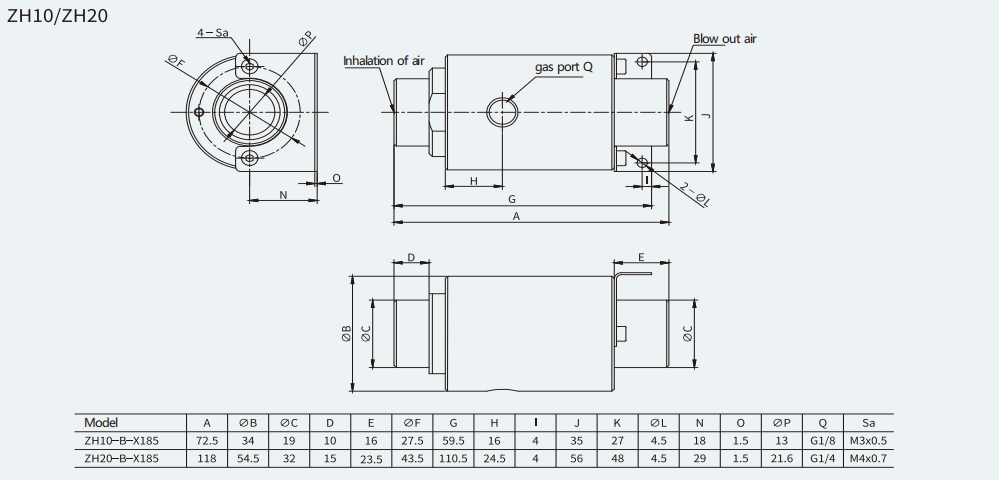

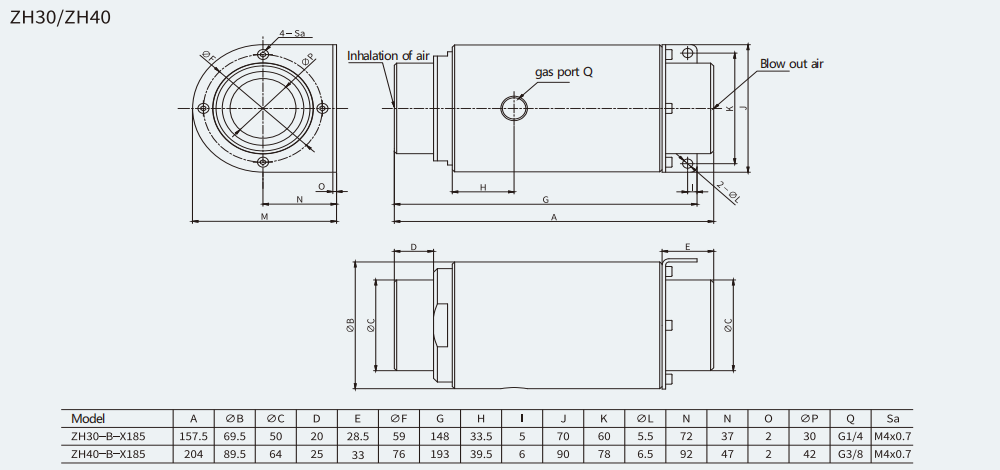

Dimensions
Conveying Vacuum Generator
