Features

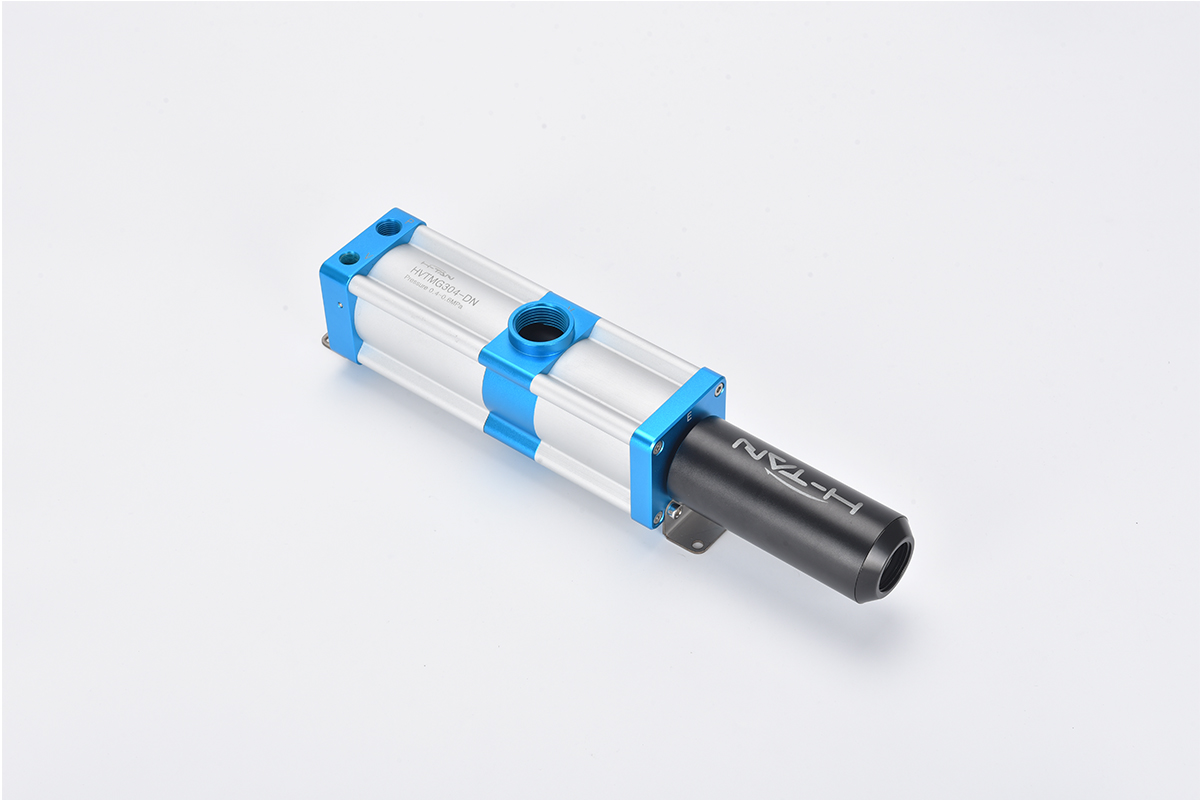

Large Flow Vacuum Generator
●Built-in vacuum cartridge, greatly improve the energy consumption ratio
●Suitable connection specifications can be configured according to different vacuum flow requirements
●Various connection specifications can meet different requirements
Selection Guide
HVTG SERIES MULTISTAGE VACUUM GENERATOR
HVTMG 304 -D N A -□
① ② ③ ④ ⑤ ⑥
| ①Series | ②Specification | ③Connection plate |
④Sealing | ⑤Non-return valve | ⑥Control device | |||
|
HVTMG-High vacuum level (-94kPa) |
304 | Supply port | Vacuum port | Exhaust port | N - NBR | / - Default,without non-return valve | / - Default,without control device | |
| D - 304 | G1/4 | G3/4 | G3/4 | |||||
|
HVTLG-Large vacuum fellow (-85kPa) |
B - 304 | NPSF1/4 | NPT3/4 | NPT3/4 | ||||
| 306 | D - 306 | G1/4 | G1 | G1 | V - Fluorine rubber | A - With non-return valve | RE - RE Supply Valve | |
|
HVTSG-Low air supply (-90kPa) |
B - 306 | NPSF1/4 | NPT1 | NPT1 | ||||
Specific
HVTG SERIES MULTISTAGE VACUUM GENERATOR
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTM304 | 4.5 | 540 | 1440 | 720 | 480 | 312 | 175.2 | 139.2 | 103.2 | 76.8 | 43.2 | 7.2 | 94 |
| HVTM306 | 5 | 810 | 2160 | 1000 | 684 | 468 | 262.8 | 206.4 | 154.8 | 115.2 | 64.8 | 10.8 | |
| HVTM304 | 6 |
720 | 1440 | 1040 | 560 | 312 | 380 | 240 | 120 | 64 | 32 | 6 | |
| HVTM306 | 830 | 2160 | 1560 | 840 | 468 | 570 | 360 | 180 | 96 | 48 | 9 |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTM304 | 4.5 | 540 | - | 0.01 | 0.025 | 0.043 | 0.075 | 0.11 | 0.19 | 0.27 | 0.45 | 1.2 | 94 |
| HVTM306 | 5 | 810 | - | 0.005 | 0.013 | 0.027 | 0.045 | 0.07 | 0.105 | 0.23 | 0.46 | 0.9 | |
| HVTM304 | 6 |
720 | - | 0.007 | 0.018 | 0.038 | 0.055 | 0.08 | 0.12 | 0.19 | 0.47 | - | |
| HVTM306 | 830 | - | 0.003 | 0.009 | 0.014 | 0.03 | 0.06 | 0.095 | 0.2 | 0.8 | - |
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTL304 | 6 | 420 | 1420 | 960 | 640 | 400 | 215 | 135 | 90 | 77 | 29 | - | 85 |
| HVTL306 | 630 | 2130 | 1310 | 960 | 570 | 300 | 216 | 160 | 92 | 42 | - |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTM304 | 6 | 420 | - | 0.008 | 0.015 | 0.032 | 0.05 | 0.09 | 0.13 | 0.22 | 0.4 | - | 85 |
| HVTM306 | 630 | - | 0.005 | 0.013 | 0.024 | 0.04 | 0.071 | 0.1 | 0.16 | 0.24 | - |
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTS304 | 3.5 | 480 | 1344 | 600 | 432 | 264 | 156 | 120 | 84 | 60 | 24 | - | 90 |
| HVTS306 | 720 | 2016 | 768 | 618 | 396 | 234 | 180 | 126 | 90 | 36 | - |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| HVTS304 | 3.5 | 480 | - | 0.005 | 0.015 | 0.03 | 0.06 | 0.11 | 0.18 | 0.25 | 0.4 | 1 | 90 |
| HVTS306 | 720 | - | 0.022 | 0.013 | 0.025 | 0.04 | 0.08 | 0.12 | 0.17 | 0.27 | 0.67 |

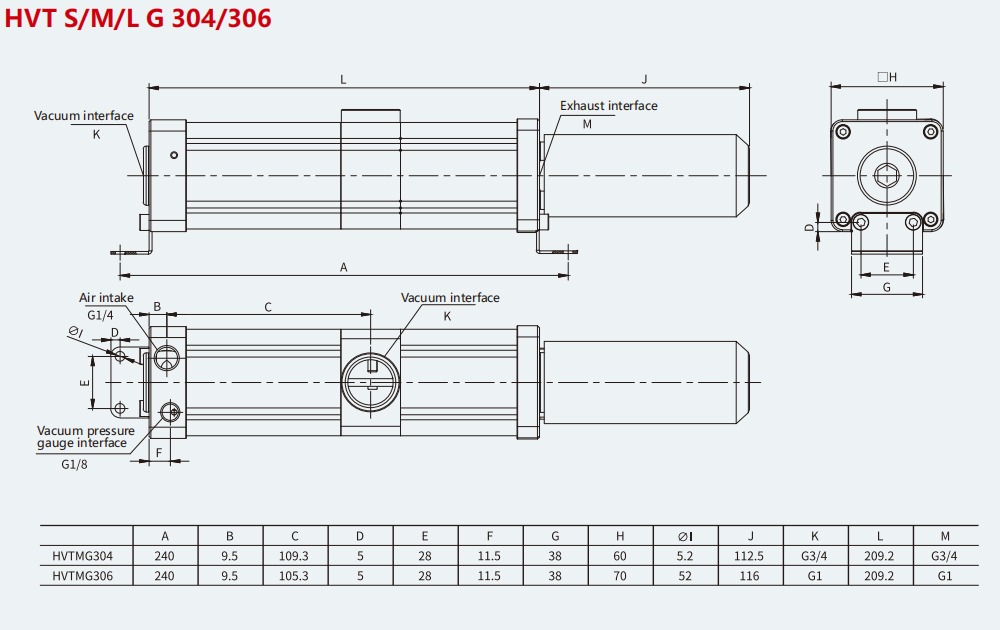

Dimensions
HVTG SERIES MULTISTAGE VACUUM GENERATOR
