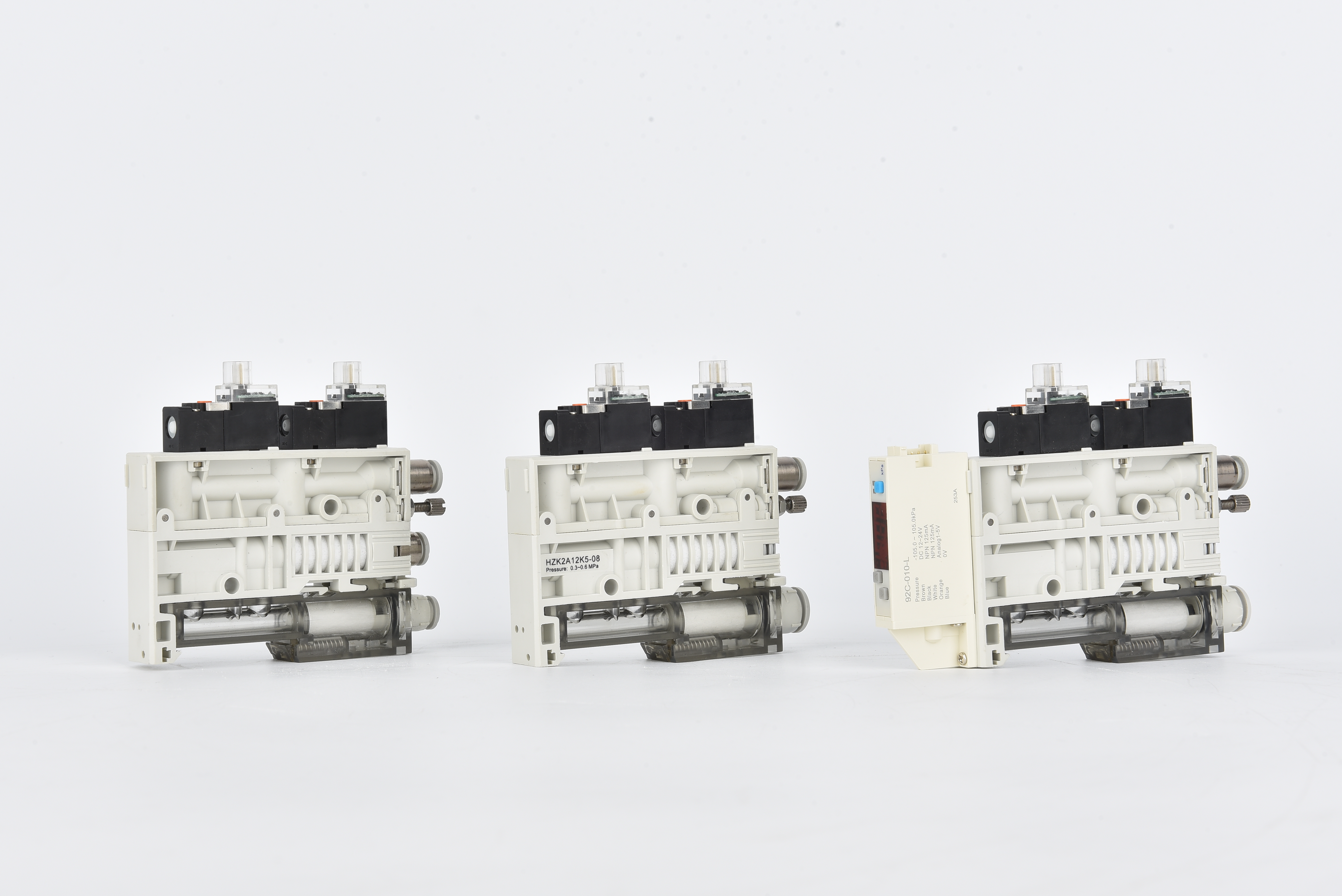

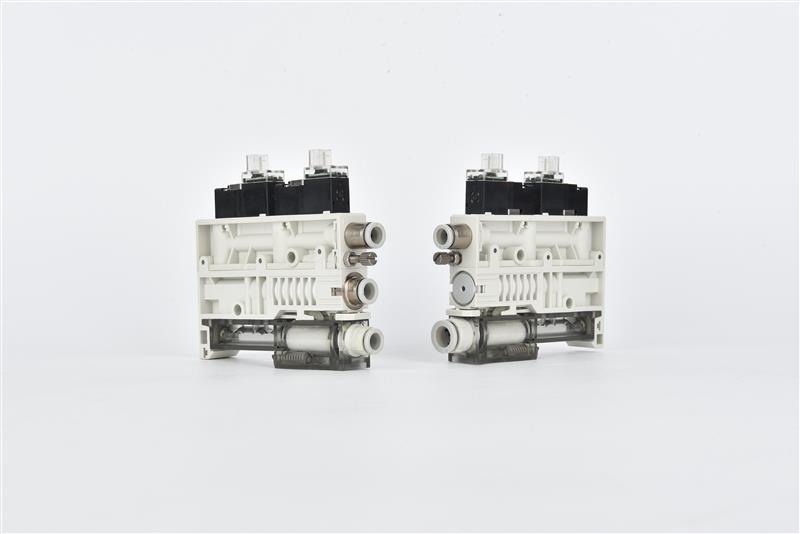

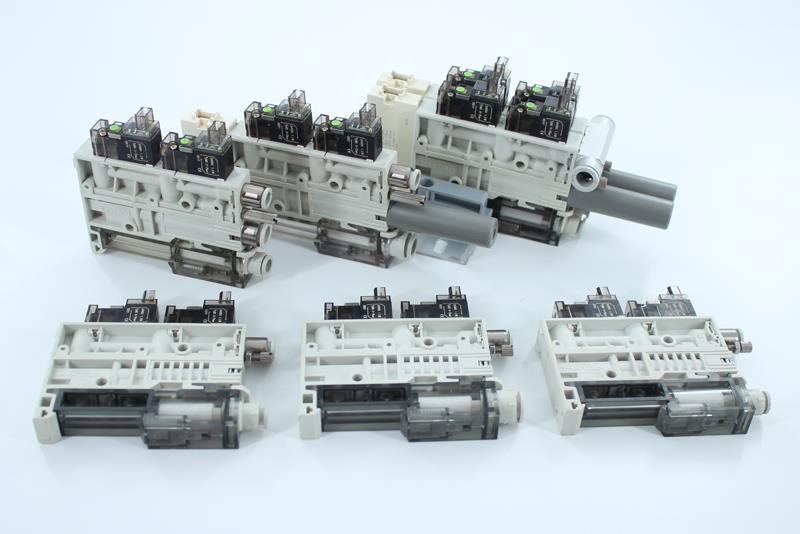

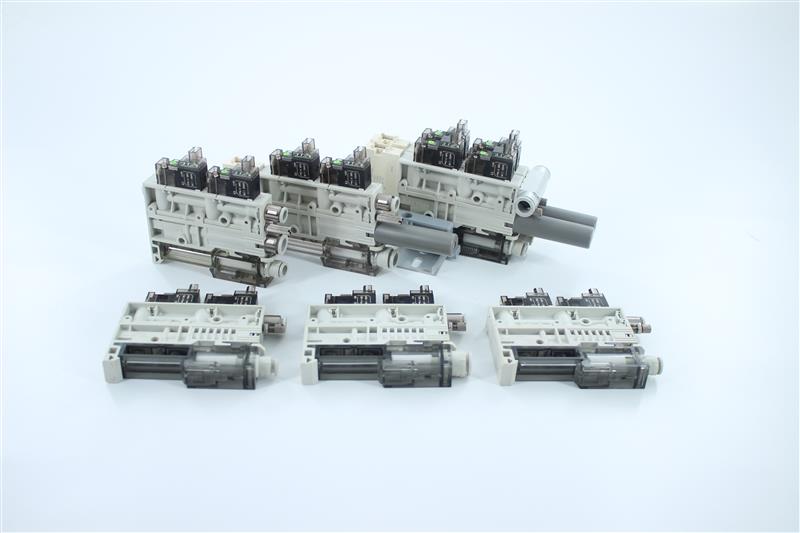

HZK2 Series

Integrated Vacuum Generator

●Energy-efficient nozzle design

●With energy-saving control device

●With a normally open vacuum supply valve

●Small size and lightweight. The volume is 85cm³

●Transparent filter housing

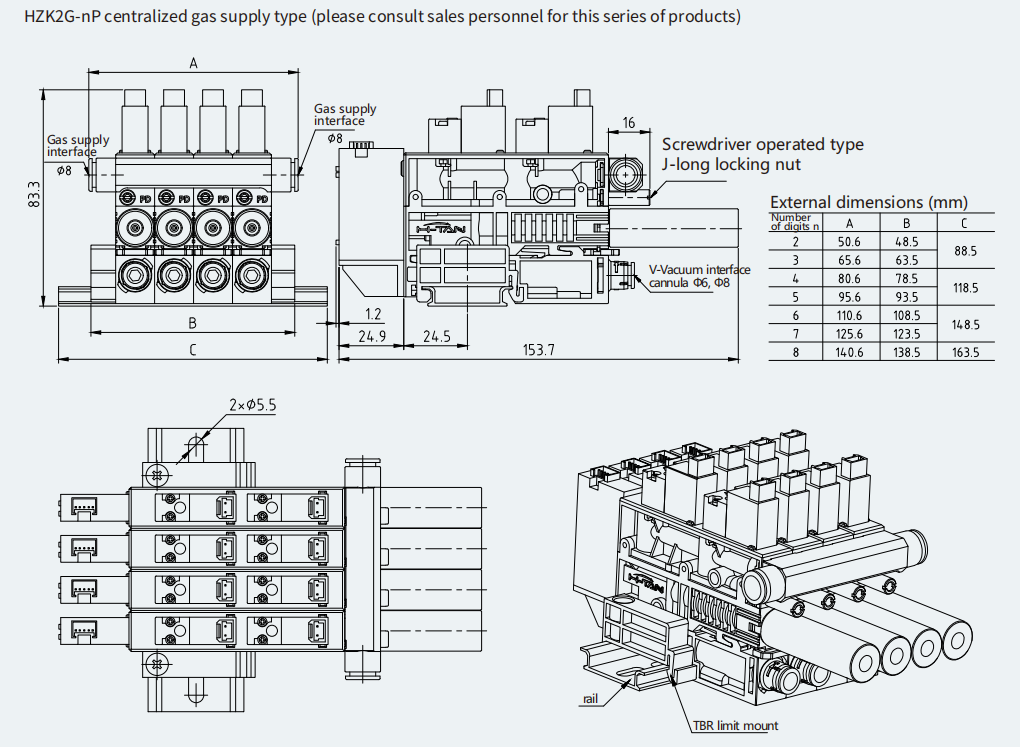

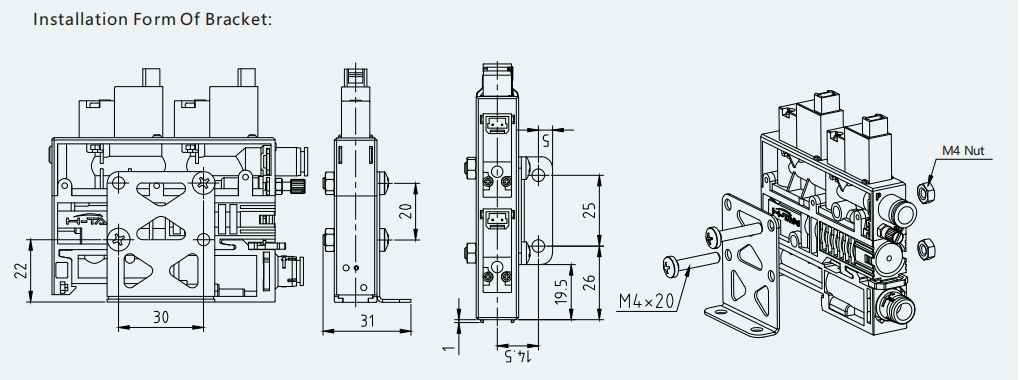

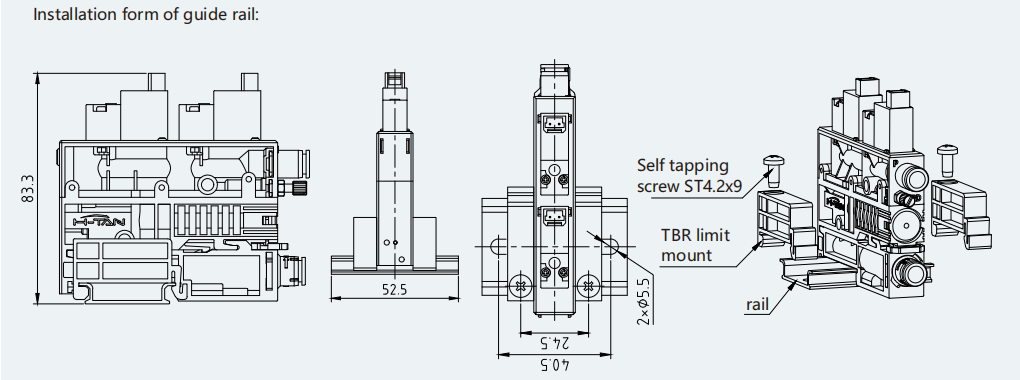

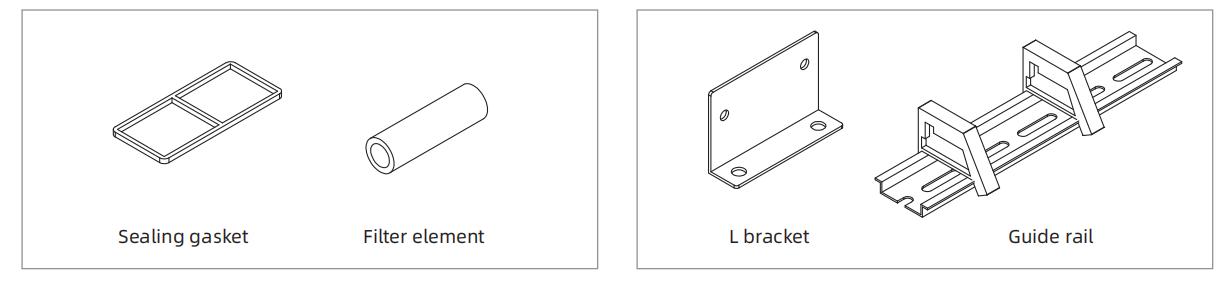

●Single body with L bracket, DIN guide rail installation for integrated body, centralized air supply

HZK2 SERIES INTEGRATED VACUUM GENERATOR

HZK2 A 10 K 5 N -08 □

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

①Series	②Exhaust method	③Nozzle	④Control valve (supply/break function)	⑤Rated voltage	⑥Vacuum switch	⑦Vacuum port	⑧Installation bracket

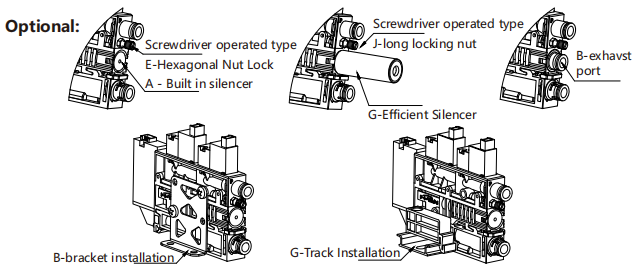

HZK2	A - Built in silencer	7 - φ0.7mm	K - NC-NC	5 - DC24V	/ - Default,without vacuum switch N - NPN,without energy-saving function (-100~100kPa) P - PNP,without energy-saving function (-100~100kPa) NE - NPN,with energy-saving function (-100~100kPa) PE - PNP,with energy-saving function (-100~100kPa) FE - Vacuum holding(no vacuum switch)	06 - φ6mm one-touch fitting	B - Bracket
	B - Vent exhaust	10 - φ1.0mm	J - NC-/	6 - DC12V		08 - φ8mm one-touch fitting	G - DIN-Rail
	G - External silencer	12 - φ1.2mm
		15 - φ1.5mm

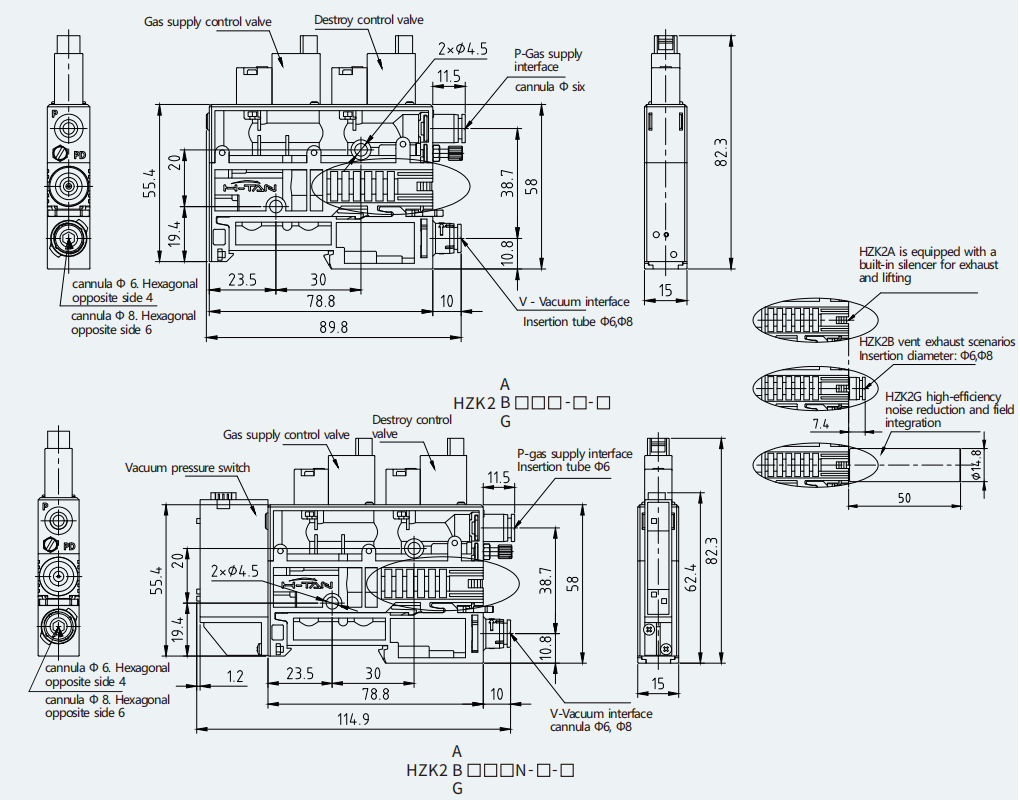

Integrated Vacuum Generator

Technical parameters

Model	Nozzle mm	Operationg pressure bar	Standard supply pressure bar	Max. vacuum level -kPa	Max. vacuum flow NL/min ————————————— A B C			Air consumption NL/min
HZK2□07	φ0.7	3~6	3.5	91	29	34	34	24
HZK2□10	φ1.0	3~6	3.5	91	44	56	56	40
HZK2□12	φ1.2	3~6	3.5	91	61	74	72	58
HZK2□15	φ1.2	3~6	4	91	67	89	83	90

Item	Technical Parameter
Applicable medium	Compressed air and inert gas
Operating pressure range	0~7bar
Environment and fluid temperature	-10℃~50℃
Response time	within 10ms
Max. working frequency	30Hz
Manual operation	Non locking push type
Power on duration	ED 100%
Structural protection	Dustproof
Protection level	IP50
Allow voltage fluctuations	±10%
Rated voltage	DC24/DC12
