Features
Integrated Vacuum Generator
●With digital vacuum pressure switch
●Small size and lightweight
●Fast-response
Selection Guide
VK SERIES INTEGRATED VACUUM GENERATOR
VK 05 -D -□ -□
① ② ③ ④ ⑤
| ①Series | ②Specifications | ③Air supply mode |
④Pressure gauge type |
⑤Exhaust |
|
HZK2 |
05 - φ0.5 | / - Default,With supply valve | / - Default,Without gauge | / - Default,silencer |
| 07 - φ0.7 | D - With supply and destruction valves | N - NPN,without energy-saving function (-100~100kPa) | J - φ6mm one-touch fitting | |
| P - PNP,without energy-saving function (-100~100kPa) |
Technical parameters
Technical parameters
| Model | Operationg pressure bar |
Air consumption NL/min |
Max. vacuum flow NL/min |
Max. vacuum level -kPa |
Material |
Rated voltage |
| VK05 | 4.5~6.0 | 11.5~15 | 6~8 | 87 | aluminum alloy | DC24V |
| VK07 | 4.5~6.0 | 21~28 | 16~19 |

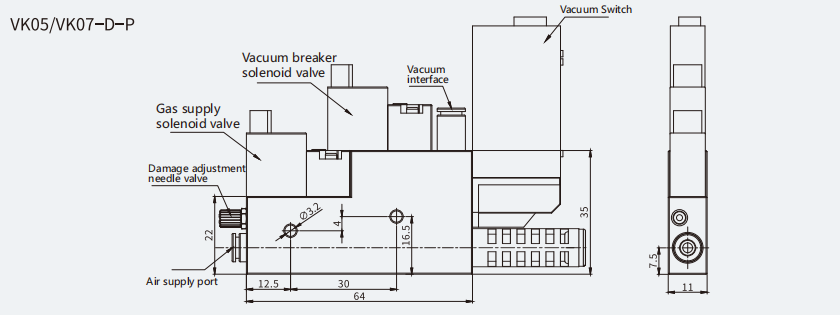

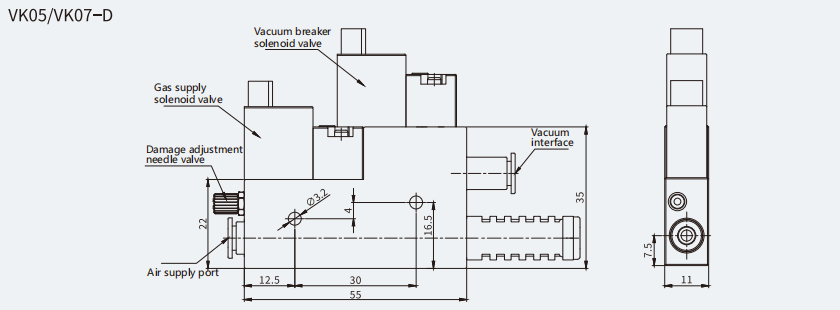

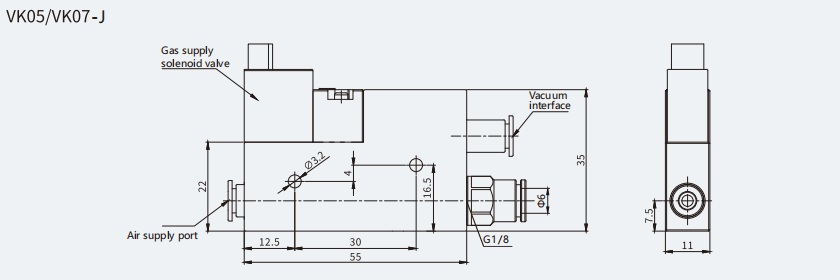

Dimensions
Integrated Vacuum Generator
