Features

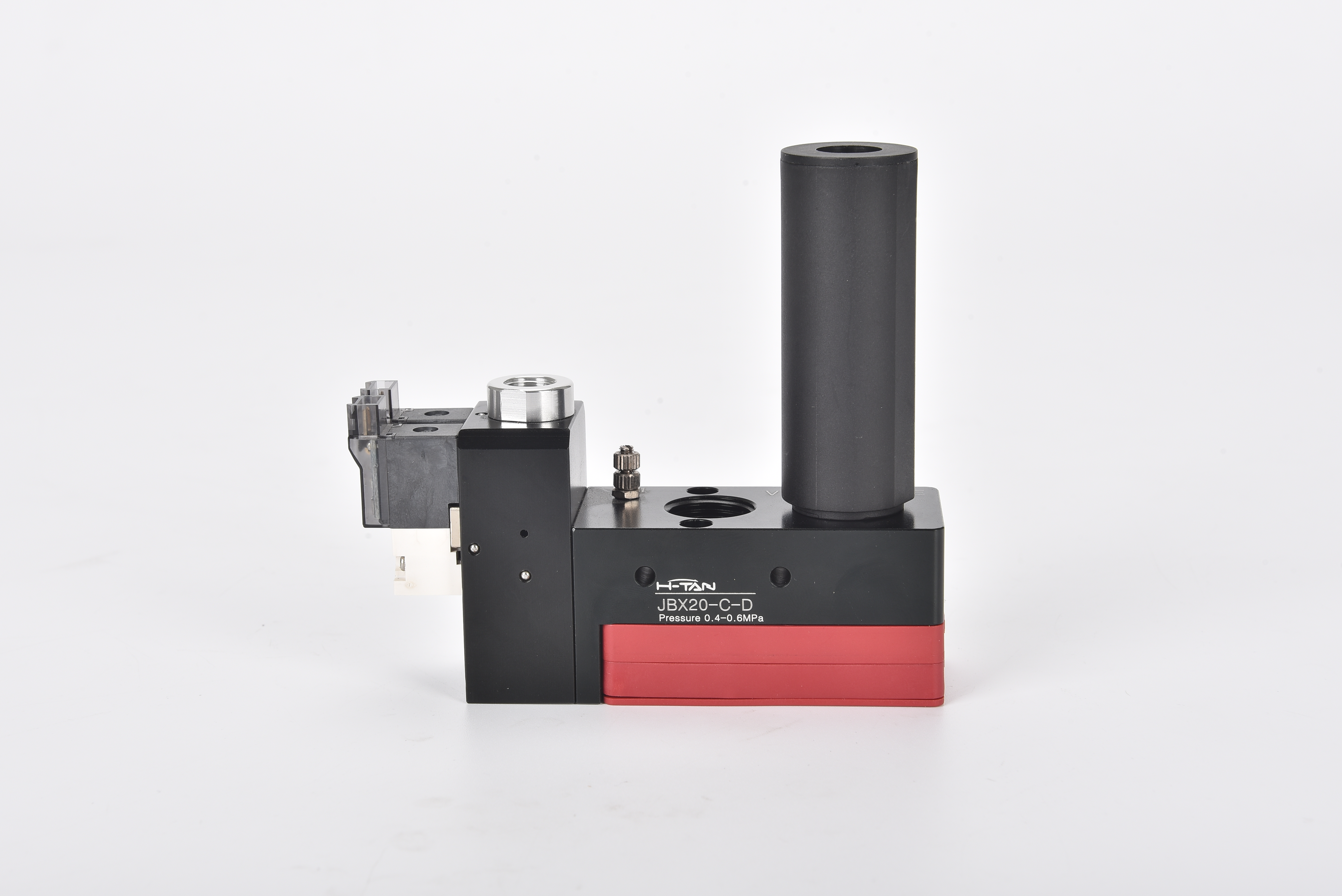

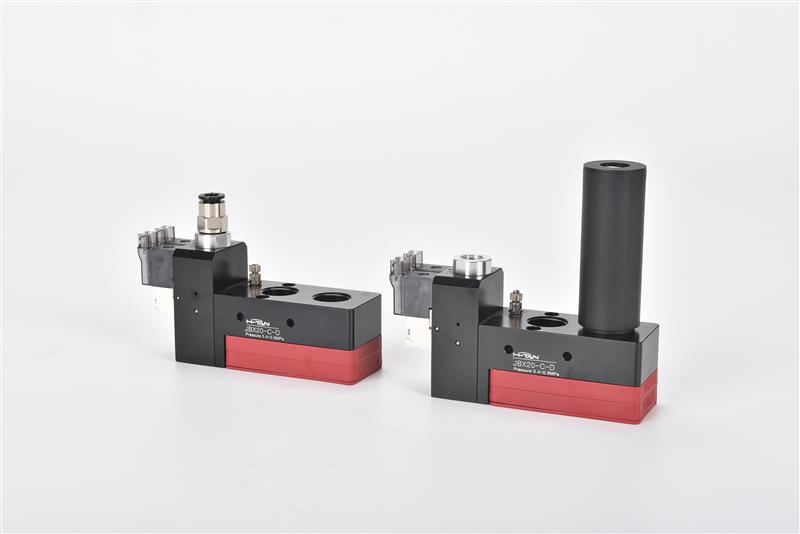

Large Flow Integrated Vacuum Generator
●Energy-efficient nozzle design
●Integrated with control valve, vacuum gauge, and regulating valve
●Modular design
Selection Guide
JBM/BX SERIES INTEGRATED VACUUM GENERATOR
JBM 10 -C -D -□ -□
① ② ③ ④ ⑤ ⑥
| ① Series | ② Specifications | ③ Silencer | ④ Control device | ⑤ Power connection | ⑥ Switch mode |
| JBM - Universal type（-85kPa） | 10 |
B - Built in silencer | / - Default,with supply valve | Default - Without control device | / - Default,NC |
| JBX - High vacuum level type（-92kPa） | 20 | C - External silencer | D - With supply and damage valve | RE - RE supply valve | NO - NO |
Technical parameters
| Model | Air supply pressure range bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Recommended hose dia. mm Air supply port P |
Recommended hose dia. mm Vacuum port V |
| JBM10 | 4.5~6.0 | 85 | 72~76 | 24~36 | φ6 | φ8 |
| JBM20 | 4.5~6.0 | 85 | 144~152 | 48~72 | φ8 | φ12 |
| Model | Air supply pressure range bar |
Max. vacuum level -kPa |
Max. vacuum flow NL/min |
Air consumption NL/min |
Recommended hose dia. mm Air supply port P |
Recommended hose dia. mm Vacuum port V |
| JBX10 | 4.5~6.0 | 92 | 60~64 | 36~42 | φ6 | φ8 |
| JBX20 | 4.5~6.0 | 92 | 120~128 | 72~84 | φ8 | φ12 |
Specific
MINI VACUUM GENERATOR
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| JBM10 | 4.5 |
24 | 72 | 42 | 27 | 23 | 20 | 16 | 11 | 5 | 1.3 | - | 85 |
| JBM20 | 48 | 144 | 72 | 50 | 44 | 38 | 32 | 20 | 11 | 3 | - | ||
| JBM10 | 6 |
36 | 76 | 52 | 31 | 28 | 20 | 16 | 12 | 4.8 | 1.32 | - | |
| JBM20 | 72 | 152 | 99 | 62 | 54 | 40 | 32 | 22 | 10.5 | 2.7 | - |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| JBM10 | 4.5 |
24 | - | 0.08 | 0.2 | 0.44 | 0.8 | 1.24 | 1.8 | 2.55 | 3.8 | - | 85 |
| JBM20 | 48 | - | 0.04 | 0.12 | 0.23 | 0.41 | 0.65 | 0.93 | 1.33 | 2.03 | - | ||
| JBM10 | 6 |
36 | - | 0.11 | 0.28 | 0.5 | 0.8 | 1.18 | 1.72 | 2.63 | 5.16 | - | |
| JBM20 | 72 | - | 0.05 | 0.14 | 0.25 | 0.4 | 0.59 | 0.86 | 1.31 | 2.58 | - |
●Vacuum flow(NL/min) at different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| JBX10 | 4.5 | 36 | 60 | 31 | 20 | 18 | 17 | 13 | 11 | 7 | 2.5 | 1.5 | 92 |
| JBX20 | 72 | 120 | 62 | 38 | 32 | 30 | 22 | 14 | 12 | 8 | 3 | ||
| JBX10 | 6 | 42 | 64 | 36 | 18 | 16 | 14 | 11 | 9 | 6 | 2.4 | 0.9 | |
| JBX20 | 84 | 128 | 72 | 35 | 32 | 27 | 22 | 18 | 12 | 4.8 | 1.8 |
●Evacuation time(s/L) to reach different vacuum levels(-kPa)
| Model | Air supply pressure bar |
Air consumption NL/min |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level -kPa |
| JBX10 | 4.5 | 36 | - | 0.11 | 0.3 | 0.65 | 1.1 | 1.55 | 2.15 | 2.85 | 4.7 | 10.2 | 92 |
| JBX20 | 72 | - | 0.09 | 0.16 | 0.32 | 0.55 | 0.8 | 1.5 | 1.8 | 2.7 | 5 | ||
| JBX10 | 6 | 42 | - | 0.13 | 0.4 | 0.76 | 1.2 | 1.78 | 2.45 | 3.44 | 5.08 | 9.6 | |
| JBX20 | 84 | - | 0.06 | 0.2 | 0.38 | 0.6 | 0.89 | 1.23 | 1.72 | 2.54 | 4.8 |

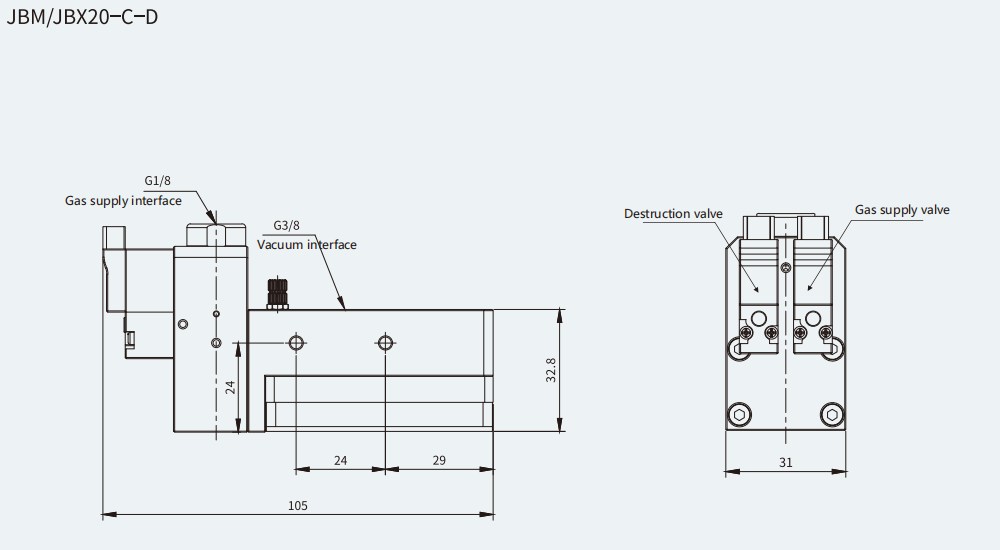

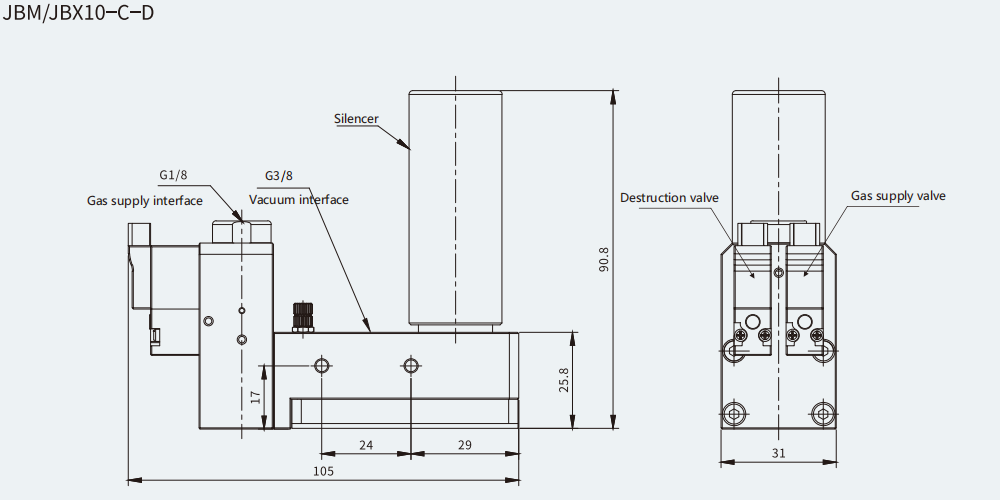

Dimensions
Large Flow Integrated Vacuum Generator
