Features

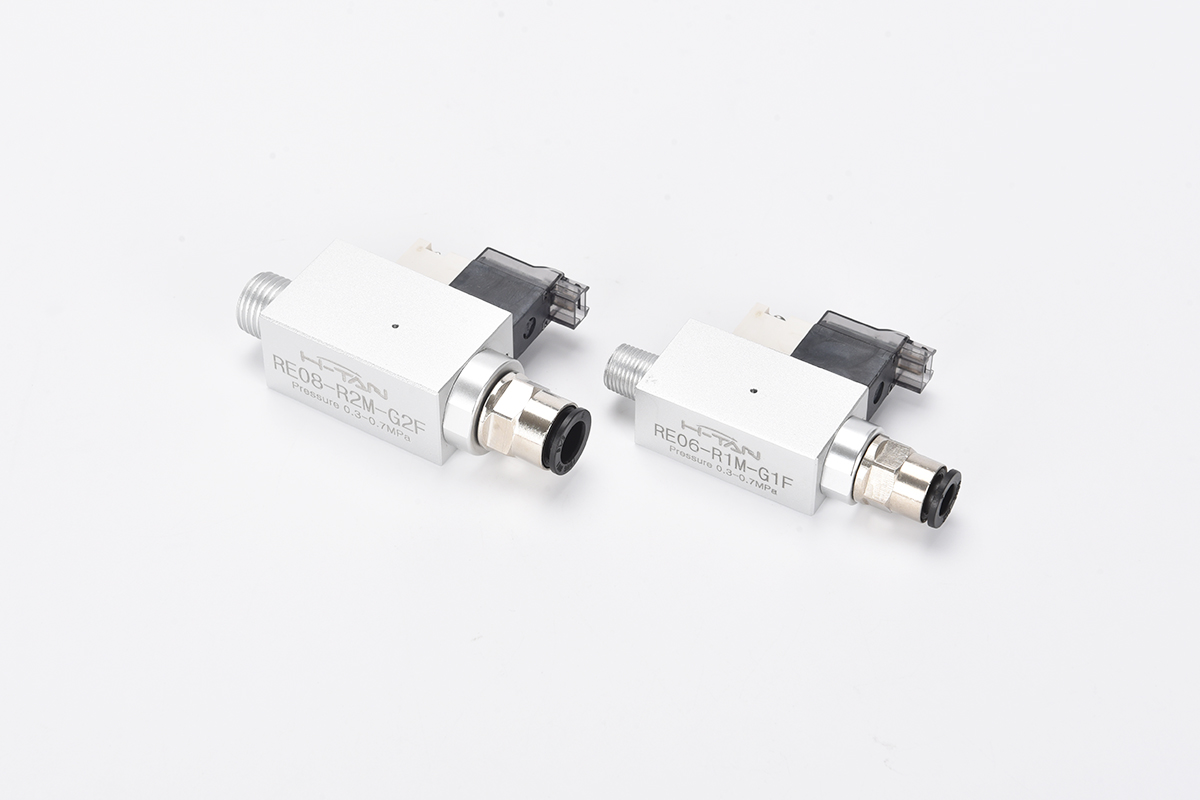

Electric Control Valve
●The small valve(normally closed)can realize remote control of high flow compressed air and can supply compressed air when the current is switched
●It can be directly installed at the air supply port of the vacuum generator
●Avoid complex pipelines
●Multiple flow rates are optional
Selection Guide
RE Series Vacuum Accessories
RE 06 -R1M G1F -□ -□
① ② ③ ④ ⑥ ⑦
RET 08 G1F -08 -□ -□
① ② ④ ⑤ ⑥ ⑦
| ① Series | ② Specification | ③ Exhaust port | ④ Air supply port | ⑤ One-touch fitting | ⑥ Connection direction | ⑦ Output function |
| RE RET |
06 |
R1M - Rc1/8 male thread | G1F - G1/8 female thread | 08 - φ8mm | / - Default,Lateral(M) | / - Default,normally closed(NC) |
| 08 | R2M - Rc1/4 male thread | G2F - G1/4 frmale thread | 10 - φ10mm | Z - Vertical(L) |
NO - Normally open(NO) |
|
| 10 | R3M - Rc3/8 male thread | G3F - G3/8 female thread |
Technical parameters
| Item | parameter | Item | parameter |
|
Working medium |
Filtered compressed air |
Operating voltage | DC24V |
|
Air supply pressure |
3.5~7bar |
Action Frequency |
5 times/s |
| Starting pressure | ≥3.0bar | Power | 0.7w |
| Operating temperature | 0~60℃ | Connection form | L. M-type port plugging and unplugging |
|
Body material |
Aluminum Alloy |
Protection Level | IP50 |

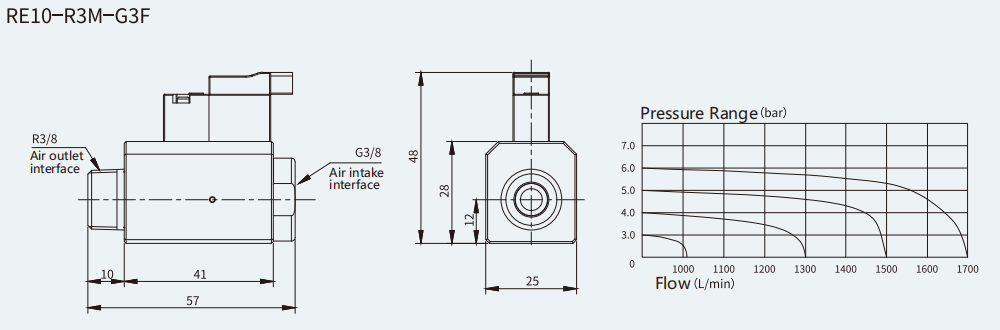

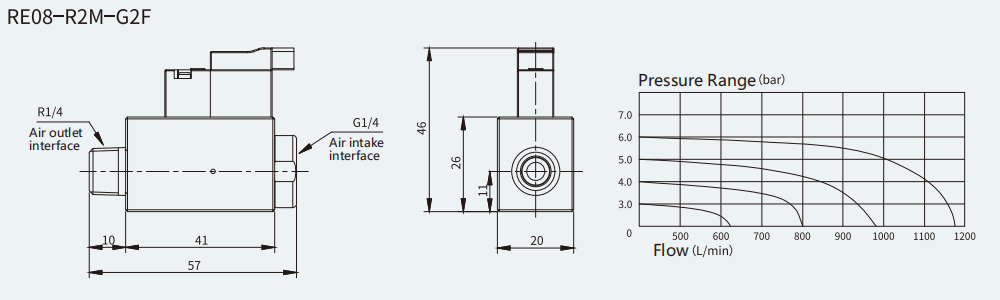

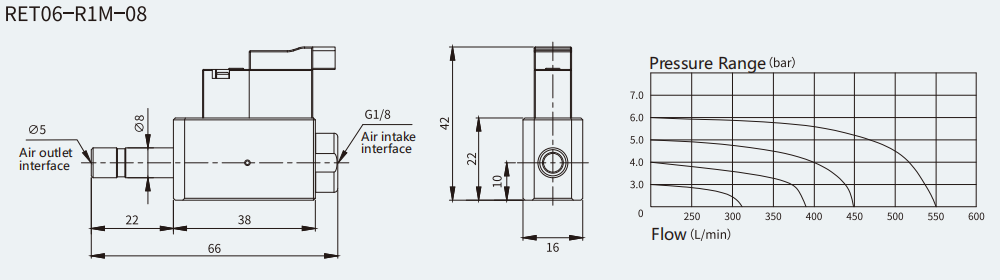

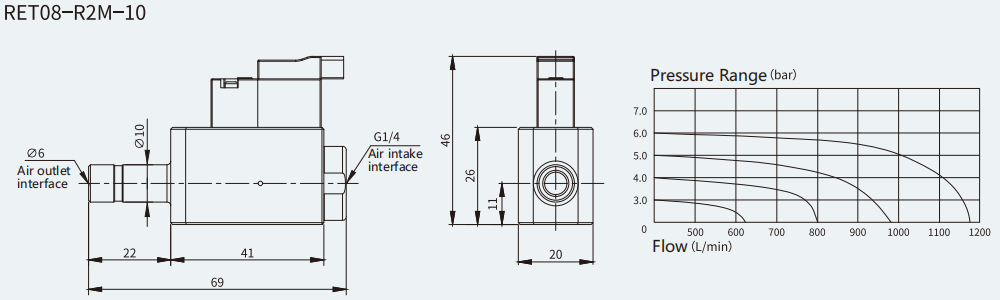

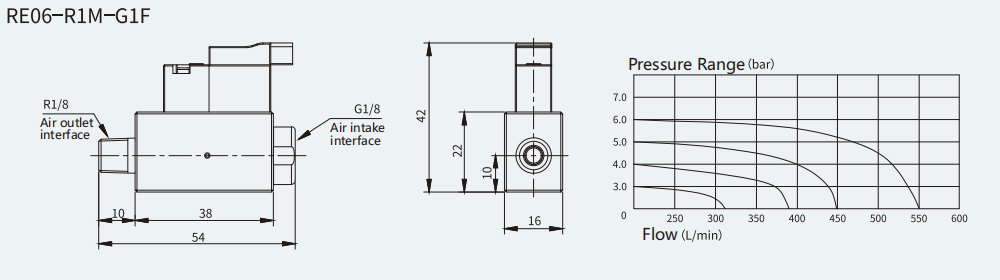

Dimensions
Electric Control Valve
