Features

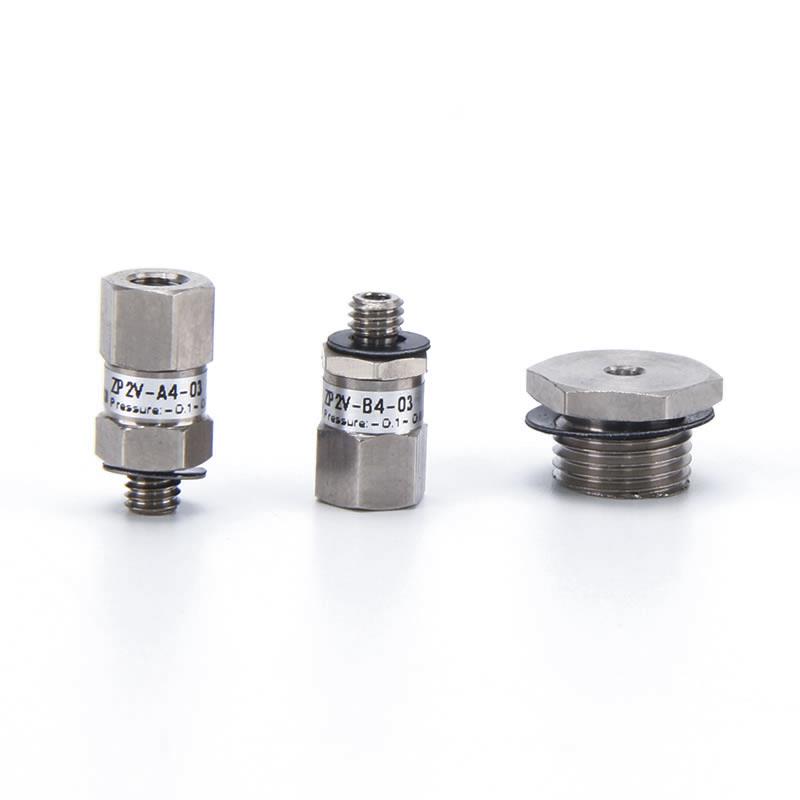

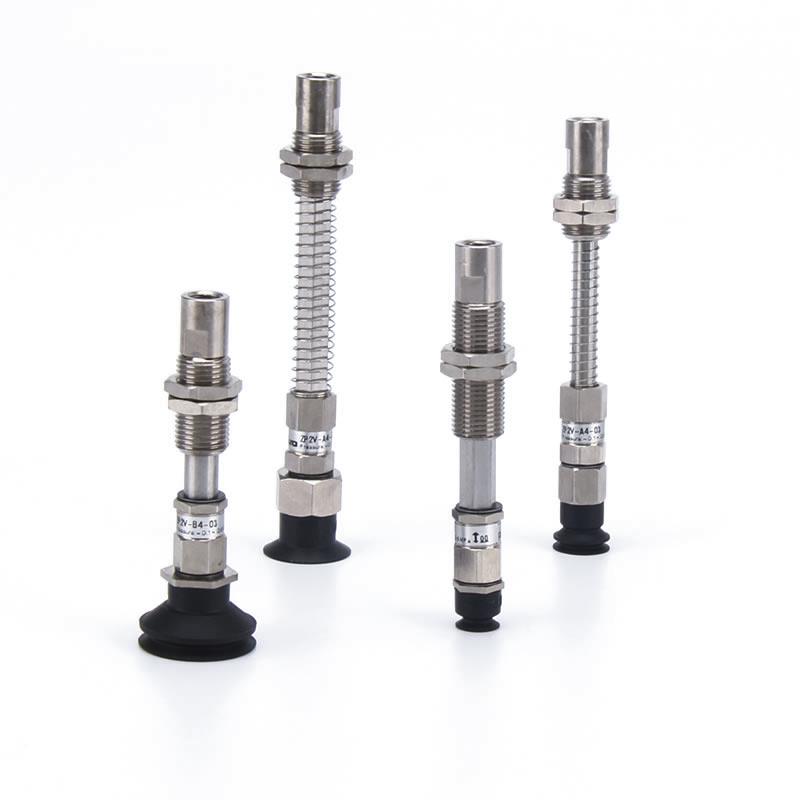

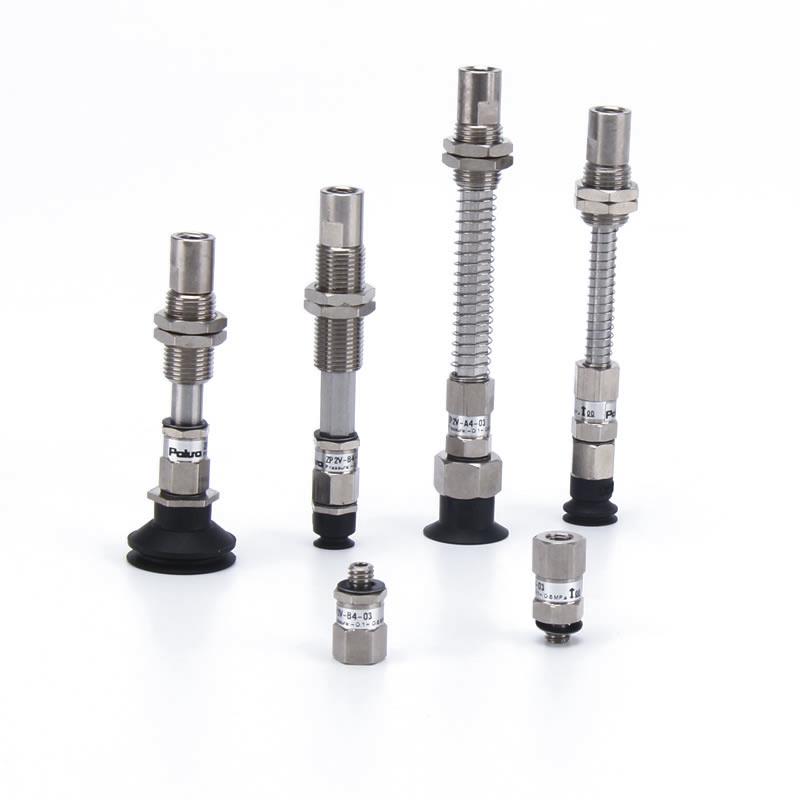

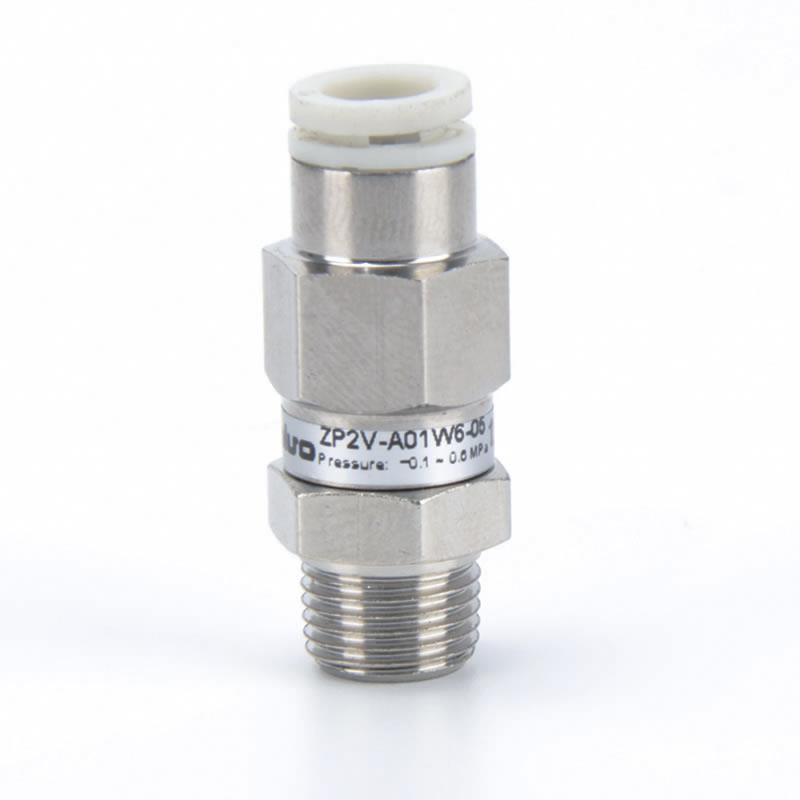

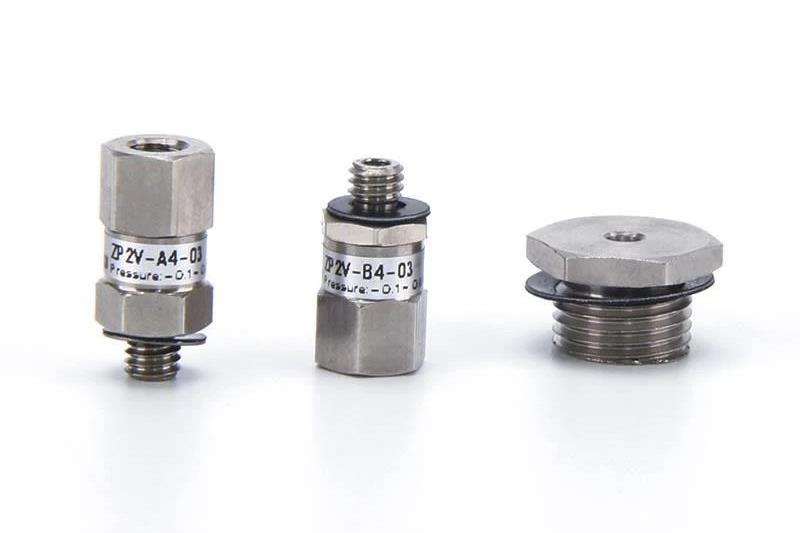

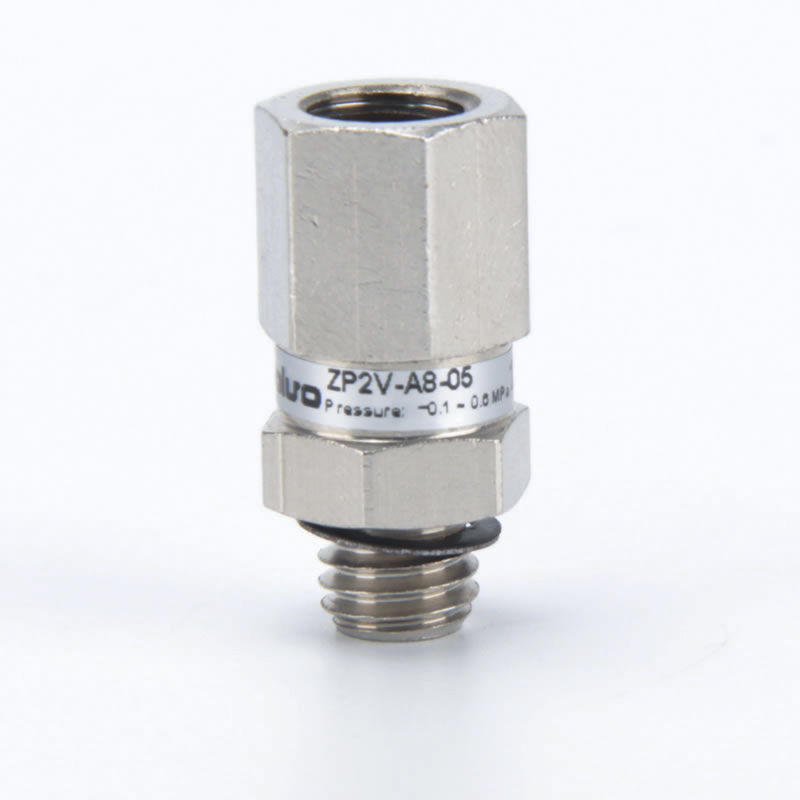

HZP2V Series Vacuum Accessories
●Effectively avoid the influence on the whole vacuum system when the suction cup failed to adsorb the workpiece
●In the same vacuum system, workpieces of different sizes can be repeatedly grasped
●Spring type check valve helps to prevent the workpiece from dropping in turnover movement
Selection Guide
HZP2V Series Vacuum Accessories
HZP2V -A5 -03
① ② ③
| ① Series | ② Aperture diameter mm |
③ Overflow port diameter | |||
| HZP2V |
Model | Thread size | Model | Thread size | 03 - φ0.3mm |
| A4 | M4×0.7 | B5 | M5×0.8 | 05 - φ0.5mm | |
| A5 | M5×0.8 | B6 | M6×1.0 | 07 - φ0.7mm | |
| A8 | M8×1.25 | B01 | R1/8 | 10 - φ1.0mm | |
| A01 | R1/8 | BG1 | G1/8 | ||
| AG1 | G1/8 | B5B5 | M5×0.8 | ||
| A5A5 | M5×0.8 | B01B01 | R1/8 | ||
| A01A01 | R1/8 | BG1BG1 | G1/8 | ||
| AG1AG1 | G1/8 | B5W4 | M5×0.8,φ4 | ||
| A5W4 | M5×0.8,φ4 | B01W6 | R1/8,φ6 | ||
| A01W6 | R1/8,φ6 | BG1W6 | G1/8,φ6 | ||
| AG1W6 | G1/8,φ6 | A4 | M4×0.7 | ||
| W4 | φ4 | B4 | M4×0.7 | ||
| W6 | φ6 | G1 | G1/8 | ||
Technical parameters
| Size of suction cup side connection | M4/M5/M6/φ4 |
M8,R1/8,Rc1/8,G1/8,φ4 | ||||
|
Overflow port diameter |
0.3mm |
0.5mm |
0.7mm |
0.5mm |
0.7mm |
1.0mm |
|
Working medium |
Filtered compressed air | |||||
|
Max. operating pressure range |
0~7.0bar | |||||
|
Max. Vacuum level range |
-100~0kPa | |||||
|
Operating temperature |
5~60℃(Non-frozen) |
|||||
|
Filtering accuracy |
40μm |
|||||
|
Min. operating flow rate |
3NL/min |
5NL/min |
8NL/min |
5NL/min |
8NL/min | 16NL/min |

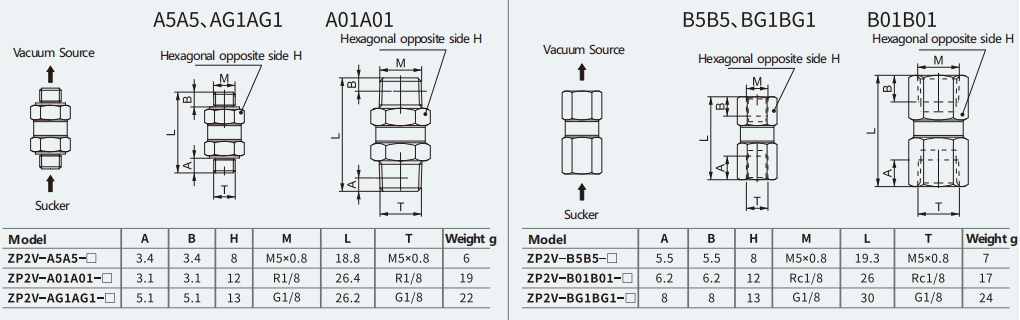

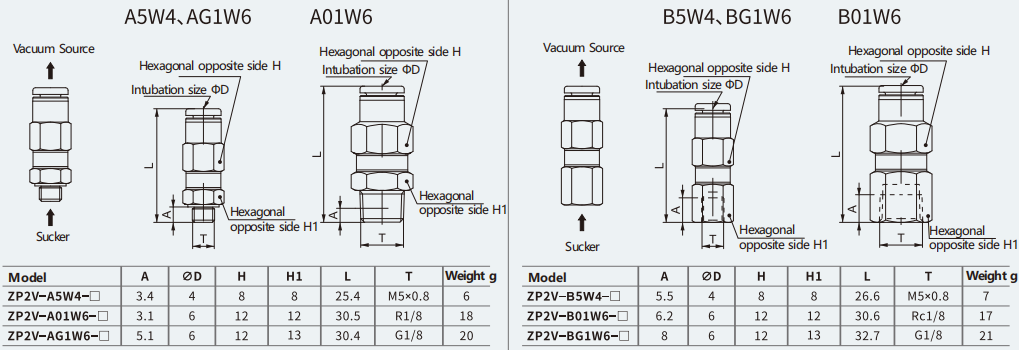

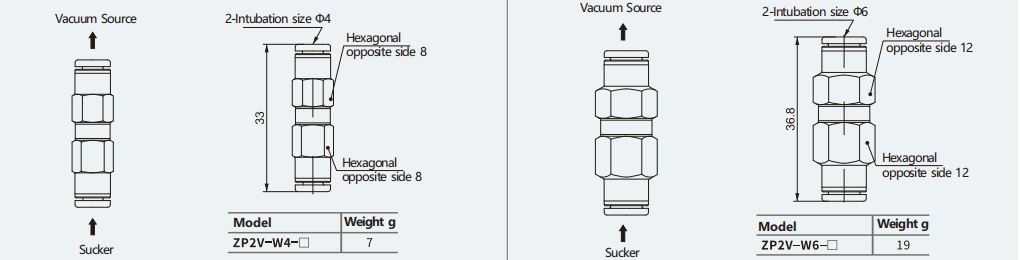

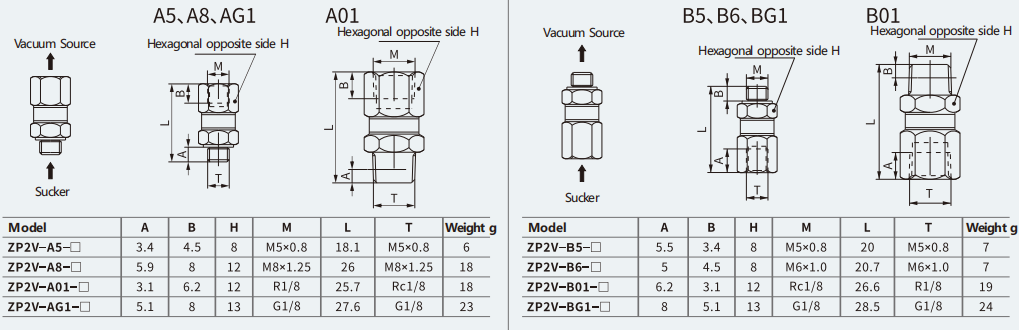

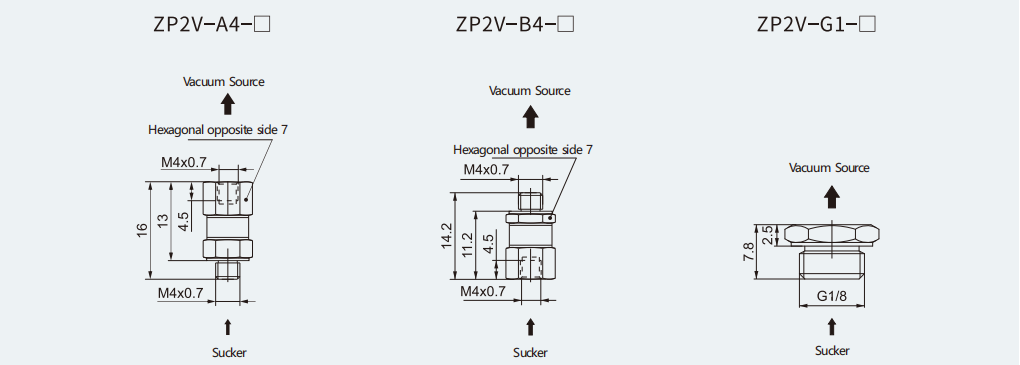

Dimensions
Check Valve
