Features

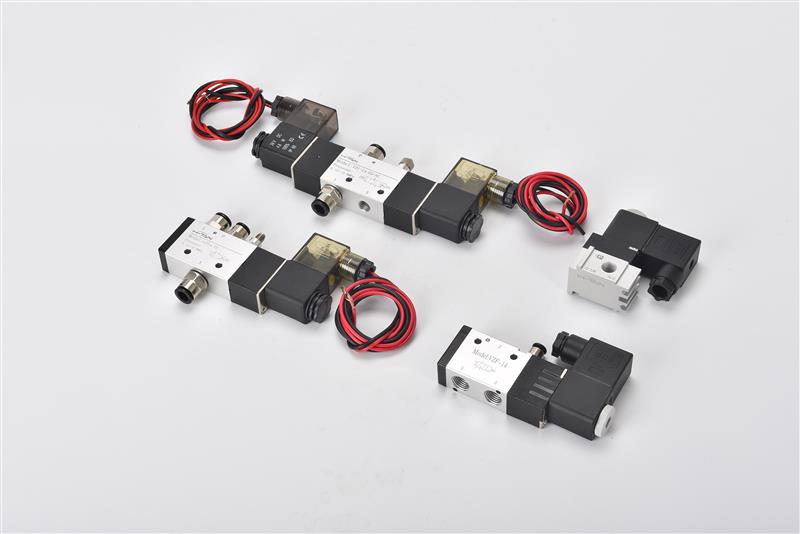

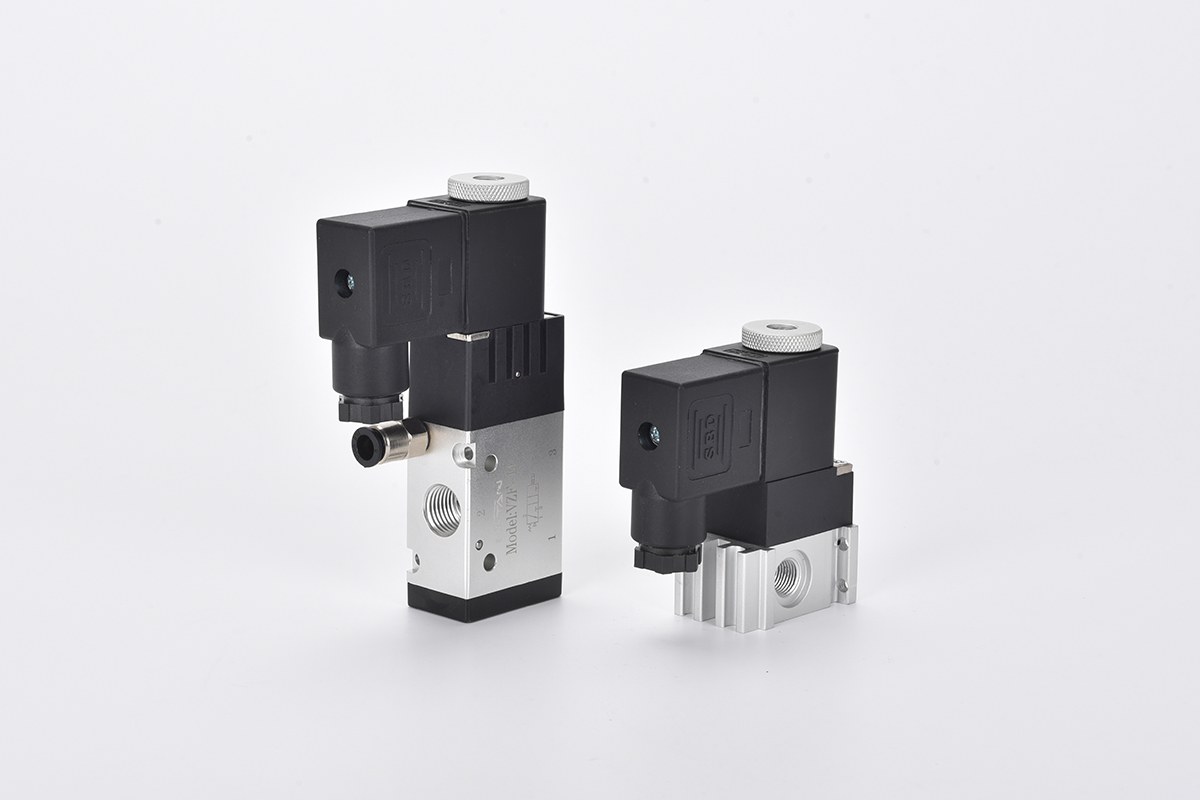

Electric Control Valve
●Converts vacuum signal into a electric signal
●Different vacuum ranges are set by adjusting the vacuum switch on the valve
●Short reaction time and high action frequency
Selection Guide
VZF Series Vacuum Accessories
VZF 14 -ED -□
VZF 18
① ② ③ ④
| ① Series | ② Connection specifications | ③ Control device | ④ Output function |
| VZF |
18 - G1/8 female thread | / | / |
| 14 - G1/4 female thread |
/ - Default,standard | / - Default,NC | |
| VD - Vacuum breaking valve | NO - Normally open | ||
| VF - Vacuum breaking valve | / - Default,NC | ||
| ED - Air supply disruption valve | NO - Normally open | ||
| 38 - G3/8 female thread |
/ - Default,standard | ||
| VD - Vacuum breaking valve | |||
| VF - Vacuum breaking valve |
Technical parameters
| Item | parameter | Item | parameter |
|
Working medium |
Filtered compressed air |
Operating voltage | DC24V±10% |
|
Air supply pressure |
1.5~8.0bar |
Action Frequency |
5 times/s |
| Starting pressure | ≥1.5bar | Power | 3~4.8w |
| Operating temperature | -20~70℃ | Connection form | Outgoing type |
|
Body material |
Aluminum Alloy |
Protection Level | IP65 |
|
Manner of execution |
Pilot-operated type |
Lubrication |
Non-required |

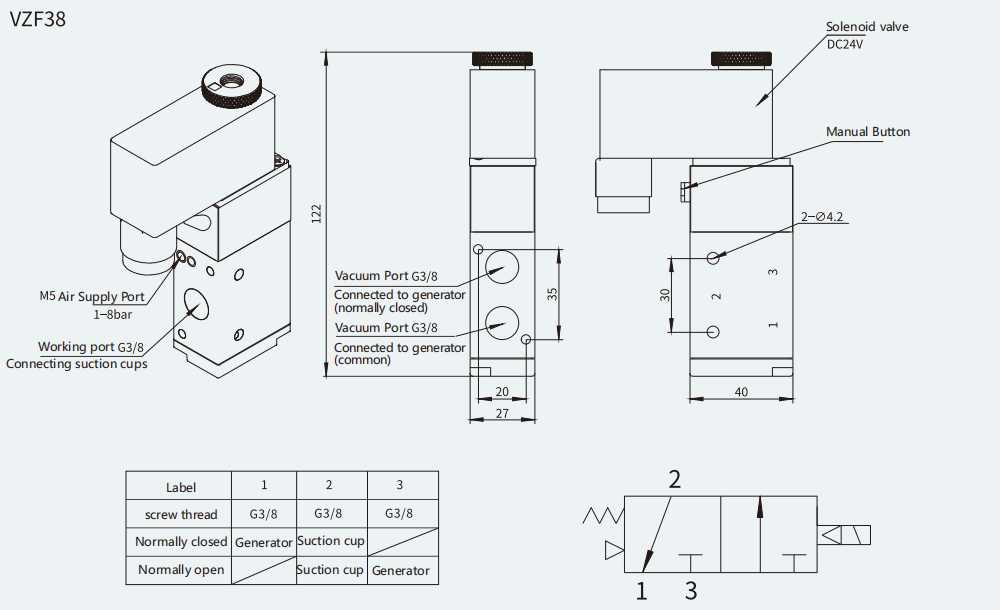

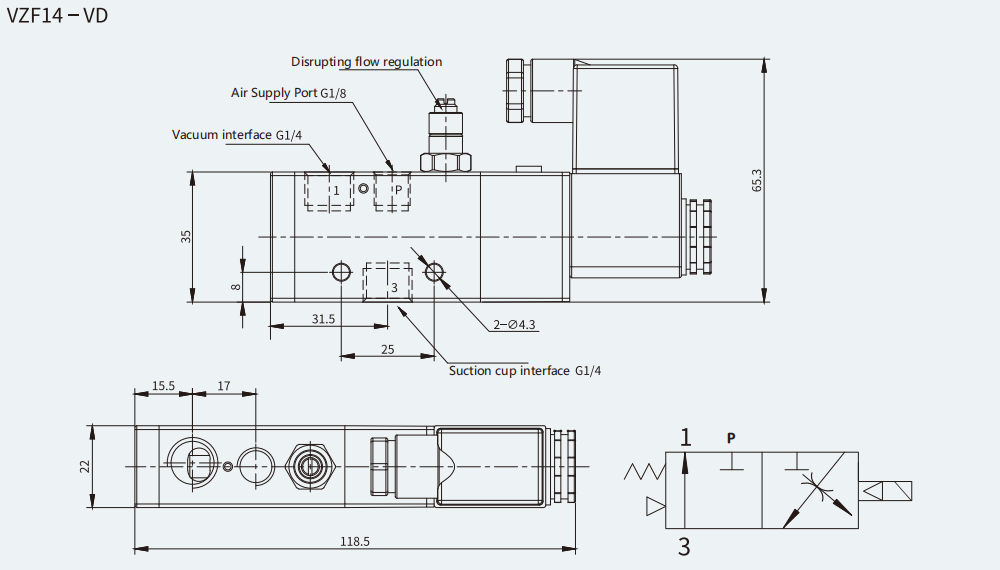

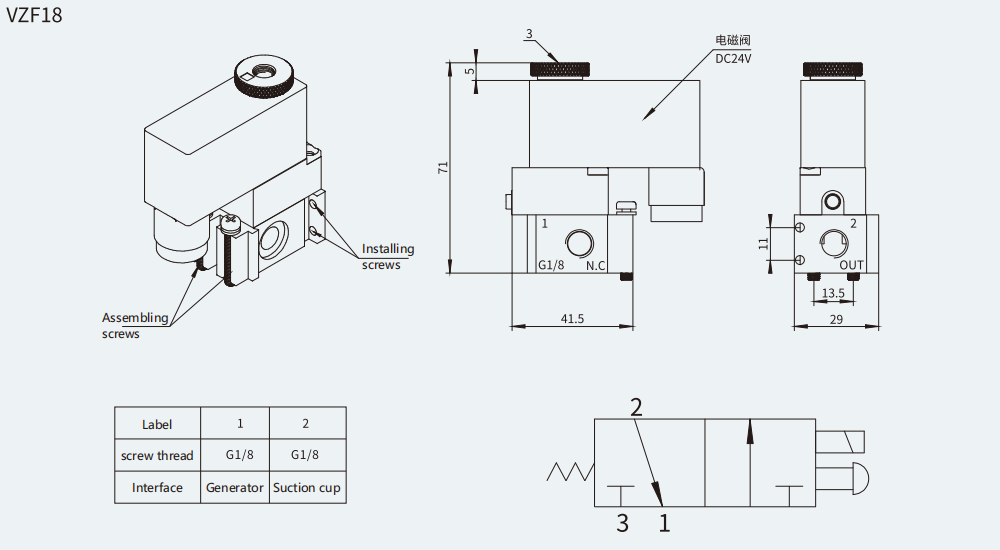

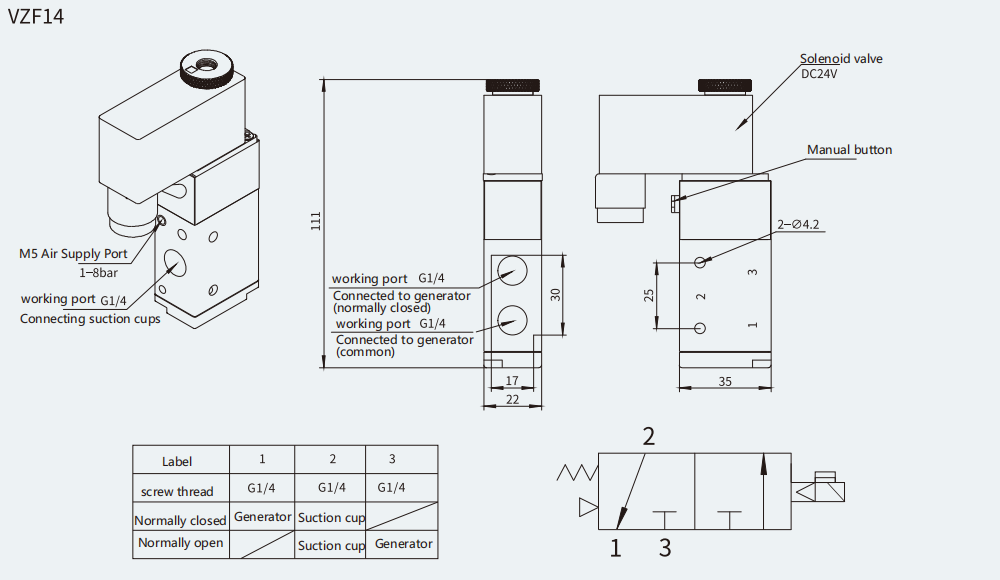

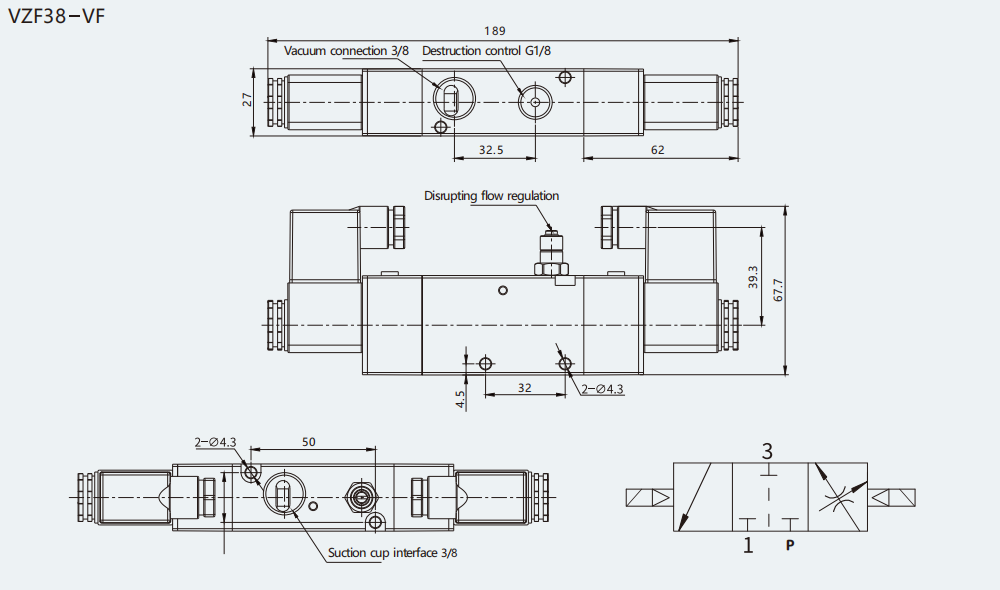

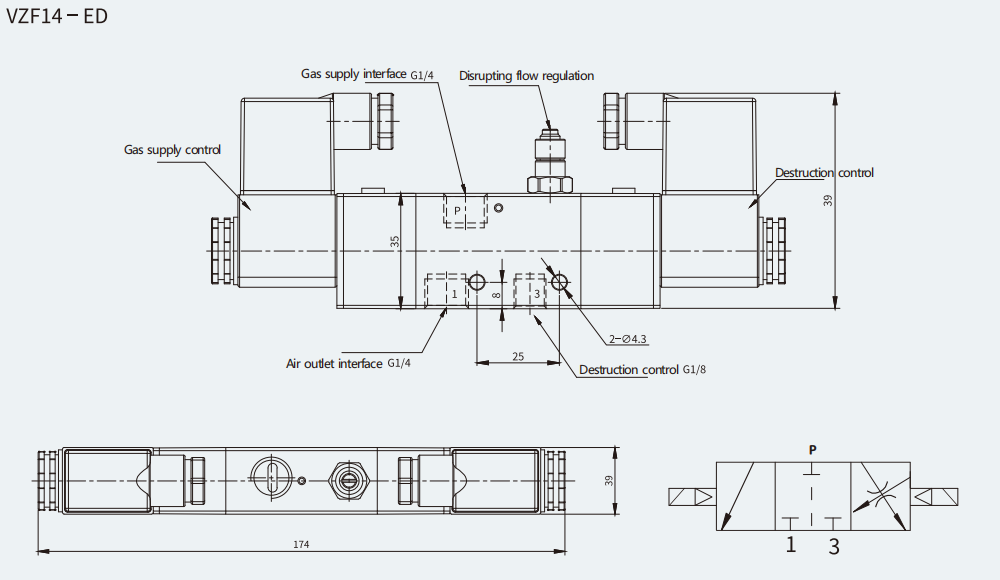

Dimensions
Electric Control Valve
