Features

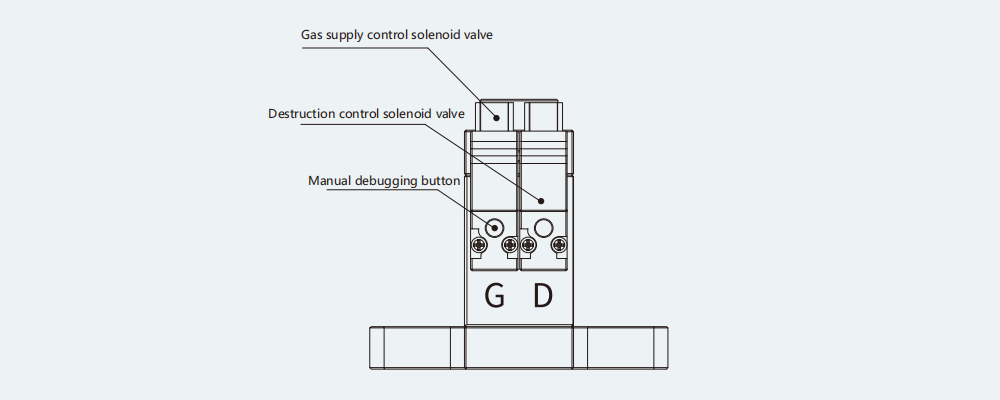

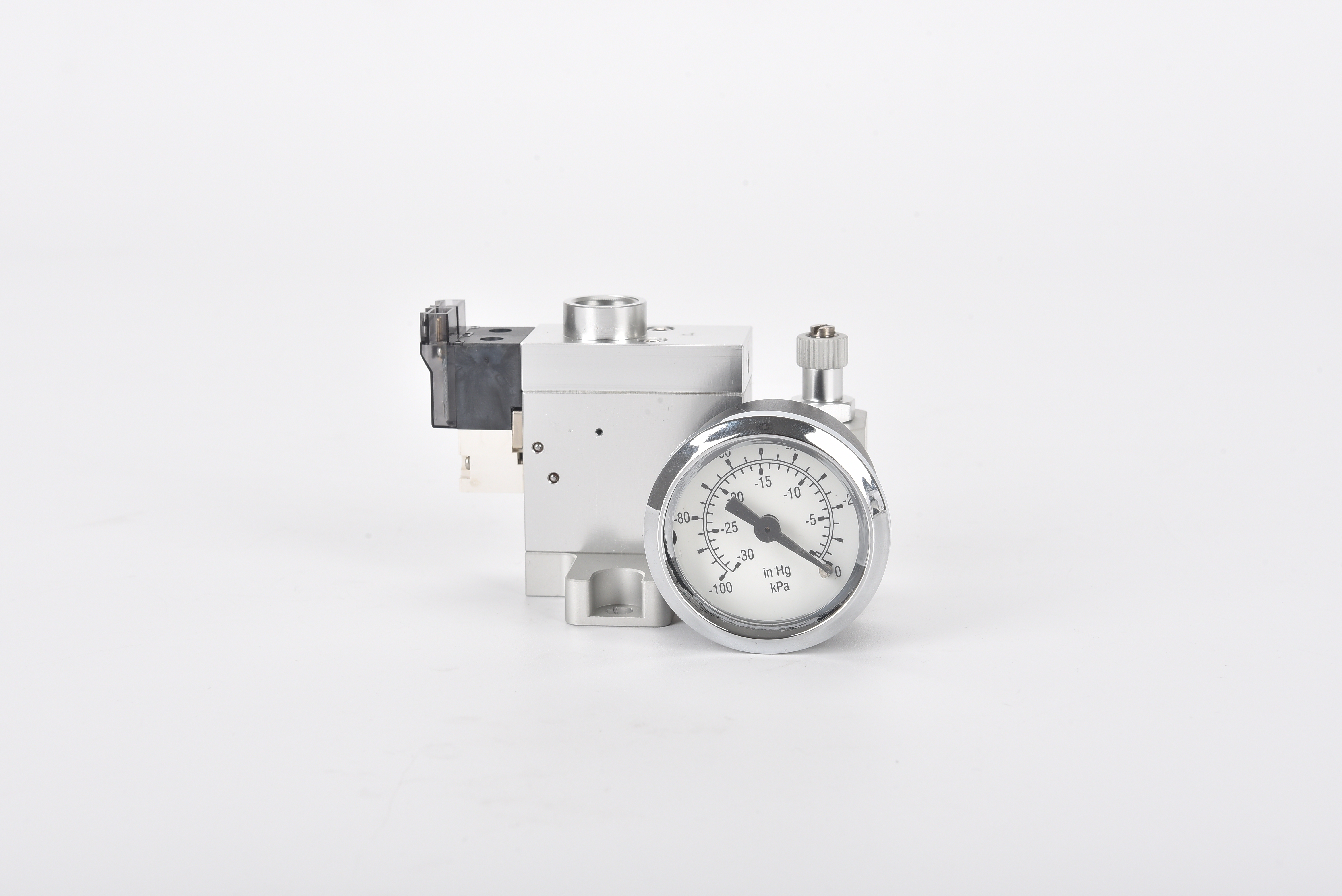

Electric Control Valve
●Converts vacuum signal into a electric signal
●Different vacuum ranges are set by adjusting the vacuum switch on the valve
●Multiple comparison modes
Selection Guide
ED Series Vacuum Accessories
ED 02 -V
① ② ③
| ① Series | ② Air supplu port | ③ Vacuum port |
| ED |
02 - G1/4 female thread | V - G1/8 female thread |
| EK - G1/8 female thread(Energy-saving type) |
Technical parameters
| Item | parameter | Item | parameter |
|
Working medium |
Filtered compressed air |
Operating voltage | DC24V |
|
Air supply pressure |
1.5~7bar |
Action Frequency |
5 times/s |
| Starting pressure | ≥1.5bar | Power | 1w |
| Operating temperature | 0~60℃ | Connection form | M-type port plugging and unplugging |
|
Body material |
Aluminum Alloy |
Protection Level | IP50 |

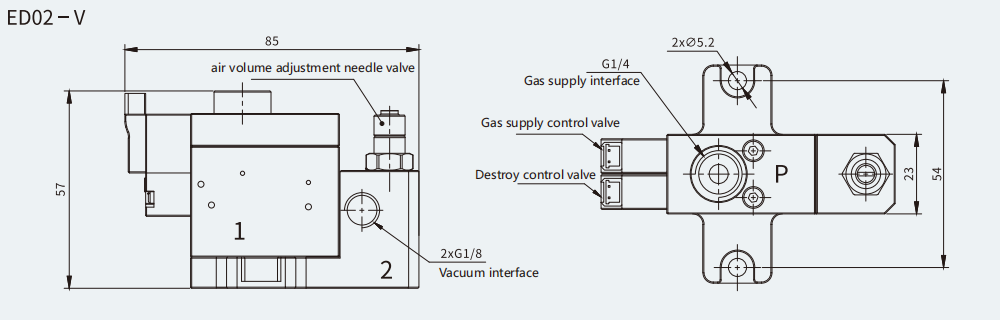

Dimensions
Electric Control Valve
